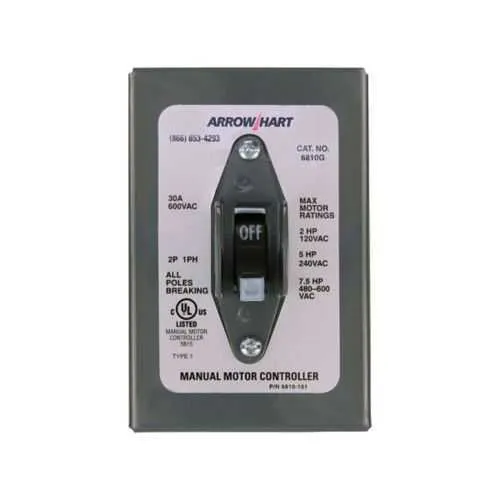

Eaton AH6810G Manual Motor Controller - cULus Listed
Part Number: AH6810G
Quick Summary
The Eaton AH6810G manual motor controller is a compact, front-wired device designed to switch and maintain motor operation for two-pole, single-phase machines in industrial environments. This solves the common panel-wiring headache by providing a robust, ready-to-install solution that reduces wiring errors and field labor. With cULus Listed certification and NAFTA/RoHS compliance, it meets safety and cross-border requirements while supporting global sourcing. The enclosure is NEMA 1 stainless steel, offering durable protection in indoor factory settings, and its 30A, 600V rating covers a wide range of small to mid-size motors. For procurement teams, this unit delivers increased reliability, easier maintenance, and a clear path to compliant, cost-effective motor control in wall-mounted applications.
Product Information
Extended Description
AH6810G Eaton: Eaton manual motor controller, #14-10 AWG, 30A, Industrial, Wall, 600V, Front wired, Maintained contact, Gray, NEMA 1, Enclosure: SS, Two-pole, -20-65ËšC, Single-phase, Toggle, Copper-alloy terminal, brass screw, Single-throw
Product Name
Eaton manual motor controller
Catalog Number
AH6810G
UPC
040893616841
Product Length/Depth
3.75 in
Product Height
2.38 in
Product Width
2.38 in
Product Weight
1.5 lb
Compliances
NAFTA RoHS Compliant
Certifications
cULus Listed
Enclosure
NEMA 1
Special features
With NEMA 1 enclosure
Type
Manual motor controller
Amperage Rating
30A
Voltage rating
600 V
Number Of Poles
Two-pole
Phase
Single-phase
Enclosure material
Stainless steel
Application
Industrial
Device grade
Industrial
Wiring method
Front wired screw
Contact type
Maintained
NEMA Rating
1
Switch type
Toggle switch
Mounting method
Wall
Closure type
Maintained
Number of positions
2
Allowable wire size
#14-10 AWG
Operating temperature
-20 to 65 °C
Material
Glass-filled nylon
Termination style
Front screw
Throw
Single-throw
Terminals
Copper-alloy, brass screw
Color
Gray
Feature → Business Impact → Application: Front wired screw terminations with copper-alloy hardware reduce field wiring time and potential miswiring, translating to shorter installation cycles and lower labor costs on new panels or retrofits. This directly benefits equipment builders and maintenance teams working on high-availability lines where downtime costs are critical; use it in wall-mounted control stations for conveyors or pumps in manufacturing settings. Feature → Business Impact → Application: Two-pole, single-phase design with a 30A rating and a 600V maximum allows reliable motor control for standard industrial motors, improving protection against accidental start/stop and extending motor life when used with appropriate interlocks; ideal for machine tools and processing equipment in light-to-medium load scenarios. Feature → Business Impact → Application: NEMA 1 enclosure in stainless steel provides rugged indoor protection against dust and handling, enhancing longevity in factory environments; leverage this in panel-mounted panels and switchgear enclosures where environmental exposure is limited but durability is essential. Feature → Business Impact → Application: Front wiring and 2-position toggle operation simplify installation and manual operation, reducing maintenance time and enabling quick manual override in emergency or setup procedures; suitable for new builds and panel upgrades in packaging lines and material handling stations. Feature → Business Impact → Application: Compliance with NAFTA RoHS and cULus listing lowers regulatory and supplier risk while enabling easier cross-border procurement; use this unit to streamline supply chain for multinational facilities and to qualify for certified safety programs in automotive, food processing, or pharma equipment. Feature → Business Impact → Application: Lightweight, compact form factor (3.75 in / 2.38 in footprint, 1.5 lb) supports flexible mounting options and space-constrained panels, aiding engineers to fit into tight control cabinets across various industrial processes.
Get a Quick Quote for a Eaton AH6810G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH6810G?
Enquire Now
FAQs
Install AH6810G in a wall-mounted enclosure with a NEMA 1 rating in an indoor, dry environment. Use front-wired screw terminations compatible with #14-10 AWG conductors; ensure ambient temperature is within -20 to 65 °C and secure the device to a rigid panel to minimize vibration.
AH6810G is a two-pole, single-phase manual motor controller rated for 30A at up to 600V. It is suitable for small to mid-size industrial motors used in machine tools, conveyors, pumps, and other industrial equipment requiring straightforward on/off control with a maintained contact in a wall-mounted configuration.
The AH6810G is cULus Listed and compliant with NAFTA RoHS. This combination supports electrical safety certification, cross-border manufacturing/regulatory requirements, and environmental compliance for modern industrial installations.
With a maintained contact design, copper-alloy terminals, and a robust stainless steel NEMA 1 enclosure, AH6810G provides durable operation and safer, predictable switching. Front wiring reduces wiring errors and allows clean, serviceable terminations in crowded control panels.
Expected ROI comes from reduced downtime due to reliable maintained contacts, faster installation thanks to front wiring, and lower regulatory risk due to cULus NAFTA/RoHS compliance. The compact form factor also saves panel space, enabling more efficient control cabinet designs.
