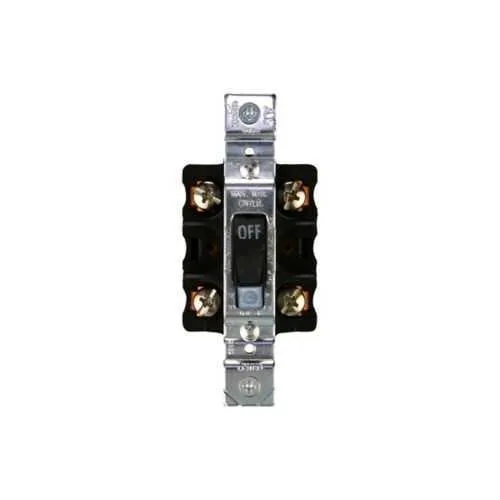

Eaton manual motor controller AH6810U - cULus Listed
Part Number: AH6810U
Quick Summary
Eaton manual motor controller provides reliable control for single-phase industrial motors in panel applications. Operators often struggle with compact, front-wired solutions that are easy to install and maintain in harsh environments. This model is cULus Listed, RoHS Compliant, and NAFTA compliant, aligning with quality and cross-border regulatory requirements. Designed for panel mounting with front wiring, it helps reduce wiring errors and downtime, while supporting 600 V systems and 30 A loads. For teams seeking dependable, easy-to-service motor control in industrial settings, the AH6810U offers a practical balance of performance, compliance, and lifecycle value.
Product Information
Extended Description
AH6810U Eaton: Eaton manual motor controller, Switch only, #14-10 AWG, 30A, Industrial, Panel, 600V, Front wired, Maintained contact, Black, Open, Two-pole, -20-65˚C, Single-phase, Toggle switch, Copper-alloy terminal, brass screw, Single-throw, Nylon
Product Name
Eaton manual motor controller
Catalog Number
AH6810U
UPC
040893616858
Product Length/Depth
3.75 in
Product Height
2.38 in
Product Width
2.38 in
Product Weight
0.35 lb
Compliances
NAFTA RoHS Compliant
Certifications
cULus Listed
Enclosure
Open
Special features
Switch only
Type
Manual motor controller
Amperage Rating
30A
Voltage rating
600 V
Number Of Poles
Two-pole
Phase
Single-phase
Application
Industrial
Device grade
Industrial
Wiring method
Front wired screw
Contact type
Maintained
Switch type
Toggle switch
Mounting method
Panel
Closure type
Maintained
Number of positions
2
Allowable wire size
#14-10 AWG
Operating temperature
-20 to 65 °C
Material
Glass-filled nylon
Termination style
Front screw
Throw
Single-throw
Terminals
Copper-alloy, brass screw
Color
Black
Feature: Front-wired screw termination with a two-pole, single-phase design. Business Impact: Simplifies installation and reduces field wiring errors, leading to faster panel assembly and lower commissioning costs. Application: Ideal for panel-mounted motor control in conveyors and manufacturing lines, where space is limited and wiring clarity matters. Feature: Maintained contact and a toggle switch for reliable on/off control. Business Impact: Ensures predictable switching performance and long-term reliability, reducing downtime during maintenance cycles. Application: Suitable for industrial motors requiring dependable start/stop actions in harsh environments. Feature: 30A amperage rating at 600 V. Business Impact: Supports standard industrial motor loads without overdesign, optimizing energy use and protection coordination. Application: Industrial drive sections, pumps, fans, and small motor assemblies within a 600 V distribution scheme. Feature: Open enclosure with glass-filled nylon construction. Business Impact: Lightweight, durable components that resist rugged shop floor conditions while keeping costs in check. Application: Indoor control panels in machine rooms and assembly areas where weatherproofing is not required. Feature: Copper-alloy terminals and front screw termination for secure wiring. Business Impact: Ensures solid electrical connections and reduced terminal loosening under vibration, improving uptime. Application: Front-access terminations in compact control panels using #14-10 AWG conductors. Industry context and compatibility: The AH6810U aligns with standard industrial practices for single-phase motor control and is compatible with common Eaton motor-control ecosystems, providing a familiar interface for technicians and procurement teams. Expect measurable gains in wiring accuracy, maintenance efficiency, and overall panel reliability when deployed in line-start or disconnect applications.
Get a Quick Quote for a Eaton AH6810U
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH6810U?
Enquire Now
FAQs
Install the AH6810U in a compatible panel by mounting it on a standard DIN rail or panel surface per Eaton guidelines. Use front-wired screw terminals rated for #14-10 AWG conductors, ensuring the wiring is neatly terminated and secured to prevent vibration-induced loosening. Verify a 600 V maximum voltage rating and 30 A load to match motor specifications.
The AH6810U is a two-pole, single-phase controller rated for 30 A and up to 600 V. It features front wiring and maintained contact via a toggle switch, suitable for basic motor switching duties in industrial panels. Plan for indoor use with an open enclosure and ensure compatible wiring and termination hardware are used.
Yes, for indoor panel-based motor control in industrial settings, the AH6810U provides robust performance with a glass-filled nylon body and copper-alloy terminals. While it is open-enclosure, it is designed for harsh shop floors and machine rooms, offering reliable operation with straightforward maintenance.
The AH6810U is cULus Listed and RoHS Compliant, with NAFTA compliance for cross-border use. These certifications ensure electrical safety, environmental compliance, and regional compatibility, helping with regulatory approvals, warranty coverage, and streamlined procurement for multinational facilities.
Maintenance benefits come from its simple front-wire termination, maintained contact design, and rugged copper-alloy terminals, enabling quick field adjustments and secure connections. The open enclosure reduces heat buildup in controlled environments, supporting predictable lifecycle costs, reduced downtime, and easier component replacement when needed.
