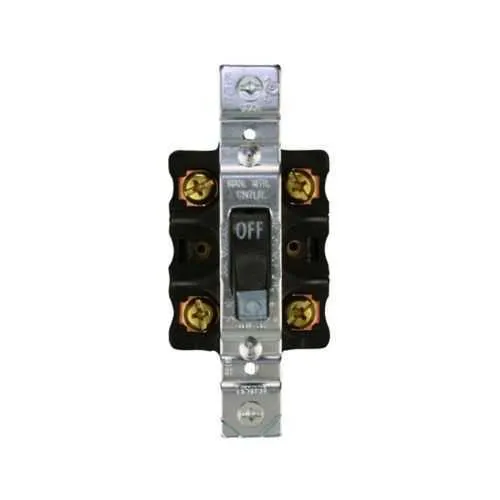

Eaton AH6810U-C Manual motor controller - cULus Listed
Part Number: AH6810U-C
Quick Summary
The Eaton AH6810U-C manual motor controller is a front-wired, two-pole switch designed for panel mounting and single-phase motors up to 600 V in industrial environments. Engineers frequently wrestle with limited access and complex wiring inside control panels; this unit reduces install time with front-wired terminals and a compact footprint. It carries cULus Listed certification and RoHS compliance under NAFTA guidelines, supporting global procurement and regulatory alignment in North American manufacturing. For manufacturers pursuing reliability, quick commissioning, and safer maintenance, the AH6810U-C delivers solid performance in an open enclosure that fits standard 14–10 AWG wiring and 30 A demands.
Product Information
Extended Description
AH6810U-C Eaton: Eaton manual motor controller, Switch only, Canadian version, #14-10 AWG, 30A, Panel, 600V, Front wired, Maintained contact, Black, Open, Two-pole, -20-65˚C, Single-phase, Toggle, Copper-alloy terminal, brass screw, Single-throw, Nylon
Product Name
Eaton manual motor controller
Catalog Number
AH6810U-C
UPC
040893658926
Product Length/Depth
3.75 in
Product Height
2.38 in
Product Width
2.38 in
Product Weight
0.25 lb
Compliances
NAFTA RoHS Compliant
Certifications
cULus Listed
Enclosure
Open
Special features
Switch only, Canadian version
Type
Manual motor controller
Amperage Rating
30A
Voltage rating
600 V
Number Of Poles
Two-pole
Phase
Single-phase
Application
Industrial
Device grade
Industrial
Wiring method
Front wired screw
Contact type
Maintained
Switch type
Toggle switch
Mounting method
Panel
Closure type
Maintained
Number of positions
2
Allowable wire size
#14-10 AWG
Operating temperature
-20 to 65 °C
Material
Glass-filled nylon
Termination style
Front screw
Throw
Single-throw
Terminals
Copper-alloy, brass screw
Color
Black
Front-wired terminals and a two-pole toggle switch simplify panel wiring, reducing installation time and wiring errors in critical control racks. The business impact is faster commissioning and lower field labor costs, especially on high-volume equipment. In practical applications, this arrangement suits panel-mounted control of single-phase motors in conveyors, pumps, and machines. A 30 A amperage rating paired with a 600 V rating provides robust performance for industrial drives. The benefit is consistent motor control with ample safety margin, minimizing the need for additional protection devices and supporting reliable operation in demanding environments. This configuration is well-suited for 2-pole, single-phase circuits across manufacturing lines and processing equipment. Durable construction combines glass-filled nylon with copper-alloy terminals and brass screws to resist vibration and maintain secure terminations. The result is lower maintenance downtime and fewer re-wires during routine service. This construction supports quick field adjustments and dependable long-term operation in busy control panels. The device uses an open enclosure with front screw terminations and a maintained contact design, delivering straightforward access for inspection and servicing. The 3.75 in length, 2.38 in width, 2.38 in height footprint fits standard panel spaces, while compatibility with #14-10 AWG wiring streamlines procurement and installation across diverse industrial sites.
Get a Quick Quote for a Eaton AH6810U-C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH6810U-C?
Enquire Now
FAQs
Yes. AH6810U-C uses front-wired screw terminations designed for #14-10 AWG conductors, enabling straightforward panel wiring and fast installation. Its front-access design supports quick inspection and maintenance in standard industrial control panels, while its two-pole toggle switch provides reliable on/off control for single-phase motors up to 600 V.
Key specs include a 30 A amperage rating, 600 V voltage rating, two-pole configuration, and single-phase operation. The controller is designed for panel mounting with a maintained contact, open enclosure, and a front-wired termination method using copper-alloy terminals with brass screws.
AH6810U-C is ideal for industrial applications requiring simple on/off control of single-phase motors in panels, such as conveyors, fans, pumps, and other line-powered equipment. Its compact dimensions, 3.75 in length and 2.38 in footprint, support tight panel spaces while delivering reliable toggle-switch control in manufacturing environments.
The product is cULus Listed and RoHS compliant under NAFTA guidelines, which helps with North American regulatory compliance and cross-border procurement. These certifications reassure buyers about safety, reliability, and environmental standards, reducing qualification time for supplier audits and new equipment integrations.
Front-wired terminations and a durable nylon body simplify wiring changes and routine servicing, reducing downtime during maintenance. The combination of quick wiring access, robust construction, and standard wiring sizes supports lower labor costs, faster commissioning, and improved asset availability, contributing to a lower total cost of ownership over the motor control circuit.
