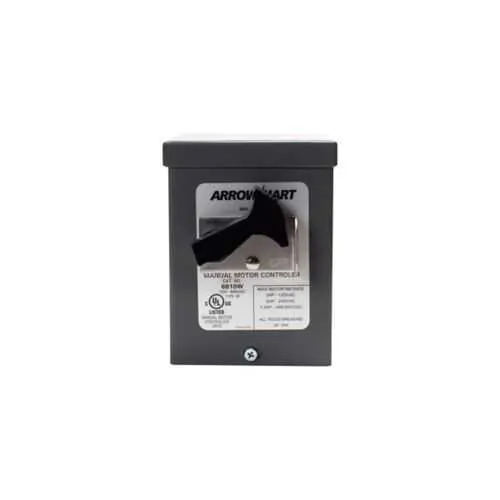

Eaton AH6810W Manual Motor Controller - cULus Listed
Part Number: AH6810W
Quick Summary
Eaton AH6810W Manual Motor Controller is a wall-mounted control device for single-phase industrial motors up to 30A at 600V. Engineers often face wiring complexity and crowded panels; this unit provides front-wire screw terminals to streamline installation and reduce mis-wiring. With a NEMA 3R enclosure, copperless aluminum construction, and RoHS/NAFTA compliance, it delivers reliable protection in challenging environments. The combination of robust certification and durable materials supports scalable automation while keeping lifecycle costs in check. This solution pairs well with other Eaton components to support faster commissioning and predictable maintenance in industrial facilities.
Product Information
Extended Description
AH6810W Eaton: Eaton manual motor controller, #14-10 AWG, 30A, Wall, 600V, Front wired, Maintained contact, Gray, NEMA 3R, Enclosure: Copperless aluminum, Two-pole, -20-65˚C, Single-phase, Toggle switch, Copper-alloy terminal, brass screw, Single-throw
Product Name
Eaton manual motor controller
Catalog Number
AH6810W
UPC
040893616865
Product Length/Depth
9.3 in
Product Height
5.9 in
Product Width
7 in
Product Weight
3.7 lb
Compliances
NAFTA RoHS Compliant
Certifications
cULus Listed
Enclosure
NEMA 3R
Special features
With NEMA 3R enclosure
Type
Manual motor controller
Amperage Rating
30A
Voltage rating
600 V
Number Of Poles
Two-pole
Phase
Single-phase
Enclosure material
Copperless aluminum
Application
Industrial
Device grade
Industrial
Wiring method
Front wired screw
Contact type
Maintained
NEMA Rating
3R
Switch type
Toggle switch
Mounting method
Wall
Closure type
Maintained
Number of positions
2
Allowable wire size
#14-10 AWG
Operating temperature
-20 to 65 °C
Material
Glass-filled nylon
Termination style
Front screw
Throw
Single-throw
Terminals
Copper-alloy, brass screw
Color
Gray
Feature: NEMA 3R enclosure provides outdoor and damp-environment protection. Business Impact: minimizes exposure to dust, water ingress, and temperature swings, reducing unplanned downtime. Application: ideal for outdoor motor control or machine enclosures in harsh facilities. Feature: Copperless aluminum enclosure with a glass-filled nylon body offers lightweight durability and corrosion resistance. Business Impact: easier handling during installation and longer service life in demanding conditions. Application: wall-mounted controllers in space-constrained panels. Feature: Front wired screw termination for #14-10 AWG wires enables faster wiring and reduces mis-wiring. Business Impact: accelerates installation, lowers labor costs, and simplifies field changes. Application: OEM panel builds and retrofits in modernization projects. Feature: Two-pole, single-phase design with 30A, 600V rating and maintained contact ensures reliable motor control. Business Impact: safe start/stop operation and compatibility with common industrial motors. Application: conveyors, pumps, fans, and general-purpose motor control. Feature: cULus Listed, RoHS compliant, NAFTA-friendly with a robust operating range (-20 to 65 °C) enhances procurement and cross-border deployments. Business Impact: reduces regulatory risk and streamlines global sourcing. Application: multinational facilities and cross-site rollouts. Feature: Front switch with 2 positions and toggle style delivers simple operator control. Business Impact: intuitive operation reduces training time and improves uptime in busy production environments. Application: enclosure-mounted control points in machine or line starts.
Get a Quick Quote for a Eaton AH6810W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH6810W?
Enquire Now
FAQs
The AH6810W is designed for wall mounting with front-wired screw terminals for #14-10 AWG conductors. When planning installation, ensure a clean, ventilated enclosure space and compatible power supply per the 600 V rating. Verify the enclosure is NEMA 3R rated for outdoor or damp locations and confirm space for the 2-position toggle switch and wiring clearances to maintain safe operation.
AH6810W uses front-wired screw termination rated for #14-10 AWG conductors, enabling quick, reliable field wiring. This reduces internal panel routing and improves wiring accuracy. For best results, strip length to standard spec, tighten terminals to torque recommendations, and organize conductors with proper strain relief to prevent loosening under vibration in industrial environments.
Yes. The AH6810W employs a NEMA 3R enclosure and copperless aluminum construction, delivering protection against rain, dust, and temperature variation. With operating temperatures from -20 to 65 °C and RoHS compliance, it is well-suited for factory floors, outdoors, and other challenging locations while meeting common regulatory requirements.
The AH6810W is cULus Listed and RoHS compliant, with NAFTA compatibility for cross-border shipments. These certifications support safe operation in North American facilities, simplify procurement, and help ensure regulatory alignment across multinational sites during installation and maintenance of motor control systems.
The maintainable, two-pole, single-phase design with front wiring reduces wiring errors and commissioning time, lowering labor costs during installation. The rugged enclosure, standard components, and robust certifications minimize downtime and regulatory risk, while long-term reliability of the copperless aluminum enclosure and maintained contact design contribute to lower maintenance frequency and extended service life.
