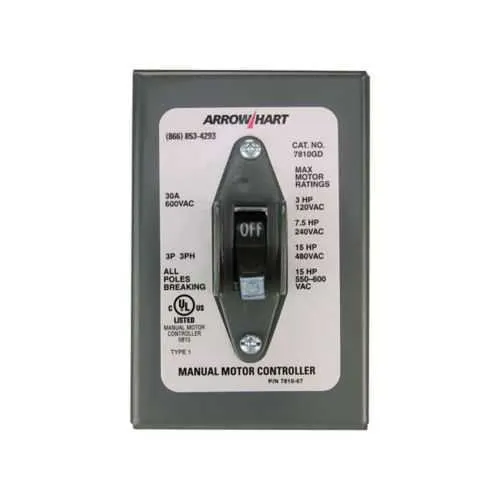

Eaton AH7810GD-C Manual Motor Controller - cULus Listed
Part Number: AH7810GD-C
Quick Summary
Eaton AH7810GD-C Manual Motor Controller safely starts and stops three-phase motors in demanding industrial settings. Wiring errors and downtime during maintenance are common pain points we help you mitigate. This Canadian version carries RoHS compliance, cULus listing, and NAFTA compatibility for cross-border projects. With a stainless steel NEMA 1 enclosure, front wiring, and a compact footprint, installation is faster and more reliable. For engineers and procurement teams, this translates to lower total cost of ownership and faster project commissioning. Its 30A, 600V rating and front screw-and-clamp termination support efficient motor control across standard panel builds.
Product Information
Extended Description
AH7810GD-C Eaton: Eaton manual motor controller, Canadian version, #14-10 AWG, 30A, Industrial, Wall, 600V, Front wired screw and clamp, Maintained contact, Gray, NEMA 1, Enclosure: SS, Three-pole, Single-gang, Three-phase, Toggle, Single-throw, Nylon
Product Name
Eaton manual motor controller
Catalog Number
AH7810GD-C
UPC
040893658988
Product Length/Depth
6.3 in
Product Height
5.7 in
Product Width
6.4 in
Product Weight
1.58 lb
Compliances
RoHS Compliant NAFTA
Certifications
cULus Listed
Enclosure
NEMA 1
Special features
Canadian version
Type
Manual motor controller
Amperage Rating
30A
Voltage rating
600 V
Number Of Poles
Three-pole
Phase
Three-phase
Enclosure material
Stainless steel
Application
Industrial
Device grade
Industrial
Wiring method
Front wired screw and clamp
Contact type
Maintained
NEMA Rating
1
Switch type
Toggle switch
Mounting method
Wall
Closure type
Maintained
Number of gangs
1
Number of positions
2
Allowable wire size
#14-10 AWG
Operating temperature
-20 to 65 °C
Material
Glass-filled nylon
Termination style
Front screw and clamp
Throw
Single-throw
Terminals
Copper-alloy, brass screw
Color
Gray
The front wired screw and clamp wiring method simplifies on-site connections, reducing wiring errors and speeding commissioning, while offering compatibility with #14-10 AWG conductors for supply and load in a compact three-pole package. This design translates directly into time savings during installation and easier diagnostics during maintenance. The 30A at 600V capability supports a wide range of three-phase motors, enabling broader application coverage in conveyors, pumps, and fans without overdesigning the panel. The NEMA 1, stainless-steel enclosure provides reliable protection in indoor industrial environments, improving uptime and resilience to routine shop conditions. Maintained contact, a toggle switch, and single-throw operation deliver predictable control behavior, minimizing startup surges and operator confusion on the shop floor. RoHS compliance, cULus listing, and NAFTA compatibility reduce regulatory and cross-border risk, accelerating procurement and compliance checks. Glass-filled nylon construction supports strong mechanical integrity across operating temperatures from -20 to 65 °C, while the front termination further simplifies retrofits or modular panel expansions for growing automation needs.
Get a Quick Quote for a Eaton AH7810GD-C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH7810GD-C?
Enquire Now
FAQs
The AH7810GD-C uses a front wired screw and clamp termination, simplifying on-site connections and reducing field wiring errors. It accepts #14-10 AWG conductors for both supply and load, compatible with standard industrial cables. The unit is a three-pole, single-gang design with a two-position toggle, making panel integration straightforward. It supports front-screw and clamp termination values, enabling quick commissioning.
AH7810GD-C is rated for 30A and 600V, supporting three-phase operation with three poles. It features a NEMA 1 enclosure, stainless steel construction, and a front wiring method. This combination provides indoor-dry location protection while withstanding typical factory conditions. The device is RoHS compliant and cULus listed, with NAFTA compatibility to simplify cross-border projects.
Yes. The AH7810GD-C is designed as a Canadian version, with a front-wired termination and a compact 1-gang footprint that fits common panel spaces. It aligns with NAFTA requirements, supports #14-10 AWG wiring, and carries RoHS and cULus certifications, delivering consistent performance in Canadian manufacturing facilities and multi-site automation deployments. Its rugged materials support reliable operation across shifts and varying temperatures.
Important certifications include cULus Listed and RoHS compliance, which support electrical safety and environmental standards. The unit also meets NAFTA requirements for cross-border sourcing and features a NEMA 1 stainless-steel enclosure suitable for indoor industrial environments. For project approvals, these classifications help streamline procurement, testing, and maintenance planning while reducing regulatory risk.
Designed for industrial applications, the AH7810GD-C reliably controls three-phase motors in conveyors, pumps, and other equipment within dirty or humid factory floors. The stainless-steel enclosure and NEMA 1 rating protect during wall-mounted installation, while the front-wired termination and 600V/30A capability support quick integration in ISO-compatible control panels and multi-line automation systems.
