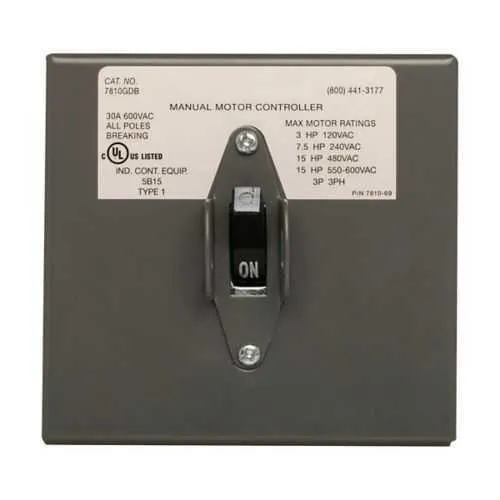

Eaton Manual Motor Controller AH7810GD - cULus Listed
Part Number: AH7810GDB
Quick Summary
Eaton manual motor controller is a rugged switch for starting three-phase motors in industrial settings. Operators wrestle with front-access wiring, frequent maintenance downtimes, and securing enclosures against dust and moisture in harsh environments. This AH7810GD unit carries cULus Listed safety certification, RoHS compliance, and NAFTA alignment to simplify supplier qualification and regulatory reporting. Built for wall mounting with a stainless steel NEMA 1 enclosure, it withstands industrial dust, temperature swings, and physical impacts common in manufacturing lines. Front wired screw and clamp terminations, a 30A/600V rating, and a three-pole, two-position design deliver reliable control while reducing wiring errors and field modification needs. This combination supports faster service, lower total cost of ownership, and safer, compliant motor control for industrial applications.
Product Information
Extended Description
AH7810GDB Eaton: Eaton manual motor controller, #14-10 AWG, 30A, Industrial, Wall, 600V, Front wired screw and clamp, Maintained contact, NEMA 1,: Stainless steel, Three-pole, Double-gang, Two-position, Three-phase, Single-throw, Glass-filled nylon
Product Name
Eaton manual motor controller
Catalog Number
AH7810GDB
UPC
040893598659
Product Length/Depth
6.3 in
Product Height
5.7 in
Product Width
6.4 in
Product Weight
2.2 lb
Compliances
NAFTA RoHS Compliant
Certifications
cULus Listed
Enclosure
NEMA 1
Special features
With NEMA 1 enclosure
Type
Manual motor controller
Amperage Rating
30A
Voltage rating
600 V
Number Of Poles
Three-pole
Phase
Three-phase
Enclosure material
Stainless steel
Application
Industrial
Device grade
Industrial
Wiring method
Front wired screw and clamp
Contact type
Maintained
Switch type
Toggle switch
Mounting method
Wall
Closure type
Maintained
Number of gangs
2
Number of positions
2
Allowable wire size
#14-10 AWG
Operating temperature
-20 to 65 °C
Material
Glass-filled nylon
Termination style
Front screw and clamp
Throw
Single-throw
Terminals
Copper-alloy, brass screw
Color
Gray
The NEMA 1 stainless steel enclosure provides durable protection against dust and incidental contact, enabling safe wall-mounted installation in busy workshops. Front wired screw and clamp terminations simplify wiring, reduce panel congestion, and minimize miswiring risks, delivering faster install times for panel builders working with #14-10 AWG conductors. With a 30A, 600V rating, three-pole design, and a two-position toggle, this unit supports reliable control of standard industrial motors in harsh environments while maintaining a compact, single-gang footprint for easy upgrades. Copper-alloy terminals and maintained contact ensure consistent motor start and reduced arcing, contributing to longer equipment life and lower maintenance costs. Coupled with RoHS and NAFTA compliance, it enables compliant, efficient procurement and streamlined integration into existing motor-control schemes.
Get a Quick Quote for a Eaton AH7810GDB
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH7810GDB?
Enquire Now
FAQs
Begin by mounting the unit on a clean wall or panel surface using appropriate fasteners for a single-gang footprint. Route wires through the front termination area and secure with the front screw and clamp terminals rated for #14-10 AWG. Ensure the enclosure remains closed during operation to preserve NEMA 1 protection. Verify all connections are tight and re-check the maintenance toggle position after energizing. This approach reduces wiring errors and minimizes panel downtime during commissioning.
The AH7810GD uses front wired screw and clamp termination suitable for #14-10 AWG conductors. Copper-alloy terminals provide robust, corrosion-resistant connections for reliable ongoing operation. The combination of front termination and copper terminals simplifies field wiring, improves pull tensions, and supports straightforward troubleshooting in maintenance cycles.
Yes. The AH7810GD is a three-phase, three-pole manual motor controller rated at 30A and 600V. It features a single-gang, two-position, maintained contact toggle switch and a wall-mount design, making it ideal for standard industrial motors in automation, conveyors, and pumps. The device uses a stainless steel NEMA 1 enclosure to protect against dust and incidental contact in harsh environments.
The AH7810GD carries cULus Listed safety certification and RoHS compliance, with NAFTA alignment for cross-border sourcing. This combination supports regulatory compliance in multiple markets and helps streamline supplier qualification. Ensure your procurement and maintenance records reflect these certifications to avoid delays during audits or part reorders.
Expect reduced downtime due to reliable maintained contact and robust front-terminal wiring that simplifies diagnostics. The stainless steel NEMA 1 enclosure improves enclosure protection in dusty or rugged environments, while front wiring saves installation time. Together, these features contribute to lower total cost of ownership, easier panel upgrades, and faster serviceability for OEMs and maintenance teams.
