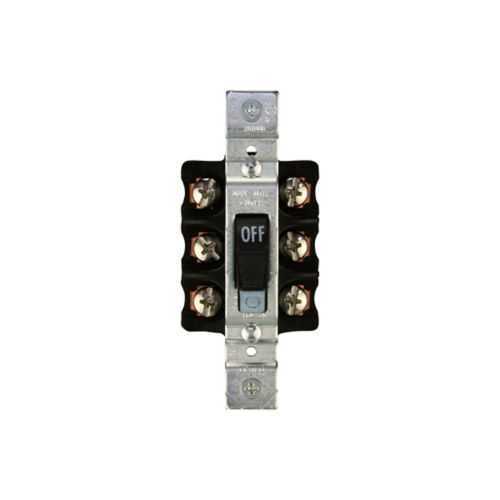

Eaton AH7810U-C Manual Motor Controller - cULus Listed
Part Number: AH7810U-C
Quick Summary
Eaton manual motor controller is a compact device for safe motor control in industrial panels. Engineers often struggle with wiring clutter, space constraints, and ensuring reliable operation during panel commissioning. This unit is cULus Listed and designed for three-phase systems up to 600 V, 30 A, making it suitable for demanding industrial environments. With front wired screw and clamp termination and a panel-mount design, it simplifies installation, reduces wiring errors, and speeds up testing. The Canadian version aligns with regional safety and labeling requirements, helping you meet local procurement and compliance goals while keeping maintenance straightforward. In practice, this translates to lower commissioning time and improved system uptime.
Product Information
Extended Description
AH7810U-C Eaton: Eaton manual motor controller, Switch only, Canadian version, #14-10 AWG, 30A, Panel, 600V, Front wired screw and clamp, Maintained contact, Open, Three-pole, Two-position, Three-phase, Toggle switch, Copper-alloy terminal, Single-throw
Product Name
Eaton manual motor controller
Catalog Number
AH7810U-C
UPC
040893658995
Product Length/Depth
3.75 in
Product Height
2.38 in
Product Width
2.38 in
Product Weight
0.25 lb
Certifications
cULus Listed
Enclosure
Open
Special features
Switch only, Canadian version
Type
Manual motor controller
Amperage Rating
30A
Voltage rating
600 V
Number Of Poles
Three-pole
Phase
Three-phase
Application
Industrial
Device grade
Industrial
Wiring method
Front wired screw and clamp
Contact type
Maintained
Switch type
Toggle switch
Mounting method
Panel
Closure type
Maintained
Number of positions
2
Allowable wire size
#14-10 AWG
Operating temperature
-20 to 65 °C
Material
Glass-filled nylon
Termination style
Front screw and clamp
Throw
Single-throw
Terminals
Copper-alloy, brass screw
Color
Black
Feature: 30 A amperage rating supports controlling standard to mid-size motors in industrial settings. Business Impact: Enables reliable motor control without overloading the switch, reducing fuse/trip events and improving line uptime. Application: Suitable for three-phase motors in panel assemblies where a compact, front-access device is preferred. Feature: 600 V voltage rating accommodates common industrial distribution networks. Business Impact: Provides a safe operating margin for standard plant voltages, improving protection margins and compliance with electrical codes. Application: Recommended for equipment fed from general-purpose industrial power rails. Feature: Open enclosure with panel-mount design. Business Impact: Facilitates easy integration into existing control panels and simplifies visual inspection, saving enclosure real estate and assembly time. Application: Ideal for new installations and upgrades in compact panel bays. Feature: Front wired screw and clamp termination. Business Impact: Reduces wiring complexity and fault points, accelerating installation and serviceability. Application: Quick field termination for #14-10 AWG conductors in Canadian and US panel environments. Feature: Copper-alloy terminals and brass screws. Business Impact: Improves conductivity and long-term connection reliability under vibration and temperature cycling. Application: Robust for repeated switching in industrial drives and motor controllers. Feature: Special Canadian version and cULus Listed certifications. Business Impact: Supports regional compliance and safety validation, easing procurement and maintenance planning. Application: Suitable for Canadian manufacturing facilities requiring formal safety approvals and documentation.
Get a Quick Quote for a Eaton AH7810U-C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH7810U-C?
Enquire Now
FAQs
AH7810U-C is designed for panel mounting with an open enclosure. It uses front screw and clamp termination suitable for #14-10 AWG conductors. Ensure 600 V ratings remain within the panel’s voltage class, and maintain proper clearance around the device to allow access for the toggle switch and wiring checks. Use copper-alloy terminals as specified and secure connections to minimize vibration-induced loosening.
The unit is rated for 30 A at 600 V, three-phase, three-pole operation with a single-throw, maintained contact. It is designed for open enclosure mounting and employs front wired screw and clamp termination. It supports #14-10 AWG wiring and uses copper-alloy terminals with brass screws to ensure reliable, low-impedance connections in industrial environments.
Yes. AH7810U-C is characterized as a Canadian version and carries cULus Listed certification, aligning with regional safety and compliance standards. Its 30 A, 600 V, three-phase rating makes it appropriate for typical Canadian industrial motor control applications, while the front wiring and panel-mount design streamline installation in Canadian control panels.
The AH7810U-C carries cULus Listed certification, indicating UL and CSA safety compatibility for North American use. This certification supports compliance verification, safe operation in industrial environments, and smoother procurement processes for facilities requiring recognized safety approvals.
Maintenance benefits arise from front screw and clamp termination, which reduces wiring errors and simplifies field servicing. The open enclosure and compact panel-mount design save space and facilitate quicker commissioning. Over time, these factors contribute to lower maintenance labor costs, faster troubleshooting, and higher motor-control uptime in industrial settings.
