Eaton AH7810UD Manual Controller - cULus Listed
Part Number: AH7810UD
Quick Summary
Eaton AH7810UD Manual Controller is a compact switch-only device designed to start and stop three-phase motors in industrial panels. For engineers grappling with downtime from wiring errors and hard-to-access panel spaces, this unit streamlines installation with front wired screw and clamp termination, a rugged glass-filled nylon body, and a 30A/600V rating. The product carries cULus Listed certification along with RoHS compliance and NAFTA alignment, supporting global sourcing and regulatory adherence. By combining reliability with ease of maintenance, it delivers tangible business value, enabling faster commissioning, reduced field wiring errors, and safer, more predictable motor control in harsh industrial environments. Secondary considerations include its open enclosure design and 2-position, single-throw operation for straightforward control logic.
Product Information
Extended Description

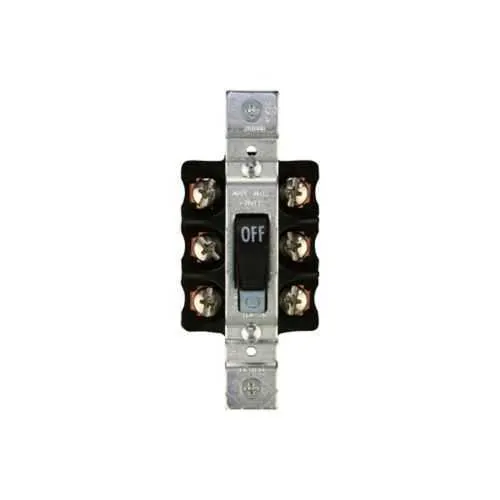

AH7810UD Eaton: Eaton manual motor controller, Switch only, #14-10 AWG, 30A, Industrial, Panel, 600V, Front wired screw and clamp, Maintained contact, Black, Open, Three-pole, Two-position, Three-phase, Toggle switch, Copper-alloy terminal, Single-throw
Product Name
Eaton manual motor controller
Catalog Number
AH7810UD
UPC
040893006048
Product Length/Depth
3.75 in
Product Height
2.38 in
Product Width
2.38 in
Product Weight
0.65 lb
Compliances
NAFTA RoHS Compliant
Certifications
cULus Listed
Enclosure
Open
Special features
Switch only
Type
Manual motor controller
Amperage Rating
30A
Voltage rating
600 V
Number Of Poles
Three-pole
Phase
Three-phase
Application
Industrial
Device grade
Industrial
Wiring method
Front wired screw and clamp
Contact type
Maintained
Switch type
Toggle switch
Mounting method
Panel
Closure type
Maintained
Number of positions
2
Allowable wire size
#14-10 AWG
Operating temperature
-20 to 65 °C
Material
Glass-filled nylon
Termination style
Front screw and clamp
Throw
Single-throw
Terminals
Copper-alloy, brass screw
Color
Black
Feature: 30A amperage rating and 600 V voltage rating. Business Impact: Handles standard industrial motor start/stop loads with ample headroom, reducing nuisance trips and oversizing in control circuits. Application: Three-phase motors in factory automation panels. Feature: Front wired screw and clamp wiring method. Business Impact: Simplifies field wiring, speeds panel assembly, lowers installation labor costs. Application: Panel mount in compact electrical enclosures. Feature: Open enclosure with panel mounting. Business Impact: Easier access for wiring and maintenance, facilitating commissioning and serviceability in limited spaces. Application: OEM panel builds and retrofit projects. Feature: Copper-alloy terminals and brass screws. Business Impact: Durable, corrosion-resistant terminations improve long-term reliability in harsh environments. Application: Industrial control wiring for heavy equipment. Feature: Maintained contact, single-throw, two-position switch. Business Impact: Clear, dependable motor control states reduce misoperation and improve safety. Application: Start/stop control in production lines. Feature: Wire size compatibility #14-10 AWG. Business Impact: Supports standard control wiring with secure termination, minimizing rework. Application: Control circuits and wiring harnesses. Feature: Glass-filled nylon enclosure material. Business Impact: Lightweight yet robust in heat and chemical exposure, improving field serviceability. Application: Industrial enclosures subject to temperature and vibration. Feature: Compliance labels (cULus Listed, RoHS, NAFTA). Business Impact: Regulatory confidence and streamlined supply chain across markets. Application: Global manufacturing environments needing certified components.
