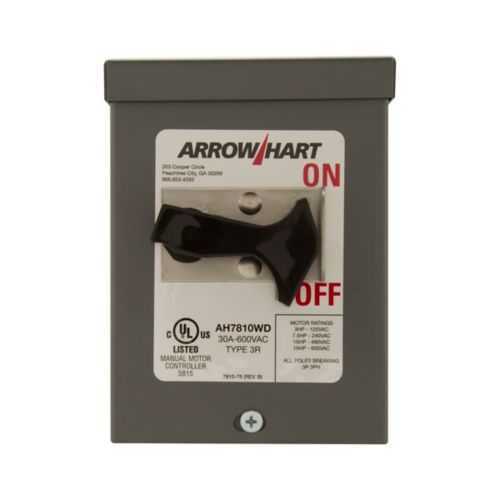

Eaton AH7810WD Manual Motor Controller - cULus Listed
Part Number: AH7810WD
Quick Summary
The Eaton AH7810WD manual motor controller safely starts and stops three-phase motors in industrial panels. Engineers often confront wiring complexity, enclosure protection, and maintenance in harsh environments, making reliable control infrastructure essential. It’s RoHS compliant with NAFTA and cULus Listed, and features a NEMA 3R enclosure for outdoor or dusty settings. Designed for panel mounting with front wiring, it reduces field labor and protects equipment, delivering consistent performance. This solution pairs robust electrical specs with easy installation, supporting scalable industrial control while keeping total cost of ownership low.
Product Information
Extended Description
AH7810WD Eaton: Eaton manual motor controller, #14-10 AWG, 30A, Panel, 600V, Front wired screw and clamp, Maintained contact, NEMA 3R, Enclosure: Copperless aluminum, Three-pole, Two-position, Three-phase, Toggle switch, Cu-alloy terminal, Single-throw
Product Name
Eaton manual motor controller
Catalog Number
AH7810WD
UPC
040893006055
Product Length/Depth
9.1 in
Product Height
6.1 in
Product Width
7.1 in
Product Weight
3.6 lb
Compliances
RoHS Compliant NAFTA
Certifications
cULus Listed
Enclosure
NEMA 3R
Special features
With NEMA 3R enclosure
Type
Manual motor controller
Amperage Rating
30A
Voltage rating
600 V
Number Of Poles
Three-pole
Phase
Three-phase
Enclosure material
Copperless aluminum
Application
Industrial
Device grade
Industrial
Wiring method
Front wired screw and clamp
Contact type
Maintained
NEMA Rating
3R
Switch type
Toggle switch
Mounting method
Panel
Closure type
Maintained
Number of positions
2
Allowable wire size
#14-10 AWG
Operating temperature
-20 to 65 °C
Material
Glass-filled nylon
Termination style
Front screw and clamp
Throw
Single-throw
Terminals
Copper-alloy, brass screw
Color
Gray
Feature: 30A at 600V rating. This enables safe, reliable motor control for mid-size industrial loads, reducing startup surges and extending motor life. Application: Ideal for panel-mounted control of three-phase motors in manufacturing lines. Feature: NEMA 3R enclosure with copperless aluminum. Benefit: Enhances environmental protection against dust and moisture, improving uptime in facilities with variable conditions. Application: Outdoor or harsh indoor environments where reliable enclosure protection matters. Feature: Front wired screw and clamp termination for #14-10 AWG conductors. Benefit: Speeds up wiring, lowers installation labor, and ensures secure terminations in tight panel spaces. Application: Control panels in OEM equipment and retrofit projects. Feature: Maintained contact with a single-throw toggle switch. Benefit: Positive, crisp actuation reduces misoperation and ensures predictable motor control. Application: Start/stop control in automated lines and machine centers. Feature: Three-pole, three-phase configuration. Benefit: Straightforward integration with standard motor circuits, improving compatibility and reducing wiring errors. Application: Industrial drives and commissioning of new lines. Feature: RoHS Compliant NAFTA and cULus Listed. Benefit: Regulatory compliance simplifies procurement and global sourcing, lowering risk and audits. Application: Global manufacturing environments needing certified control devices.
Get a Quick Quote for a Eaton AH7810WD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH7810WD?
Enquire Now
FAQs
The AH7810WD uses front wired screw and clamp termination suitable for #14-10 AWG conductors. This configuration simplifies field wiring, reduces labor time during panel assembly, and provides secure, vibration-resistant connections ideal for industrial environments.
Yes. It comes in a NEMA 3R enclosure and uses copperless aluminum construction, delivering protection against moisture, dust, and incidental water exposure. This makes it appropriate for both outdoor installations and harsh indoor conditions where equipment protection is required.
The unit is cULus Listed and RoHS compliant with NAFTA. These certifications support regulatory compliance, global sourcing, and reduce the risk of non-conformance in audits or cross-border procurement.
The AH7810WD is rated for 600 V and 30 A, suitable for three-phase motors. It is a three-pole, two-position, single-throw device with maintained contacts, designed for industrial motor control and reliable switching in production lines.
Typical applications include panel-mounted control for industrial conveyors, pumps, compressors, and processing equipment. Its front-wired terminals and robust enclosure support quick installation, durable operation, and compliance in factories undergoing regulatory or capacity upgrades.
