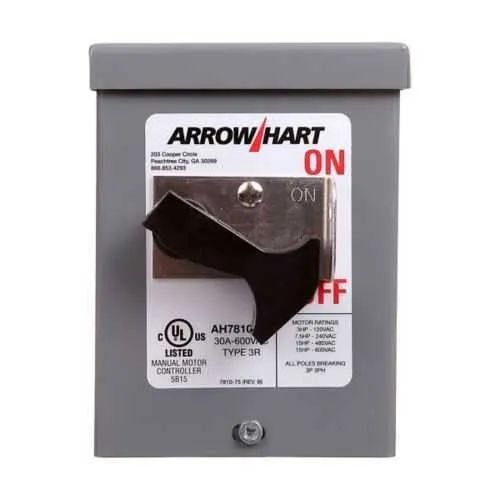

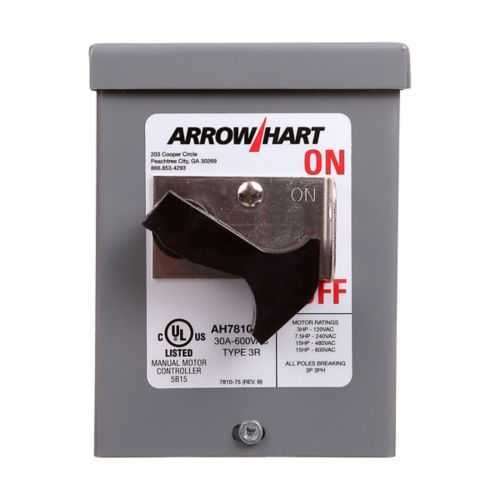

Eaton AH7810WD-C Manual Motor Controller - NEMA 3R
Part Number: AH7810WD-C
Quick Summary
The Eaton manual motor controller AH7810WD-C is a compact solution for safe, controlled startup of three-phase motors in industrial panels. When panel space and cross-border compliance challenge deployments, this unit helps keep wiring neat and dependable. It carries cULus Listed certification and RoHS NAFTA compliance, paired with a rugged NEMA 3R enclosure that handles damp or outdoor environments. With a Canadian version included, it simplifies regional approvals while maintaining high performance. Designed for panel mounting with front wired screw and clamp terminations, it supports #14-10 AWG conductors and delivers reliable operation in demanding automation settings. This combination translates to faster commissioning, reduced maintenance, and longer motor life in everyday industrial use.
Product Information
Extended Description
AH7810WD-C Eaton: Eaton manual motor controller, Canadian version, #14-10 AWG, 30A, Panel, 600V, Front wired screw and clamp, Maintained contact, Gray, NEMA 3R, Enclosure: Copperless aluminum, Three-pole, Three-phase, Toggle, Cu-alloy terminal, Single-throw
Product Name
Eaton manual motor controller
Catalog Number
AH7810WD-C
UPC
040893659008
Product Length/Depth
9.1 in
Product Height
5.9 in
Product Width
7 in
Product Weight
3.18 lb
Compliances
RoHS Compliant NAFTA
Certifications
cULus Listed
Enclosure
NEMA 3R
Special features
With NEMA 3R enclosure, Canadian version
Type
Manual motor controller
Amperage Rating
30A
Voltage rating
600 V
Number Of Poles
Three-pole
Phase
Three-phase
Enclosure material
Copperless aluminum
Application
Industrial
Device grade
Industrial
Wiring method
Front wired screw and clamp
Contact type
Maintained
NEMA Rating
3R
Switch type
Toggle switch
Mounting method
Panel
Number of positions
2
Allowable wire size
#14-10 AWG
Operating temperature
-20 to 65 °C
Material
Glass-filled nylon
Termination style
Front screw and clamp
Throw
Single-throw
Terminals
Copper-alloy, brass screw
Color
Gray
Three-pole, three-phase design rated at 30A and 600V ensures reliable control of common industrial motors. The maintained contact and copper-alloy terminals provide consistent switching performance under load, reducing arc wear and extending component life. This configuration is ideal for panel-mounted control in manufacturing lines and process equipment. NEMA 3R enclosure formed from copperless aluminum protects electrical connections from dust, rain, and incidental impact. The copperless aluminum construction minimizes weight while delivering dependable mechanical strength in harsh environments. For installers, this means fewer enclosure-related accessories and easier mounting in confined spaces. Front wired screw and clamp termination supports #14-10 AWG conductors, enabling clean, accessible wiring during installation. Copper-alloy terminals with brass screws ensure durable, low-resistance connections and ease of field maintenance. With front termination, technicians can wire the controller without removing it from the panel, speeding commissioning. Canadian version support reduces regulatory friction for cross-border manufacturing, while RoHS compliance and NAFTA good-for-trade statements align with supplier standards and environmental requirements. The cULus Listed certification adds confidence for safe operation in North American facilities. Engineered for industrial control panels, this unit minimizes downtime with predictable performance and minimal maintenance. The combination of rugged enclosure, front termination, and durable materials supports long service life and lower total cost of ownership.
Get a Quick Quote for a Eaton AH7810WD-C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH7810WD-C?
Enquire Now
FAQs
The AH7810WD-C is designed for panel mounting with front wired screw and clamp terminations and supports #14-10 AWG conductors. Its copper-alloy terminals provide durable, low-resistance connections, making it straightforward to retrofit into existing control panels without removing the device. Ensure adequate panel space for the 9.1 in depth and provide proper clearance for the NEMA 3R enclosure to maintain protection standards.
The 30A amperage rating paired with a 600V voltage rating is suitable for typical industrial motors in controlled startup sequences. This rating supports maintained contact and reliable switching under load, reducing inrush-related stress on contact surfaces. In practice, it improves motor life, minimizes voltage drop effects on feeders, and facilitates consistent startup in panel-mounted control schemas.
Yes. The AH7810WD-C includes a Canadian version and RoHS NAFTA compliance, aligning with cross-border manufacturing requirements. cULus certification further validates safe operation in North American facilities. These features streamline procurement and regulatory approvals while delivering robust motor control for industrial panels in Canada and neighboring markets.
This controller is cULus Listed and RoHS compliant with NAFTA considerations, along with a NEMA 3R enclosure. These certifications and enclosure protections address safety, environmental exposure, and cross-border trade needs, supporting reliable operation in industrial environments that demand compliance and durability.
Durable copper-alloy terminals, front termination for quick wiring, and a rugged NEMA 3R enclosure reduce field maintenance and downtime. The unit’s reliability translates to faster commissioning, fewer service calls, and longer motor life, delivering a favorable total cost of ownership for facilities with regular motor control needs.
