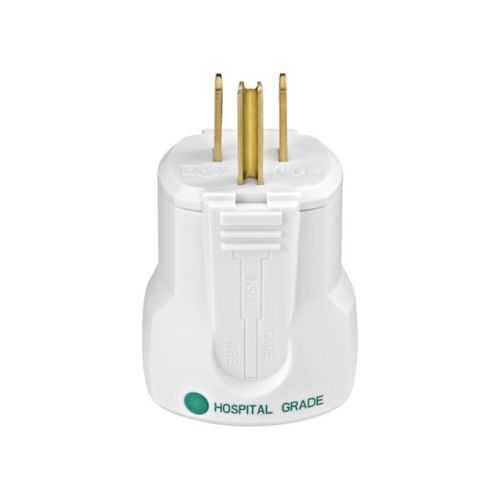

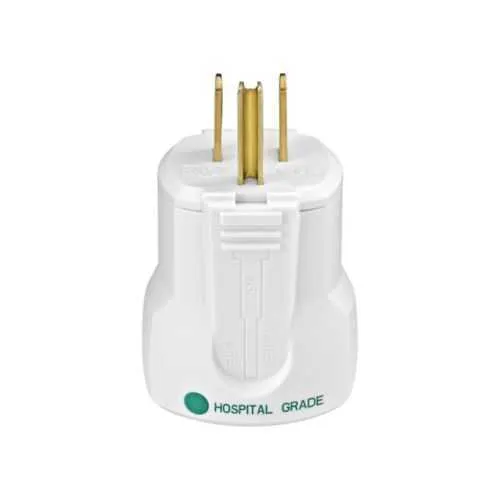

Eaton AH8115W Hospital Grade Plug - cULus Listed
Part Number: AH8115W
Quick Summary
Eaton AH8115W hospital-grade plug delivers reliable power connections for healthcare and industrial facilities. In demanding environments, installers struggle with glove-friendly access, secure terminations, and rapid, mistake-free wiring. The unit is cULus Listed and configured as a NEMA 5-15P two-pole, three-wire grounding connector rated at 15A and 125V. Its nylon outer shell with a polycarbonate body resists wear and chemicals, while the quick-grip design reduces installation time and maintenance costs for facilities. For procurement teams, the AH8115W offers predictable sourcing and compatibility with #18-12 AWG wiring and back-wire terminations.
Product Information
Extended Description
AH8115W Eaton: Eaton Arrow Hart quick grip hospital grade straight blade plug,#18-12 AWG,15A,Industrial,125V,Back wire,White,Brass,Polycarbonate with nylon outer shell,5-15P,Two-pole,three-wire,grounding,Screw,0.22-0.66" in diameter,Nylon,Core pack
Product Name
Eaton Arrow Hart quick grip hospital grade straight blade plug
Catalog Number
AH8115W
UPC
032664722967
Product Length/Depth
1.67 in
Product Height
1.46 in
Product Width
1.96 in
Product Weight
0.115 lb
Certifications
cULus Listed
Device type
Plug
Type
Plug
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Application
Industrial
Device grade
Heavy-duty hospital grade
Wiring method
Back wire
Number of wires
3
Number Of Poles
Two-pole
Style type
Straight body
Cord range
0.22-0.66" in diameter
Material
Nylon
Packaging type
Core pack
Color
White
Connection type
Screw
Allowable wire size
#18-12 AWG
NEMA configuration
5-15P
Torque rating
12-14 lbf-inch
Design type
Straight blade
Face/body material
Polycarbonate with nylon outer shell
Receptacle type
Two-pole, three-wire, grounding
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AH8115W
Eaton Specification Sheet - AH8115W
Feature: Hospital-grade plug with cULus Listed safety certification → Business Impact: Compliance with robust safety standards reduces risk of outages or regulatory issues → Application: Healthcare facilities, clinics, and industrial sites requiring proven electrical safety. Feature: Quick-grip hospital-grade straight blade design → Business Impact: Faster, glove-friendly connections minimize installation time and field errors → Application: New and retrofit installations in busy maintenance environments. Feature: Back-wire termination for #18-12 AWG wires → Business Impact: Cleaner terminations with reduced rework and improved pull-out resistance → Application: Field wiring in high-use settings. Feature: Durable nylon outer shell with polycarbonate body + brass contacts → Business Impact: Enhanced wear resistance and reliable grounding for long lifecycles → Application: High-demand patient areas, labs, and equipment houses. Feature: 15A, 125V, NEMA 5-15P, screw connection, cord range 0.22-0.66 inches → Business Impact: Broad compatibility with standard cords and secure installation → Application: General purpose powering of medical and industrial equipment in hospitals and facilities.
Get a Quick Quote for a Eaton AH8115W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH8115W?
Enquire Now
FAQs
AH8115W uses a standard NEMA 5-15P configuration and supports back-wire terminations for #18-12 AWG conductors. This combination ensures reliable, code-compliant connections while maintaining secure wire retention and straightforward field wiring. The device also employs brass contacts and a robust housing to resist loosening and contact degradation over time.
To ensure compliance and reliability, prepare the conductors to the proper gauge, insert wires into the back-wire terminals, and tighten screws to the manufacturer’s torque range of 12-14 lbf-in. Verify the grounding path, inspect for secure seating, and test the continuity after installation. Use the quick-grip design to minimize handling time and potential wire movement.
Yes. AH8115W is designed for healthcare environments, featuring a hospital-grade construction and a cULus Listed certification. These attributes support regulatory safety and reliability requirements for patient areas, labs, and equipment feeds, ensuring durable grounding and resistance to wear in high-use settings.
The quick grip design enables glove-friendly, rapid mating and unmating, reducing maintenance downtime and training time for staff. Durable materials, brass contacts, and a robust nylon/polycarbonate housing resist wear and chemical exposure typical of clinical and industrial environments, lowering lifecycle replacement costs and improving facility uptime over time.
Key specs include a 15A amperage rating and 125V voltage rating with a NEMA 5-15P configuration. It uses back-wire termination for #18-12 AWG conductors, a two-pole three-wire grounding setup, and screw-type connections. The durable polycarbonate body with nylon outer shell supports reliable grounding and compatibility with standard power cords in medical and industrial settings.
