Eaton AH8119W Hospital Grade Connector - cULus Listed
Part Number: AH8119W
Quick Summary

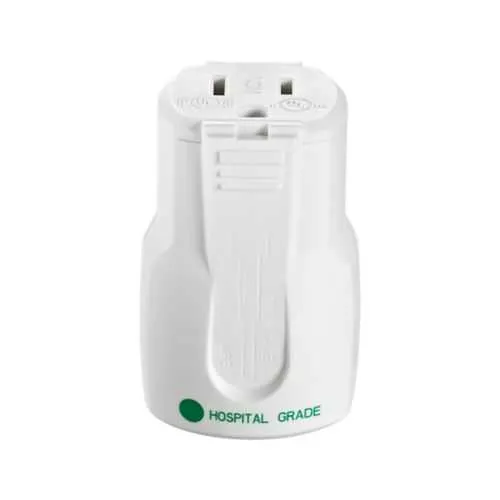

Eaton AH8119W Hospital Grade Connector is a back-wire, straight-blade power connector designed for hospital-grade, 15A, 125V applications. This design minimizes loose terminations and non-compliant cord sets that can disrupt critical healthcare systems. It is cULus Listed, ensuring compliance with UL/CSA safety standards and industrial wiring norms. Positioned within Eaton's Wiring & Connectivity portfolio, the AH8119W delivers reliable, code-compliant installation with quick-fit back-wire terminals, supporting fast procurement and reduced maintenance costs. Its NEMA 5-15R receptacle configuration and 0.22-0.66 inch cord range accommodate a wide range of medical equipment and wall outlets. The durable polycarbonate with nylon outer shell maintains safety and cleanability in daily hospital environments, while white coloration aids labeling and visibility in clinical spaces. This alignment with Eaton's Wiring and Connectivity solutions supports scalable upgrades and safer procurement decisions.
Product Information
Extended Description
AH8119W Eaton: Eaton Arrow Hart quick grip hospital grade straight blade connector,#18-12 AWG,15A,Industrial,125V,Back wire,White,Brass,Polycarbonate with nylon outer shell,5-15R,Two-pole,three-wire,grounding,Screw,0.22-0.66" in diameter,Nylon,Core pack
Product Name
Eaton Arrow Hart quick grip hospital grade straight blade connector
Catalog Number
AH8119W
UPC
032664722974
Product Length/Depth
1.67 in
Product Height
1.46 in
Product Width
2.59 in
Product Weight
0.129 lb
Certifications
cULus Listed
Device type
Connector
Type
Connector
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Application
Industrial
Device grade
Heavy-duty hospital grade
Wiring method
Back wire
Number of wires
3
Number Of Poles
Two-pole
Style type
Straight body
Cord range
0.22-0.66" in diameter
Material
Nylon
Packaging type
Core pack
Color
White
Connection type
Screw
Allowable wire size
#18-12 AWG
NEMA configuration
5-15R
Torque rating
12-14 lbf-inch
Design type
Straight blade
Face/body material
Polycarbonate with nylon outer shell
Receptacle type
Two-pole, three-wire, grounding
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AH8119W
Eaton Specification Sheet - AH8119W
Feature: Back-wire, three-wire, two-pole straight-blade configuration enables quick, secure terminations with minimal risk of loose connections. Business Impact: This reduces installation time and post-installation defects, lowering labor cost and downtime in hospital environments. Application: Suited for hospital-grade equipment and clinical devices requiring reliable power delivery. Feature: Cord range 0.22-0.66 inches and wiring size #18-12 AWG supports common medical device cords. Business Impact: Simplifies procurement and stocking, cutting the need for adapters and expediting installs in busy facilities. Application: Power cords for patient monitors, infusion pumps, and diagnostic devices. Feature: Brass contacts and a nylon outer shell with polycarbonate body provide durability and corrosion resistance. Business Impact: Improves long-term reliability and reduces maintenance intervals in daily hospital use. Application: Industrial and healthcare environments with frequent disinfecting and high-duty cycles. Feature: NEMA configuration 5-15R with grounding and screw connections ensures standard outlet compatibility and secure terminations. Business Impact: Enhances safety and reduces field rework while meeting common electrical codes. Application: Outlets and equipment connected to standard hospital power networks. Feature: Certifications and torque specs: cULus Listed, 12-14 lbf-in torque, and 125V/15A rating. Business Impact: Supports regulatory compliance, predictable installation, and consistent performance across shifts. Application: Procurement and maintenance planning for medical facilities and robust industrial shops.
Get a Quick Quote for a Eaton AH8119W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH8119W?
Enquire Now
FAQs
AH8119W uses #18-12 AWG cords with a back-wire three-wire, two-pole straight-blade design for hospital-grade power. It supports 15A at 125V and a NEMA 5-15R receptacle configuration with grounding. This combination ensures secure terminations, straightforward field retrofits, and reliable operation for medical devices and clinical equipment.
Power must be off before installation. Prepare wires within the #18-12 AWG range, insert into the back-wire clamp, and secure with the included screws to the specified torque of 12–14 lbf-in. Confirm grounding, verify polarity, and ensure the housing is fully seated. This approach minimizes rework and preserves equipment safety.
Yes, AH8119W is cULus Listed, providing compliance with UL/CSA safety standards for industrial and healthcare environments. This certification supports procurement decisions, simplifies regulatory audits, and helps ensure safe operation across hospital and clinical settings.
The AH8119W employs a 5-15R NEMA configuration, two-pole three-wire with grounding. It is designed for standard hospital outlets and medical devices, enabling reliable power delivery in patient rooms, treatment areas, and clinical labs while maintaining safety and compatibility with typical facility wiring.
The connector combines back-wire terminations with a durable polycarbonate housing and brass contacts, delivering long service life and easier maintenance. The 12–14 lbf-in torque specification supports consistent connections, reducing drift and rework. Frequent disinfecting and daily use in hospitals are better supported with its robust, easy-to-clean design.
