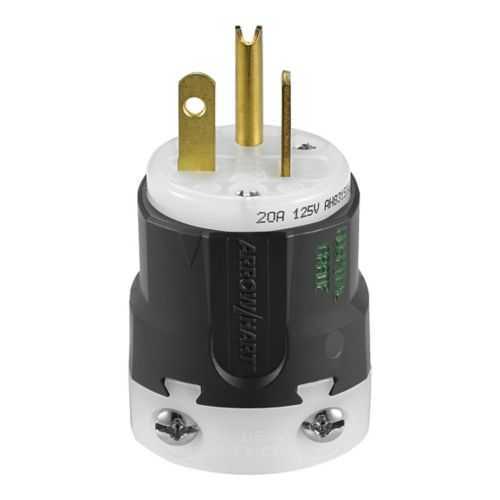

Eaton AH8315HG Hospital Grade Plug - UL NOM 6233 01
Part Number: AH8315HG
Quick Summary
The Eaton AH8315HG hospital grade straight blade plug delivers secure, high-reliability power connections for medical and industrial equipment. In fast-paced facilities, back-wire terminations and loose connectors drive downtime and maintenance costs. It carries UL NOM and Federal Specification 6233-01 approvals, underscoring safety and regulatory compliance in demanding environments. Designed for industrial wiring devices and healthcare power distribution, this plug accepts #18-12 AWG conductors with a screw termination and nylon body, backed by brass contacts for durability. With 125V, 20A ratings, a two-pole three-wire grounding configuration, and core-pack packaging, it provides dependable field replacement and streamlined stocking for mission-critical installations.
Product Information
Extended Description
AH8315HG Eaton: Eaton Arrow Hart ultra grip hospital grade straight blade plug, #18 to 12 AWG, 15A, Industrial, 125V, Back wire, Black and white, Brass, Nylon, 5-20P, Two-pole, three-wire, grounding, Screw, 0.33-0.66", Nylon, Core pack
Product Name
Eaton Arrow Hart ultra grip hospital grade straight blade plug
Catalog Number
AH8315HG
UPC
032664737695
Product Length/Depth
2.23 in
Product Height
2.1 in
Product Width
2.59 in
Product Weight
0.17 lb
Certifications
UL NOM Federal Specification Classification 6233 01
Amperage Rating
20A
NEMA configuration
5-20P
Torque rating
14 lbf-inch
Voltage rating
125V
Wiring method
Back wire
Color
Black and white
Contact material
Brass
Face/body material
Nylon
Material
Nylon
Packaging type
Core pack
Allowable wire size
#18-12 AWG
Application
Industrial
Connection type
Screw
Cord range
0.33-0.66" in diameter
Design type
Straight blade
Device grade
Extra heavy-duty hospital grade
Device type
Plug
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Two-pole, three-wire, grounding
Style type
Straight body
Type
Plug
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AH8315HG
Eaton Specification Sheet - AH8315HG
Back-wire termination simplifies field wiring and minimizes miswirings, reducing installation time and labor costs in industrial panels and healthcare equipment. The AH8315HG supports #18-12 AWG conductors and uses a screw termination for a secure, consistent connection, improving long-term reliability in demanding environments. The 125V, 20A rating and NEMA 5-20P compatibility ensure you can standardize power delivery across mixed equipment footprints while maintaining safety margins. A durable nylon body with brass contacts delivers corrosion resistance and high conductivity, translating to lower maintenance needs and fewer replacement parts over the life of the installation. The device is rated for hospital-grade duty with a 14 lbf-in torque specification, enabling repeatable terminations and reduced installer variance. Packaging as a core pack supports efficient stocking, quick replacements, and streamlined procurement for large projects. This combination of features helps facilities meet regulatory requirements while optimizing total cost of ownership.
Get a Quick Quote for a Eaton AH8315HG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH8315HG?
Enquire Now
FAQs
Install using the back-wire access for #18-12 AWG conductors or the screw-terminal option as specified. Tighten the terminals to the recommended 14 lbf-in torque to ensure a secure, compliant connection and minimize contact resistance over time.
Yes, the AH8315HG is a NEMA 5-20P compatible plug designed for industrial and hospital-grade use. It utilizes back-wire Termination with a screw connection for reliable field terminations and robust conductors in the #18-12 AWG range.
Ideal for industrial equipment power connections and hospital-grade power distribution, including medical devices, equipment racks, and control panels where frequent plug-in activity and stringent safety standards apply.
The plug carries UL/NOM approvals and Federal Specification Classification 6233-01, confirming compliance with hospital-grade safety requirements for demanding environments.
The combination of durable nylon housing, brass contacts, back-wire option, and a robust torque rating reduces installation time and maintenance needs, translating to lower downtime and longer service intervals in high-use facilities.
