Eaton AH8319HG Hospital Grade Connector - UL 6233
Part Number: AH8319HG
Quick Summary
Eaton AH8319HG hospital-grade straight blade connector ensures reliable power for critical medical and industrial equipment. For engineers, securing back-wire terminations and minimizing hotspot risk in demanding environments is a constant challenge. It carries UL recognition and Federal Specification 6233 Class 01 compliance, reinforcing safety and reliability in hospital-grade applications. Rated for back-wire installation with #18-12 AWG conductors and a 125V, 20A rating, it supports quick field assembly. Designed with a nylon body and brass contacts, its compact footprint helps reduce enclosure size while delivering robust, long-life performance in industrial settings.
Product Information
Extended Description
AH8319HG Eaton: Eaton Arrow Hart ultra grip hospital grade straight blade connector, #18-12 AWG, 15A, Industrial, 125V, Back wire, Black and white, Brass, Nylon, 5-20R, Two-pole, three-wire, grounding, Screw, 0.33-0.66", Nylon, Core pack
Product Name

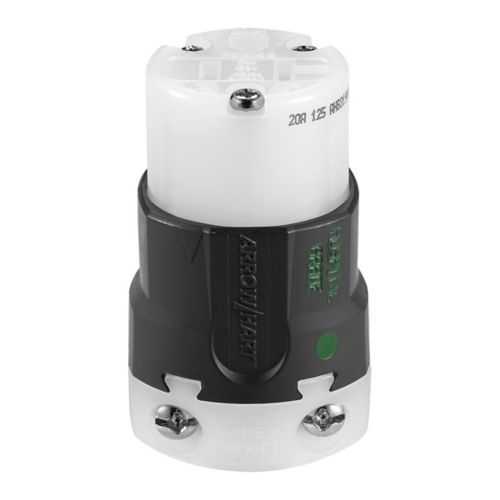

Eaton Arrow Hart ultra grip hospital grade straight blade connector
Catalog Number
AH8319HG
UPC
032664737718
Product Length/Depth
2.23 in
Product Height
2.1 in
Product Width
3.61 in
Product Weight
0.2 lb
Certifications
UL NOM Federal Specification Classification 6233 01
Amperage Rating
20A
NEMA configuration
5-20R
Torque rating
14 lbf-inch
Voltage rating
125V
Wiring method
Back wire
Color
Black and white
Contact material
Brass
Face/body material
Nylon
Material
Nylon
Packaging type
Core pack
Allowable wire size
#18-12 AWG
Application
Industrial
Connection type
Screw
Cord range
0.33-0.66" in diameter
Design type
Straight blade
Device grade
Extra heavy-duty hospital grade
Device type
Connector
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Two-pole, three-wire, grounding
Style type
Straight body
Type
Connector
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AH8319HG
Eaton Specification Sheet - AH8319HG
UL 6233 certification and Federal Spec 6233 Class 01 compliance provide hospital-grade safety assurances, reducing risk of non-compliance and costly field failures in medical environments. This translates to lower maintenance costs and higher equipment uptime in clinics and industrial panels where reliability is non-negotiable. The nylon body and brass contacts deliver corrosion resistance and high conductivity, extending service life and lowering replacement frequency in harsh environments. Back-wire termination supports fast, secure field installations, cutting labor time and boosting wiring consistency across assemblies. The 125V, 20A rating with a 5-20R receptacle ensures broad cord compatibility and standardized power distribution in both medical devices and industrial gear. Finally, a compact 2.23 in L × 2.1 in H × 3.61 in W footprint simplifies panel layouts and inventory planning for tight enclosures and automation modules.
