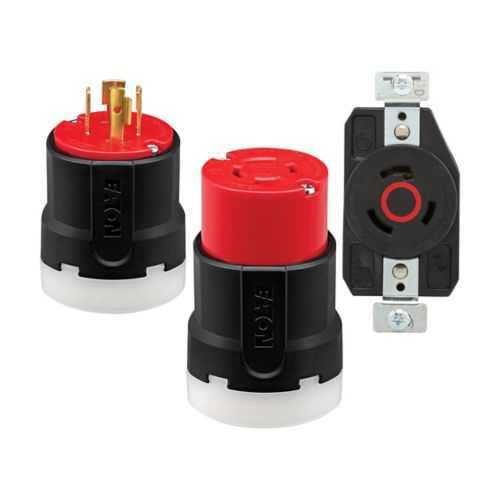

Eaton AHCL820C Locking Connector - Voltage Color Coding
Part Number: AHCL820C
Quick Summary
Eaton AHCL820C locking connector delivers color-coded, secure electrical connections for industrial equipment. In harsh environments, mismatched wiring and loose terminations can cause downtime, safety risks, and costly repairs. This part is RoHS compliant and NAFTA certified, with cULus Listed and NOM certifications supporting regulatory acceptance across global installations. Engineered for -40 to 60 °C operation, it tolerates frequent plug-and-unplug cycles and rugged factory conditions. Engineers and panel builders benefit from fast, code-compliant installation and predictable performance across #14-8 AWG, 480 V circuits. Its nylon Ultra Grip housing enhances grip during installation and provides durable, long-term reliability in OEM assembly lines, while back wiring with L8-20 configuration simplifies wiring schemes and reduces field errors.
Product Information
Extended Description
AHCL820C Eaton: Eaton Arrow Hart Color Coded Locking Connector, #14-8 AWG, 20A, Industrial, 480V, Back, Red, Black, Ultra grip, Nylon, L8-20, Two-pole, Three-wire, Nylon, 0.38 - 1.00" (9.5 - 25.4mm), -40°C (w/o impact) to 60°C (-40°F to 140°F)
Product Name
Eaton Arrow Hart Color Coded Locking Connector
Catalog Number
AHCL820C
UPC
032664760327
Product Length/Depth
2.23 in
Product Height
3.71 in
Product Width
2.1 in
Product Weight
0.001 lb
Compliances
RoHS Compliant NAFTA
Certifications
cULus Listed NOM
Special features
Voltage Color Coding
Type
Locking Connector
Amperage Rating
20A
Voltage rating
480 V
Application
Industrial
Wiring method
Back
Number of wires
3
Number Of Poles
Two-pole
Color
Black Red
Cord diameter
0.38-1 in (9.5-25.4 mm)
Material
Nylon
Operating temperature
-40 to 60 °C (-40 to 140 °F)
Allowable wire size
#14-8 AWG
NEMA configuration
L8-20
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Design type
Ultra grip
Face/body material
Nylon
Arrow Hart color coded locking devices sell sheet
Eaton Arrow Hart color coded locking devices
Eaton Specification Sheet - AHCL820C
Feature: Color-coded locking design with a two-pole, three-wire configuration. Business Impact: Reduces wiring errors during assembly and speeds fault isolation during service. Application: Ideal for motors, conveyors, and industrial machinery where color cues prevent mis-wiring. Feature: 20A, 480V rating with back-wiring method and cord diameter 0.38-1 in. Business Impact: Broad compatibility with common power circuits, cutting adapter needs and shortening install time. Application: Suitable for industrial power distribution, control panels, and machinery wiring. Feature: Nylon Ultra Grip housing and nylon face/body for rugged environments and repeated connections. Business Impact: Improves durability, grip, and connection reliability, reducing maintenance cycles. Application: Outdoor or dirty factory floors where grip and wear resistance matter. Feature: NEMA configuration L8-20, color-coded terminals, and defined torque ratings (14-16 lbf-in for #10-14 AWG; 20 lbf-in for #8 AWG). Business Impact: Ensures proper termination torque, enhancing safety and performance. Application: Panel builds, motor connections, and high-temperature environments. Feature: Compliance and certifications RoHS NAFTA and cULus NOM with UPC 032664760327. Business Impact: Streamlines regulatory clearance, supplier approvals, and customer audits. Application: OEMs, contractors, and service teams requiring documented conformity.
Get a Quick Quote for a Eaton AHCL820C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AHCL820C?
Enquire Now
FAQs
AHCL820C supports back-wiring with a 3-wire, two-pole L8-20 configuration and is rated for #14-8 AWG conductors. It delivers a 20A, 480V capacity, and a cord diameter range of 0.38-1 inches, enabling straightforward field terminations. This compatibility reduces the need for rewiring adapters, speeds panel assembly, and simplifies maintenance when replacing older connectors. Ensure correct wire sizing and torque per the spec sheet to maintain safe, code-compliant connections.
Torqueing varies by conductor size: 14-16 lbf-in for #10-14 AWG and 20 lbf-in for #8 AWG. Use a calibrated torque tool and tighten each terminal to the specified value to prevent looseness or overheating. With the back-wiring method and nylon Ultra Grip housing, you’ll experience consistent torque retention and lower termination stress, which translates to longer connector life and reduced maintenance intervals in motor and conveyor installations.
Yes. The AHCL820C is designed for industrial applications, including motor control panels and conveyors, with a -40 to 60 °C operating range and a robust nylon housing featuring Ultra Grip. The color-coded terminals help prevent cross-wiring during routine service, while the back-wiring capability supports quick terminations in tight spaces. Its compliance slate (RoHS NAFTA, cULus NOM) also supports deployment in regulated manufacturing facilities.
AHCL820C carries RoHS compliance, NAFTA conformity, and cULus Listed NOM certifications, signaling adherence to environmental and safety standards, cross-border trade requirements, and electrical safety. These certifications accelerate procurement approvals, simplify supplier qualification for OEMs, and support regulatory audits in North American and international markets.
Using AHCL820C provides measurable ROI through faster installation, reduced wiring errors thanks to color coding, and improved regulatory compliance with RoHS, NAFTA, and cULus NOM. The nylon Ultra Grip design resists wear in demanding environments, reducing replacement cycles and downtime. Its compatibility with #14-8 AWG, 20A at 480V, and L8-20 configurations supports scalable, reusable wiring schemes across multiple machines and lines.
