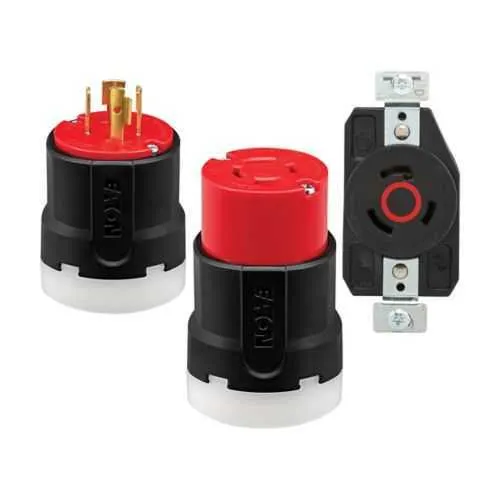

Eaton AHCL820FO Locking Outlet - RoHS Compliant
Part Number: AHCL820FO
Quick Summary
Eaton AHCL820FO locking outlet provides secure power connections for industrial equipment in harsh environments. This design addresses the common struggle of unsecured cords and accidental unplugging that lead to costly downtime on the shop floor. RoHS compliant and cULus listed, the unit also features color-coded voltage guidance for safer operation. With rugged nylon construction and an Ultra grip design, it blends reliability with simplified maintenance, while supporting 480 V industrial systems and L8-20 configurations to streamline procurement and installation considerations.
Product Information
Extended Description
AHCL820FO Eaton: Eaton Arrow Hart Color Coded Locking Flanged Outlet, #14-8 AWG, 20A, Industrial, 480V, Back, Red, Black, Ultra grip, Nylon, L8-20, Two-pole, Three-wire, Nylon, -40°C (w/o impact) to 60°C (-40°F to 140°F)
Product Name
Eaton Arrow Hart Color Coded Locking Flanged Outlet
Catalog Number
AHCL820FO
UPC
032664760464
Product Length/Depth
3.8 in
Product Height
2.24 in
Product Width
3 in
Product Weight
0.001 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Special features
Voltage Color Coding
Type
Locking Flanged Outlet
Amperage Rating
20A
Voltage rating
480 V
Application
Industrial
Wiring method
Back
Number of wires
3
Number Of Poles
Two-pole
Color
Red Black
Material
Nylon
Operating temperature
-40 to 60 °C (-40 to 140 °F)
Allowable wire size
#14-8 AWG
NEMA configuration
L8-20
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Design type
Ultra grip
Face/body material
Nylon
Arrow Hart color coded locking devices sell sheet
Eaton Arrow Hart color coded locking devices
Eaton Specification Sheet - AHCL820FO
Color coded locking devices reduce miswiring and unintentional disconnections, improving safety and uptime in high-demand lines, robotics cells, and manufacturing panels. This translates to measurable efficiency gains and faster task completion, especially where 480 V power is standard. The 20 A rating and L8-20 configuration ensure compatibility with critical equipment without overloading circuits, decreasing the risk of nuisance trips and extending component life. Back wiring supports quick, field-installable connections, reducing labor time during panel assembly and service. Nylon face/body with Ultra grip enhances durability and grip in oily or dusty environments, delivering reliable connections across -40 to 60 °C. The torque range for various AWG sizes guarantees a secure fit and compliant termination, minimizing maintenance and retorque events. RoHS and cULus certifications simplify regulatory compliance for global facilities, while color-coded wiring aids in phase identification and safety audits.
Get a Quick Quote for a Eaton AHCL820FO
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AHCL820FO?
Enquire Now
FAQs
The AHCL820FO supports up to 20A at 480V in a 3-wire, back-wired configuration (L8-20). It accepts #14-8 AWG conductors and uses a nylon Ultra grip body for durable, secure terminations. This makes it suitable for industrial motors, power distribution enclosures, and heavy machinery panels.
Yes. The AHCL820FO uses a back wiring method designed for straightforward field connections. Pair this with its torque recommendations for #8 to #14 AWG wires to ensure a secure fit that resists loosening under vibration common in industrial environments.
Yes. The device is RoHS compliant and cULus listed (NOM), ensuring adherence to key regulatory and electrical safety standards for global installations and audits.
Color coding helps operators quickly identify phase connections, reducing miswiring and safety hazards. In high-mix environments, this supports faster wiring audits, safer startup/shutdown sequences, and easier compliance reporting, all while maintaining a secure locking mechanism to prevent accidental disconnections.
The locking design minimizes accidental unplugging, reducing downtime and service interruptions. Nylon construction withstands harsh conditions, and back-wiring simplifies maintenance. Over time, this can lower labor costs, improve uptime, and simplify regulatory audits due to clear color coding and reliable performance.
