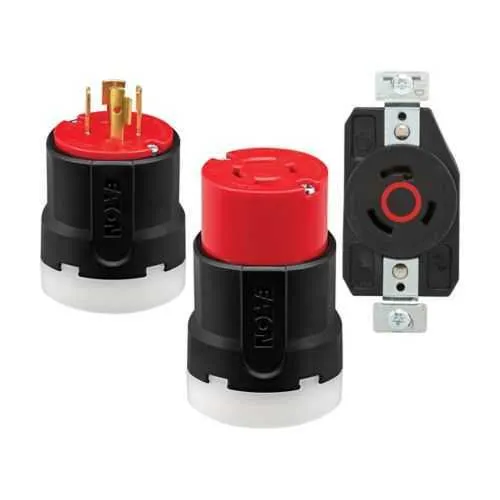

Eaton AHCL830C Color Coded Locking Connector - L8-30
Part Number: AHCL830C
Quick Summary
Eaton Arrow Hart Color Coded Locking Connector provides secure, color coded electrical connections for industrial power distribution and control panels. This locking design minimizes inadvertent disconnections in vibration-prone environments and speeds safe installation. The AHCL830C carries RoHS compliance and NAFTA trade considerations, and it is cULus listed for safety and reliability. By standardizing color coded locking devices across equipment and panel assemblies, it helps reduce wiring errors, streamline procurement, and support faster project commissioning in regulated North American settings.
Product Information
Extended Description
AHCL830C Eaton: Eaton Arrow Hart Color Coded Locking Connector, #14-8 AWG, 30A, Industrial, 480V, Back, Red, Black, Ultra grip, Nylon, L8-30, Two-pole, Three-wire, Nylon, 0.38 - 1.00" (9.5 - 25.4mm), -40°C (w/o impact) to 60°C (-40°F to 140°F)
Product Name
Eaton Arrow Hart Color Coded Locking Connector
Catalog Number
AHCL830C
UPC
032664760402
Product Length/Depth
2.23 in
Product Height
3.71 in
Product Width
2.1 in
Product Weight
0.001 lb
Compliances
RoHS Compliant NAFTA
Certifications
cULus Listed NOM
Special features
Voltage Color Coding
Type
Locking Connector
Amperage Rating
30A
Voltage rating
480 V
Application
Industrial
Wiring method
Back
Number of wires
3
Number Of Poles
Two-pole
Color
Red Black
Cord diameter
0.38-1 in (9.5-25.4 mm)
Material
Nylon
Operating temperature
-40 to 60 °C (-40 to 140 °F)
Allowable wire size
#14-8 AWG
NEMA configuration
L8-30
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Design type
Ultra grip
Face/body material
Nylon
Eaton Arrow Hart color coded locking devices
Eaton Specification Sheet - AHCL830C
Eaton Specification Sheet - AHCL830C
Feature: 30A, 480 V rating with a 3-wire, two-pole configuration using a back wiring method. Business Impact: Supports high-current industrial loads while maintaining secure, trouble-free connections; Applications: control panels, motor starters, and equipment feeds where reliable locking is critical. Feature: Ultra grip design with nylon body and color coded terminals. Business Impact: Enhances installation speed and mating stability, reducing field rework and downtime; Applications: rugged manufacturing floors and equipment enclosures. Feature: Cord diameter range 0.38-1 in and compatibility with #14-8 AWG conductors. Business Impact: Flexible installations and predictable torque management improve field performance and heat dissipation; Applications: industrial wiring in compact spaces. Feature: NEMA L8-30 configuration and back wiring. Business Impact: Ensures correct phase alignment and secure, vibration-resistant connections; Applications: high-temperature, noisy environments. Feature: RoHS Compliant, NAFTA, and cULus Listed. Business Impact: Regulatory alignment and cross-border supply chain confidence; Applications: multinational assembly lines and service teams. Feature: Torque ratings specified for different wire sizes. Business Impact: Prevents over- or under-torque connections, preserving insulation integrity and load performance; Applications: electrical panels and equipment junctions.
Get a Quick Quote for a Eaton AHCL830C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AHCL830C?
Enquire Now
FAQs
Yes. AHCL830C supports back wiring and is rated for #14-8 AWG conductors, with a torque range that ensures a secure embrace without damaging insulation. The locking mechanism, combined with the Ultra grip design, enables straightforward field termination and consistent performance in 480 V systems. Use the recommended torque values to prevent overheating and ensure a reliable connection.
AHCL830C uses the NEMA L8-30 configuration, providing a two-pole, three-wire locking solution for 480V industrial power. Its 30A rating matches common industrial loads, while the nylon body and color coded contacts improve wiring accuracy and durability in harsh environments. This combination supports safe, scalable panel and equipment connections across manufacturing facilities.
Yes. AHCL830C is RoHS compliant and NAFTA friendly, ensuring restricted substances are minimized and cross-border procurement is streamlined. It is cULus listed, confirming third-party safety certification for North American use. These certifications help with regulatory audits, supplier qualification, and sustaining compliant industrial installations across multiple sites.
Color coding visually differentiates conductors, reducing mis-wiring during installation and maintenance. The locking mechanism prevents accidental disconnection under vibration or loading conditions. Together, these features lower commissioning time, minimize interruptions, and improve panel reliability, which translates to less downtime and faster mean time to repair in demanding production environments.
Regularly inspect the locking connector for signs of wear, check the torque on the connections, and verify that the conductors remain within the #14-8 AWG range. Replace any nylon housing showing cracks or loss of grip. Maintain color coded labeling for quick identification, and ensure compatibility with L8-30 mating plugs to preserve system integrity.
