Eaton AHCL830P Locking Plug - L8-30 480V
Part Number: AHCL830P
Quick Summary
Eaton Arrow Hart Color Coded Locking Plug AHCL830P provides secure, color coded power connections for industrial equipment. Engineers often confront mismatched plugs, improper wiring, and downtime caused by non-standard color coding. This locking plug is RoHS compliant with NAFTA eligibility and cULus Listed NOM for reliable North American installation. Designed for L8-30 back-wired connections, it delivers safer, faster installations and durable performance in harsh industrial environments, while its nylon body and color-coding reduce human error and boost plant safety. With compatibility for 480 V, 30 A circuits and 0.38–1 in cord diameters, it supports efficient maintenance programs and reduced rework across facilities.
Product Information
Extended Description
AHCL830P Eaton: Eaton Arrow Hart Color Coded Locking Plug, Locking Plug, #14-8 AWG, 30A, Industrial, 480V, Back, Red, Black, Ultra grip, Nylon, L8-30, Two-pole, Three-wire, Nylon, 0.38 - 1.00" (9.5 - 25.4mm), -40°C (w/o impact) to 60°C (-40°F to 140°F)
Product Name
Eaton Arrow Hart Color Coded Locking Plug
Catalog Number
AHCL830P
UPC
032664760341
Product Length/Depth
2.23 in
Product Height
2.69 in
Product Width
2.1 in
Product Weight
0.01 lb
Compliances
RoHS Compliant NAFTA
Certifications
cULus Listed NOM
Special features
Voltage Color Coding
Type
Locking Plug
Amperage Rating
30A
Voltage rating
480 V
Application
Industrial
Wiring method
Back
Number of wires
3
Number Of Poles
Two-pole
Color
Black Red
Cord diameter
0.38-1 in (9.5-25.4 mm)
Material
Nylon
Operating temperature
-40 to 60 °C (-40 to 140 °F)
Allowable wire size
#14-8 AWG
NEMA configuration
L8-30
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Design type
Ultra grip
Face/body material
Nylon

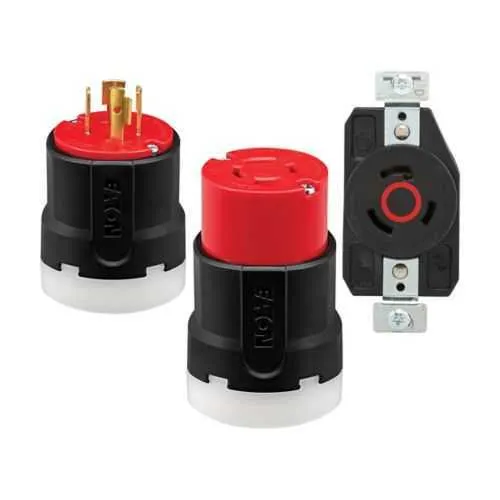

Eaton Arrow Hart color coded locking devices
Eaton Specification Sheet - AHCL830P
Eaton Specification Sheet - AHCL830P
Feature: 30A amperage rating. Benefit: Supports heavy-duty equipment without nuisance tripping, improving line uptime and protecting downstream devices. Application: Industrial motors, conveyors, and robotics where reliable high-current connections are critical. Feature: 480V voltage rating. Benefit: Direct compatibility with common plant power distributions, simplifying panel wiring. Application: Factory floor power distribution and motor control centers. Feature: L8-30 two-pole, three-wire configuration. Benefit: Correct mating with standard L8-30 receptacles reduces wiring errors and improves safety. Application: Welders, pumps, and automated machinery in harsh environments. Feature: Back wiring method. Benefit: Faster installation, better conductor management, and easier field maintenance. Application: Panel connections and field upgrades. Feature: Nylon body and Ultra grip design. Benefit: Durability in temperature extremes with improved handling under gloves. Application: Rugged industrial environments and maintenance workflows. Feature: Color coding (black/red). Benefit: Immediate visual identification of hot/neutral conductors to minimize misconnection. Application: High-visibility, safety-critical hookups in busy manufacturing cells. Feature: Operating temperature range -40°C to 60°C. Benefit: Reliable operation across climate swings and cold-start scenarios. Application: Outdoor enclosures and unheated facilities. Feature: Cord diameter range 0.38–1 in. Benefit: Flexible wiring options reduces inventory needs and supports varied cable sizes. Application: Field terminations and equipment upgrades. Feature: Torque rating for wire sizes (#10–#14 AWG 14–16 lbf-in; #8 AWG 20 lbf-in). Benefit: Ensures proper electrical connection integrity and long-term reliability. Application: Critical connections in high-vibration environments. Feature: Material: Nylon. Benefit: Corrosion resistance and chemical compatibility for industrial settings. Application: Harsh factory floors and wet or dusty environments.
