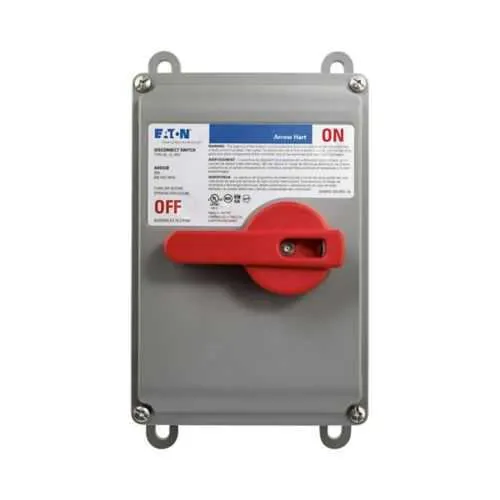

Eaton AHDS30 Motor Control Disconnect Switch - NEMA 4X
Part Number: AHDS30
Quick Summary
Eaton motor control disconnect switch isolates three-phase industrial equipment safely for maintenance and startup in harsh environments. In washdown environments and tight maintenance windows, panel access and compliance can slow operations. RoHS compliant and cULus listed with a NEMA 4X enclosure provide regulatory assurance, while the VALOX thermoplastic housing resists chemicals and moisture. Designed for industrial applications, the AHDS30 integrates with flush or 1/4 inch spacing mounting feet/DIN rail, and supports #14-10 AWG wiring to streamline installation. This combination delivers lower total cost of ownership through safer isolation, longer service intervals, and faster compliance documentation.
Product Information
Extended Description
AHDS30 Eaton: Eaton motor control disconnect switch, #14-10 AWG, 30A, Industrial, Mounting feet/DIN rail, flush or 1/4" spacing, 600V, Gray, NEMA 4X, Enclosure: VALOX thermoplastic, Washdown, Three-pole, Three-phase, Rotary switch, Thermoplasti
Product Name
Eaton motor control disconnect switch
Catalog Number
AHDS30
UPC
032664741326
Product Length/Depth
8.75 in
Product Height
5 in
Product Width
5.68 in
Product Weight
3.183 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Enclosure
NEMA 4X
Type
Motor control disconnect switch
Amperage Rating
30A
Voltage rating
600 V
Number Of Poles
Three-pole
Phase
Three-phase
Enclosure material
VALOX thermoplastic
Application
Industrial
Device grade
Industrial
NEMA Rating
4X
Environmental conditions
Complex Washdown
Switch type
Rotary switch
Mounting method
Flush or 1/4 in spacing Mounting feet/DIN rail
Allowable wire size
#14-10 AWG
Material
Thermoplastic
Color
Gray
Feature: NEMA 4X VALOX enclosure with washdown rating. Benefit: protects internal components from moisture, dust, and chemical exposure, enabling reliable operation in harsh industrial environments. Application: food processing, beverage lines, and outdoor control panels where cleaning schedules are frequent. Feature: 30A at 600V, three-pole, three-phase design. Benefit: accommodates standard motor loads with robust isolation, reducing wiring complexity and downtime. Application: general purpose industrial motors and packaging equipment. Feature: flexible mounting options—flush or 1/4 in spacing with mounting feet or DIN rail. Benefit: simplifies installation in existing control cabinets and OEM panels, saving space and cost. Application: OEM line integration and retrofit projects. Feature: #14-10 AWG wire compatibility. Benefit: simplifies field wiring, lowers termination errors, and speeds commissioning. Application: motor wiring zones with common conductor sizes. Feature: RoHS compliant and cULus listed with NEMA 4X enclosure. Benefit: regulatory peace of mind, easier procurement, and safer audits. Application: regulated manufacturing environments and panel builders seeking dependable isolation. Industry context: VALOX thermoplastic construction delivers long-term durability in industrial automation, improving uptime and safety across manufacturing lines.
Get a Quick Quote for a Eaton AHDS30
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AHDS30?
Enquire Now
FAQs
The AHDS30 supports flexible mounting with flush installation or 1/4 inch spacing, plus mounting feet or DIN rail options. Its compact footprint measures 8.75 in long by 5 in high and 5.68 in wide, allowing integration into most industrial control panels. For wiring, it accepts #14-10 AWG conductors, simplifying field wiring and reducing panel modification costs.
Yes. The AHDS30 is rated for 600 V and 30 A in a three-pole, three-phase configuration, providing reliable isolation for motor control circuits. Its rotary switch design offers straightforward operation, while the NEMA 4X-rated VALOX enclosure protects against dust, moisture, and washdown conditions common in manufacturing environments. This compatibility supports OEM lines and service teams.
Yes. The AHDS30 uses a VALOX thermoplastic enclosure rated NEMA 4X, designed for complex washdown and challenging cleaning schedules. It resists moisture and chemical exposure, making it suitable for food processing, beverage, and general industrial automation lines. The three-pole, three-phase construction ensures safe, reliable isolation during maintenance. It also supports standard wiring practices and quick field servicing.
The AHDS30 is RoHS compliant and cULus Listed, reflecting broad regulatory alignment for North American and international projects. These certifications support safer procurement, reduce risk during audits, and simplify documentation for panel builders. The device also carries a NEMA 4X enclosure rating, reinforcing its suitability for industrial environments. These attributes help engineers meet IEC/UL criteria while maintaining compliance across supplier ecosystems.
Adopting the AHDS30 delivers safer isolation, reducing maintenance downtime and the risk of electrical faults in motor circuits. Its rugged VALOX enclosure and dependable RoHS and cULus certifications support longer service intervals, predictable performance, and easier panel audits. Operators benefit from faster resets and engineers gain traceable compliance for upgrade projects.
