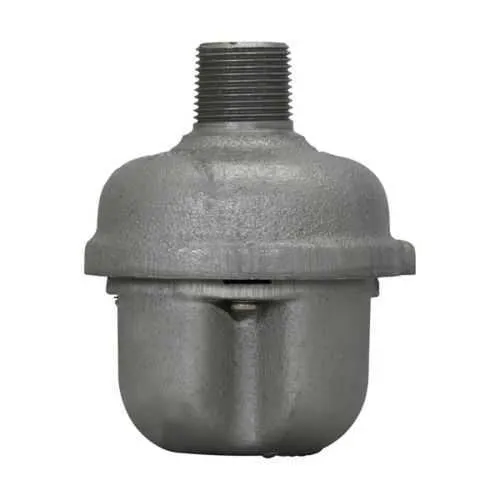

Eaton AHG22104 Fixture Hanger - Cushion, Hazardous Locations
Part Number: AHG22104
Quick Summary
The Eaton AHG22104 fixture hanger is a flexible suspension solution for luminaires in harsh environments. Installers often struggle with secure mounting in hazardous areas where vibration, chemical exposure, and tight spaces challenge reliability. This product meets NEC/CEC standards and is rated for Class I, Division 2 and Class II/III locations, with rugged NEMA 3 and 3R protection for rugged industrial settings. Designed for pendant mounting, it offers a cushion-type support with a 3/4 in luminaire stem and nipple, easing installation across multiple fixtures. Its durable Feraloy iron alloy ensures long life in demanding facilities, delivering practical value for maintenance teams and procurement.
Product Information
Extended Description
AHG22104 Eaton: Eaton Crouse-Hinds series AHG flexible fixture hanger, 4-16 lb, 3/4" luminaire stem size, Feraloy iron alloy, Pendant mount, 3/4" nipple size, Cushion type
Product Name
Eaton Crouse-Hinds series AHG flexible fixture hanger
Catalog Number
AHG22104
UPC
782274027302
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
2.35 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2 Class III
NEMA Rating
3 3R
Type
Cushion
Mounting Type
Pendant
Luminaire stem size
3/4"
Nipple size
3/4"
Luminaire rated weight
4-16 lb
Material
Feraloy iron alloy
Crouse-Hinds series Ball or Cushion Hazardous Area Flexible Fixture Hangers catalog page
Ball or Cushion Hazardous Area Flexible Fixture Hangers Canadian certification
Ball or Cushion Hazardous Area Flexible Fixture Hangers Canadian certification
Eaton Specification Sheet - AHG22104
Feature: Cushion-type support dampens vibration and reduces wear on mounted luminaires. Business Impact: Improves fixture longevity and lowers maintenance costs in high-vibration environments such as conveyors, fans, or pumps rooms. Application: Ideal for manufacturing floors and processing plants where continuous operation matters. Feature: Feraloy iron alloy construction. Business Impact: Provides excellent strength and corrosion resistance in harsh chemical or outdoor settings, extending service life. Application: Chemical plants, oil refineries, mining sites. Feature: Pendant mounting with 3/4" luminaire stem and 3/4" nipple. Business Impact: Simplifies integration with standard luminaires and reduces installation time by eliminating custom adapters. Application: Retrofit projects and new installs with common 3/4" stem luminaires. Feature: Weight rating 4–16 lb. Business Impact: Supports a wide range of luminaires without additional hardware, enabling cost-effective stocking. Application: Utility rooms, control panels, area illumination. Feature: NEC/CEC compliance and NEMA 3/3R rating. Business Impact: Ensures regulatory alignment and reliable performance in indoor/outdoor hazardous locations, reducing risk of non-compliance penalties. Application: Hazardous/classified locations across industrial facilities. Feature: Canadian certification support. Business Impact: Validates cross-border usability and reduces qualification time for Canadian projects. Application: Allocation in multi-country projects and shared procurement pools. Insight: The AHG22104 is designed for quick, repeatable installations in demanding environments, aligning with contractor expectations and field realities without compromising safety.
Get a Quick Quote for a Eaton AHG22104
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AHG22104?
Enquire Now
FAQs
AHG22104 is designed for pendant mounting with a 3/4" luminaire stem and 3/4" nipple, supporting luminaires in the 4–16 lb range. When installing in hazardous locations, verify Class I Division 2, Class II Division 2, and Class III suitability, ensure proper enclosure protection (NEMA 3/3R), and use compatible hardware to maintain the cushion support’s integrity during service life.
AHG22104 carries NEC/CEC standards compliance and NEC hazardous rating for Class I Division 2, Class II Division 2, and Class III environments, along with NEMA ratings of 3 and 3R. It is associated with hazardous/classified location approvals and has Canadian certification validation for ballast-free ballast conditions, supporting cross-border installations.
Yes. The AHG22104 uses a 3/4" luminaire stem and 3/4" nipple designed for pendant mounting, enabling straightforward integration with standard luminaires in hazardous locations. Its cushion-type hanger provides flexible yet secure support, reducing the need for additional adapters and simplifying field assemblies.
Best suited for chemical plants, refineries, mining operations, and other industrial facilities with hazardous or classified locations. Its combination of cushion support, robust Feraloy iron alloy, and Class I, Division 2/III and Class II Division 2 ratings ensures reliable luminaire suspension in demanding environments while meeting NEC/CEC requirements.
The cushion hanger reduces vibration-induced wear, while the Feraloy iron alloy resists corrosive exposure, lowering maintenance cycles. Quick pendant installation lowers labor costs, and the wide 4–16 lb luminaire range minimizes the need for multiple hangers, delivering favorable total cost of ownership in facilities with varied lighting needs.
