Eaton AHIGL530P Locking Isolated Ground Plug - UL Listed
Part Number: AHIGL530P
Quick Summary
The Eaton AHIGL530P locking isolated ground plug provides a secure locking connector for industrial power outlets. Traditional nonlocking plugs can loosen under vibration, risking disconnections, downtime, and exposure to energized contacts. This device carries UL/NOM classification and is RoHS compliant, with Federal Specification Classification 6233 01 support, ensuring reliability in demanding environments. Designed for industrial applications with L5-30, back-wiring, and a 125 V rating, it also aligns with 30 A service curves. Utilizing a glass-filled nylon housing and isolated ground feature, it improves safety, reduces maintenance costs, and accelerates panel wiring, offering a durable solution for OEMs and maintenance teams. This combination delivers dependable plug-and-play performance in harsh factory floors and automated cells.
Product Information
Extended Description

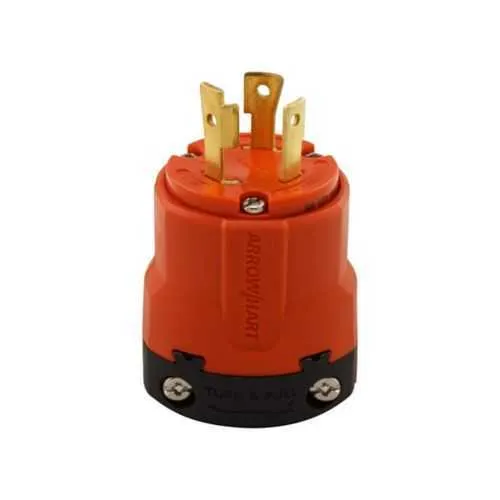

AHIGL530P Eaton: Eaton locking plug, 30A, Industrial, 125V, Orange, Single, L5-30, Two-pole, Three-wire, Glass-filled nylon
Product Name
Eaton Arrow Hart ultra grip locking isolated ground plug
Catalog Number
AHIGL530P
UPC
032664739392
Product Length/Depth
2.28 in
Product Height
4.31 in
Product Width
2.34 in
Product Weight
0.33 lb
Compliances
RoHS Compliant
Certifications
UL NOM Federal Specification Classification 6233 01
Special features
Isolated ground
Type
Locking plug
Amperage Rating
30A
Voltage rating
125 V
Contact material
Brass
Application
Industrial
Device grade
Extra heavy-duty industrial specification grade
Wiring method
Back
Number of wires
Grounding 3
Number Of Poles
Two-pole
Color
Orange
Cord diameter
0.38-1 in (9.5 mm-25.4 mm)
Material
Glass filled nylon
Operating temperature
-40 to 60 °C (-40 to 140 °F)
Allowable wire size
#14-8 AWG
NEMA configuration
L5-30
Design type
Ultra grip
Face/body material
Nylon
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AHIGL530P
Eaton Specification Sheet - AHIGL530P
Feature: Ultra grip locking mechanism provides a secure lock with a positive retention force, reducing unintended disconnections during vibration or movement. Business impact: Fewer power interruptions translate to less equipment wear, shorter restart times, and improved operator safety on heavy machinery. Application: Ideal for industrial welders, conveyors, and automation cells where plug retention is critical. Feature: Isolated ground design protects personnel and sensitive electronics by separating the grounding path from the equipment frame. Business impact: Lower electrical noise and reduced shock risk improve control accuracy and machine uptime. Application: CNC cabinets, robotic cells, and power distribution panels where clean ground references matter. Feature: Glass-filled nylon housing and brass contact inserts combine durability with reliable electrical performance. Business impact: This construction withstands temperatures from -40 to 60 °C, resists impact, and maintains low contact resistance for years. Application: Harsh factory floors, outdoor installations, and industrial facilities requiring robust connectors. Feature: Back wiring and support for #14-8 AWG conductors simplify field installations. Business impact: Reduces installation time, minimizes wiring errors, and supports common wire sizes used in service panels. Application: Control panels, power distribution blocks, and service outlets across manufacturing lines. Feature: L5-30, 30A at 125V, orange color for high visibility aligns with standard industrial plug configurations. Business impact: Enables quick mating with compatible receptacles and reduces mis-wiring during setup. Application: Temporary power for welding, portable tools, and portable automation equipment. Feature: RoHS compliant and UL NOM listed with Federal Specification 6233 01. Business impact: Regulatory alignment simplifies procurement audits and supports sustainability commitments. Application: OEMs and maintenance teams in regulated industries seeking durable, compliant locking devices.
