Eaton AHL1420P Locking plug - cULus NOM
Part Number: AHL1420P-GC1
Quick Summary
The Eaton AHL1420P locking plug provides rugged, back-wired connectivity for L14-20 industrial power connections. Engineers often struggle with secure cord grips and safe disconnection in harsh environments, leading to downtime and safety concerns. This unit carries RoHS compliance and cULus NOM certification, supporting safe operation across global installations. With its Ultra Grip design, nylon housing, and brass contacts, it delivers durable performance under -40 to 60 °C. For procurement, the combination of regulatory compliance and robust wiring methods translates to lower maintenance costs and faster field terminations, while maintaining safety and reliability in critical applications.
Product Information
Extended Description

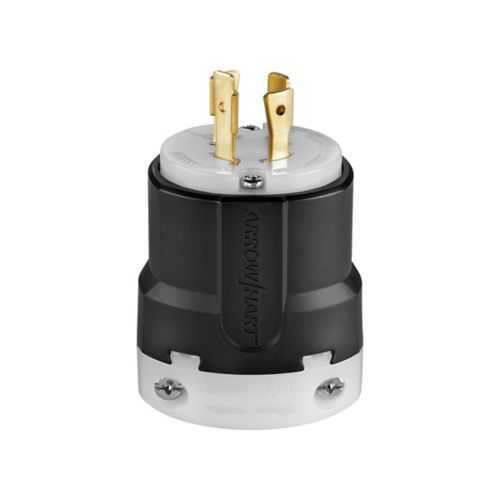

AHL1420P-GC1 Eaton: Eaton locking plug, #14-8 AWG, 20A, Industrial, 125/250V, Back wiring, Black, white, Ultra grip, L14-20, Three-pole, Four-wire, Nylon
Product Name
Eaton Arrow Hart ultra grip locking plug
Catalog Number
AHL1420P
Product Length/Depth
4.19 in
Product Height
2.31 in
Product Width
2.28 in
Product Weight
0.35 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Special features
Locking flanged outlet
Type
Locking plug
Amperage Rating
20A
Voltage rating
125/250 V
Contact material
Brass
Application
Industrial
Device grade
Extra heavy-duty industrial specification grade
Wiring method
Back
Number of wires
Grounding 4
Number Of Poles
Three-pole
Color
White Black
Cord diameter
0.38-1.16 in (9.5-29.4 mm)
Material
Nylon
Operating temperature
-40 to 60 °C (-40 to 140 °F)
Allowable wire size
#16-8 AWG
NEMA configuration
L14-20
Design type
Ultra grip
Face/body material
Nylon
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AHL1420P
Eaton Specification Sheet - AHL1420P
Ultra grip locking plug design provides secure interlocks that resist vibration, reducing unscheduled downtime on conveyors, robotics, and CNC equipment. The back wiring method supports reliable terminations with #16-8 AWG conductors, facilitating faster installation and lowering field labor costs in control panels and power distribution boxes. With a three-pole, four-wire L14-20 configuration rated at 20A and 125/250V, it delivers standardized, safe power connections for industrial equipment and temporary power setups, improving overall plant reliability. The nylon body and face offer robust resistance to chemicals and environmental exposure, enabling operation from -40 to 60 °C in dirty or outdoor environments with minimal maintenance. RoHS compliance and cULus NOM certification help ensure regulatory alignment and safer audits, reducing compliance risk and streamlining procurement. The Ultra Grip feature, along with easy color-coded compatibility (White/Black), enhances wiring accuracy and installation speed, delivering measurable productivity gains for teams handling high-mix, high-volume electrical installations.
