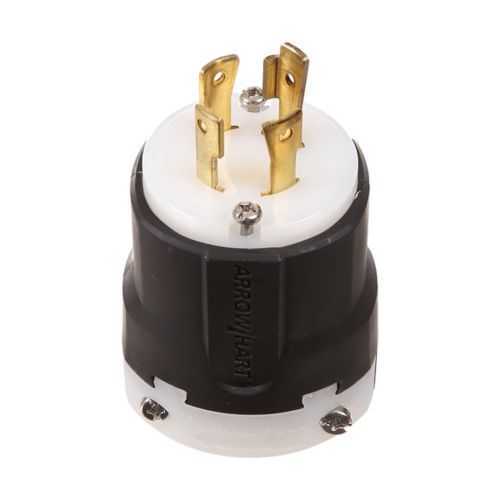

Eaton AHL1430P Locking Plug - L14-30 cULus NOM
Part Number: AHL1430P-GC1
Quick Summary
The Eaton AHL1430P locking plug provides reliable, high-current power connections for industrial L14-30 applications. In harsh environments with vibration, standard outlets can loosen, interrupt power, and increase maintenance costs. This plug is RoHS compliant and cULus listed NOM, helping you meet safety and environmental requirements. Designed for industrial power distribution, it supports back wiring and four-wire configurations, enabling safe, quick field terminations. By choosing this locking plug, you gain durable nylon housing, easy installation, and long-term reliability, reducing rework and downtime. For data centers and manufacturing floors with frequent cord movement, it minimizes disruptive disconnections and ensures consistent power delivery.
Product Information
Extended Description
AHL1430P-GC1 Eaton: Eaton locking plug, #16-8 AWG, 30A, Industrial, 125/250V, Back wiring, Black, white, Ultra grip, L14-30, Three-pole, Four-wire, Nylon
Product Name
Eaton Arrow Hart ultra grip locking plug
Catalog Number
AHL1430P
Product Length/Depth
4.19 in
Product Height
2.31 in
Product Width
2.28 in
Product Weight
0.39 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Special features
Locking flanged outlet
Type
Locking plug
Amperage Rating
30A
Voltage rating
125/250 V
Contact material
Brass
Application
Industrial
Device grade
Extra heavy-duty industrial specification grade
Wiring method
Back
Number of wires
Grounding 4
Number Of Poles
Three-pole
Color
White Black
Cord diameter
0.38-1.16 in (9.5-29.4 mm)
Material
Nylon
Operating temperature
-40 to 60 °C (-40 to 140 °F)
Allowable wire size
#16-8 AWG
NEMA configuration
L14-30
Design type
Ultra grip
Face/body material
Nylon
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AHL1430P
Eaton Specification Sheet - AHL1430P
Feature: Ultra grip locking design with a durable locking flange. Business Impact: Delivers secure, vibration-resistant connections that minimize unplanned power losses. Application: Ideal for control panels, welding stations, and portable equipment in harsh industrial settings. Feature: L14-30 three-pole, four-wire configuration rated at 30A and 125/250V. Business Impact: Supports common 120/240V feeds with robust capacity, enabling fewer components and simpler distribution. Application: Generator feeds, machine tool power distribution, and industrial power circuits. Feature: Back wiring with #16-8 AWG capacity and 0.38-1.16 in cord diameter. Business Impact: Faster field terminations, reduced conductor fatigue, and lower install time. Application: Panel terminations and retrofit projects. Feature: Nylon body and face provide rugged durability with a wide operating temperature range of -40 to 60 C. Business Impact: Excellent environmental tolerance reduces maintenance and replacement cycles. Application: Outdoor enclosures, cold environments, and hot industrial plants. Feature: RoHS compliant and cULus NOM certified. Business Impact: Meets safety and environmental regulations, reducing compliance risk and enabling easier procurement. Application: Facilities with strict regulatory requirements. Feature: Extra heavy-duty industrial specification grade with locking flange for secure mounting. Business Impact: Enhances durability under repeated connections and disconnections. Application: Heavy-duty equipment, conveyors, and material handling systems.
Get a Quick Quote for a Eaton AHL1430P-GC1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AHL1430P-GC1?
Enquire Now
FAQs
The AHL1430P supports L14-30 connections with three poles and four wires for 120/240V service at up to 30A. It uses back wiring compatible with #16-8 AWG conductors and a nylon housing, making it suitable for control panels, generator feeds, and distribution blocks while reducing wiring errors and easing installation.
Ultra Grip provides a rugged locking mechanism with a reinforced flange that resists loosening under vibration. This minimizes unintended disconnections, lowers downtime, and enhances operator safety in conveyors, presses, and other high-vibration machinery.
Yes. The plug is designed for back wiring and accommodates #16-8 AWG conductors, with a cord diameter range of 0.38 to 1.16 inches. This simplifies field terminations, supports retrofit projects, and facilitates clean, reliable connections in panels and fixed installations.
The AHL1430P is RoHS compliant and cULus Listed NOM, ensuring regulatory alignment for environmental and safety standards in North American facilities. These certifications support procurement, inspections, and compliance reporting for regulated equipment.
locking plug reduces downtime from accidental unplugging, improves safety, and lowers maintenance costs by maintaining continuous power delivery. Although initial cost is higher than standard outlets, uptime gains, reduced rework, and easier compliance documentation deliver favorable ROI over typical equipment lifecycles.
