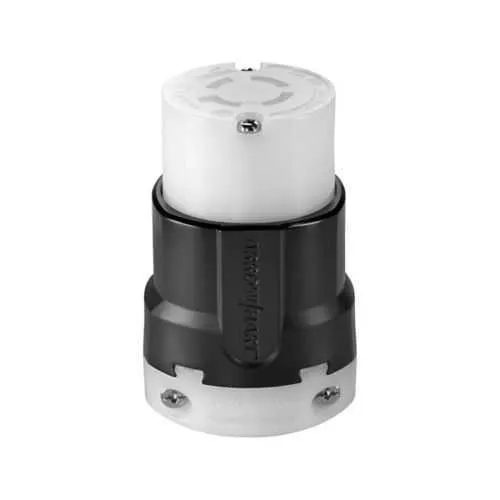

Eaton AHL1520C Locking Connector - cULus Listed
Part Number: AHL1520C-GC1
Quick Summary
Eaton AHL1520C Locking Connector provides secure 3-phase power connections for industrial equipment in harsh environments. Many buyers struggle with unreliable locking mechanisms that fail under vibration or with back-wiring configurations that complicate field terminations. RoHS compliant and cULus listed, this rugged, industrial-grade locking device meets critical safety and environmental standards while supporting L15-20 configurations. The nylon Ultra Grip body and back-wiring wiring method enable fast, repeatable terminations, reducing installation time and field errors. For buyers optimizing uptime and maintenance costs, this connector delivers dependable performance in power distribution, leveraging compatibility with standard 20A, 250V industrial circuits and 4-wire, four-conductor layouts.
Product Information
Extended Description
AHL1520C-GC1 Eaton: Eaton Arrow Hart ultra grip locking connector, #14-8 AWG, 20A, Industrial, 250V, Back wiring, Black, white, Ultra grip, L15-20, Three-pole, Four-wire, Nylon
Product Name
Eaton Arrow Hart ultra grip Locking connector
Catalog Number
AHL1520C
Product Length/Depth
4.19 in
Product Height
2.31 in
Product Width
2.28 in
Product Weight
0.45 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Special features
Locking receptacle
Type
Locking connector
Amperage Rating
20A
Voltage rating
3Ø 250 V
Contact material
Brass
Application
Industrial
Device grade
Extra heavy-duty industrial specification grade
Wiring method
Back
Number of wires
Grounding 4
Number Of Poles
Three-pole
Color
White Black
Cord diameter
0.38-1.16 in (9.5-29.4 mm)
Material
Nylon
Operating temperature
-40 to 60 °C (-40 to 140 °F)
Allowable wire size
#16-8 AWG
NEMA configuration
L15-20
Design type
Ultra grip
Face/body material
Nylon
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AHL1520C
Eaton Specification Sheet - AHL1520C
Ultra Grip locking receptacle delivers secure mating under vibration, reducing nuisance disconnects and safeguarding critical loads in manufacturing lines. Business impact: lower downtime and fewer repair calls, enabling faster start-ups and improved shift throughput. Application: ideal for L15-20, three-pole four-wire power distribution in industrial automation panels. The back-wiring design accepts #16-8 AWG conductors, streamlining field terminations and reducing installation time per outlet. This translates to measurable labor savings on large-scale deployments and easier retrofit projects. Nylon body provides resistance to impact, chemicals, and moisture, extending service life in factory floors and outdoor enclosures. In practice, this means lower replacement costs and less maintenance, even in aggressive environments. Operating temperature ranges from -40 to 60 °C, ensuring reliable operation across indoor plants and exposed installations. The device is RoHS compliant and cULus listed, simplifying regulatory compliance and audits while supporting global procurement standards. With a compact footprint (4.19 in length, 2.28 in width, 2.31 in height) and a 0.45 lb weight, it fits standard electrical panels and cord grips without requiring extensive rack space.
Get a Quick Quote for a Eaton AHL1520C-GC1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AHL1520C-GC1?
Enquire Now
FAQs
Start by confirming the back-wiring wiring method and conductor size (#16-8 AWG). Strip the conductors to the manufacturer’s specified length, insert into the appropriate terminals, and tighten to the recommended torque to ensure solid contact. Verify the L15-20 three-pole configuration, then mate with the corresponding receptacle, ensuring a secure, locked connection before energizing the circuit.
The AHL1520C is rated for -40 to 60 °C (-40 to 140 °F), enabling reliable performance in cold facilities and hot production zones. Its nylon Ultra Grip housing provides rugged durability against impact and moisture, while RoHS compliance minimizes hazardous material concerns in regulated environments.
Yes. Designed as an L15-20 locking connector, it supports three-pole four-wire (grounding) configurations at 20A and 250V. Back wiring simplifies field terminations, and the locking mechanism ensures secure mating in vibration-prone environments commonly found in manufacturing and process automation.
This connector is RoHS compliant and cULus listed. RoHS ensures restriction of hazardous substances, supporting safer product stewardship, while cULus listing confirms compliance with applicable North American safety standards for electrical equipment, facilitating procurement and reducing regulatory risk in industrial deployments.
The locking feature reduces accidental disconnections, improving uptime for critical equipment. Back wiring simplifies terminations, cutting installation time and labor costs. Nylon construction minimizes corrosion and wear, extending service life and lowering replacement and maintenance expenses across large-scale power-distribution installations.
