Eaton AHL1530C Locking Connector - RoHS Compliant
Part Number: AHL1530C-GC1
Quick Summary
The Eaton AHL1530C Locking Connector delivers secure, high-current power connections for industrial equipment. In harsh environments, vibration and misalignment can compromise reliability and safety, making a robust locking solution essential. This locking device is RoHS compliant and cULus listed, offering additional reliability for global installations. Designed with a durable nylon housing and Ultra Grip mechanism, it provides a secure back-wiring connection while simplifying field wiring. For integrators, its L15-30 three-pole, four-wire configuration reduces wiring complexity and downtime, delivering consistent performance in demanding manufacturing and processing settings. This combination of quality, compliance, and practical installability helps businesses improve uptime and reduce total cost of ownership.
Product Information
Extended Description

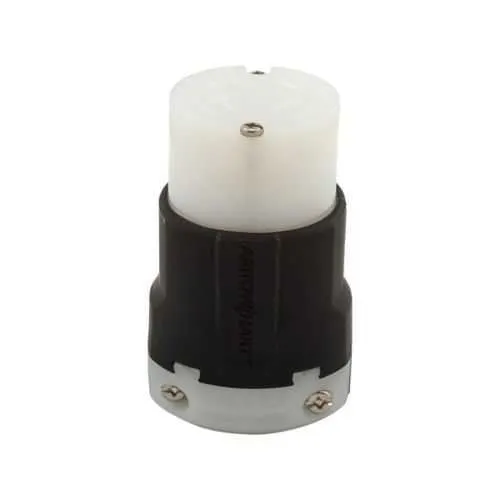

AHL1530C-GC1 Eaton: Eaton Arrow Hart ultra grip locking connector, #16-8 AWG, 30A, Industrial, 250V, Back wiring, Black, white, Ultra grip, L15-30, Three-pole, Four-wire, Nylon
Product Name
Eaton Arrow Hart ultra grip Locking connector
Catalog Number
AHL1530C
Product Length/Depth
4.19 in
Product Height
2.31 in
Product Width
2.28 in
Product Weight
0.5 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Special features
Locking receptacle
Type
Locking connector
Amperage Rating
30A
Voltage rating
3Ø 250 V
Contact material
Brass
Application
Industrial
Device grade
Extra heavy-duty industrial specification grade
Wiring method
Back
Number of wires
4 Grounding
Number Of Poles
Three-pole
Color
White Black
Cord diameter
0.38-1.16 in (9.5-29.4 mm)
Material
Nylon
Operating temperature
-40 to 60 °C (-40 to 140 °F)
Allowable wire size
#16-8 AWG
NEMA configuration
L15-30
Design type
Ultra grip
Face/body material
Nylon
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AHL1530C
Eaton Specification Sheet - AHL1530C
Feature: Ultra grip locking mechanism provides a secure, vibration-resistant connection. Business Impact: Minimizes arc faults and accidental disengagement, reducing unplanned downtime. Application: Ideal for motors, welders, and heavy machinery subject to vibration. Feature: 30A, 250V rating supports heavy loads without frequent upgrades. Business Impact: Increases preventative maintenance intervals and lowers wiring changes. Application: Industrial power distribution panels and three-phase equipment. Feature: Nylon housing offers chemical and impact resistance with lightweight handling. Business Impact: Easier handling in tight panels and harsh environments, reducing install time. Application: Outdoor or factory floor installations. Feature: Back wiring and 0.38–1.16 in cord diameter compatibility streamline field terminations. Business Impact: Shortens terminations and improves installer confidence. Application: Quick upgrades and retrofit projects. Feature: RoHS compliant and cULus listed certifications provide regulatory assurance. Business Impact: Simplifies compliance documentation and approval cycles in global facilities. Application: OEM builds and controlled environments requiring formal certifications. Feature: L15-30 3Ø configuration with four conductors and grounding. Business Impact: Clear, standardized configuration reduces misconnection risk and supports safe power distribution. Application: Industrial drives, pumps, and three-phase systems.
Get a Quick Quote for a Eaton AHL1530C-GC1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AHL1530C-GC1?
Enquire Now
FAQs
The AHL1530C supports back wiring with four conductors, including a grounding path, to accommodate a three-phase, four-wire setup. Installers should prepare #16-8 AWG conductors, secure each wire to the appropriate terminal, and verify tightness to maintain the Ultra Grip locking mechanism. This method reduces field labor and promotes a clean, reliable connection in industrial panels.
The AHL1530C is designed specifically for L15-30 configurations, featuring three poles and four wires with a 30A, 250V rating. Its Nylon housing and Ultra Grip locking provide vibration resistance and secure mating in demanding environments, making it a dependable choice for motors, drives, and power distribution equipment.
Yes. The connector is RoHS compliant and cULus listed NOM, which supports regulatory compliance across North American and international facilities. Additional safety attributes include a robust nylon body, back-wiring design, and UL safety compatibility, all contributing to safer, enduring industrial installations.
This locking connector excels in industrial equipment applications such as motors, pumps, and welding machines where secure three-phase connections are critical. Its UL-listed certifications, temperature tolerance from -40 to 60 °C, and 0.38–1.16 in cord diameter compatibility make it suitable for harsh factory floors, outdoor facilities, and high-durability power distribution panels.
The AHL1530C provides faster terminations with back wiring, reducing field labor and wiring errors. Its locking mechanism minimizes disengagements due to vibration, lowering downtime and maintenance costs. The combination of RoHS compliance and cULus listing also streamlines regulatory audits and supplier qualification, supporting long-term cost efficiency.
