Eaton AHL1630P locking plug - cULus Listed
Part Number: AHL1630P-GC1
Quick Summary
The Eaton AHL1630P locking plug is a rugged three‑phase locking connector designed for industrial power networks in harsh environments. It helps technicians avoid costly downtime by preventing accidental disconnections during vibration and high-demand cycles. With RoHS compliance and cULus listing, it supports 480 V three‑phase systems while meeting strict safety standards. Designed for back wiring and heavy-duty use, this unit delivers reliable performance across demanding installations. The Nylon Ultra Grip construction combines durability with easy field maintenance, making it a practical choice for OEMs, electrical contractors, and maintenance teams seeking long-term value and dependable operation.
Product Information
Extended Description

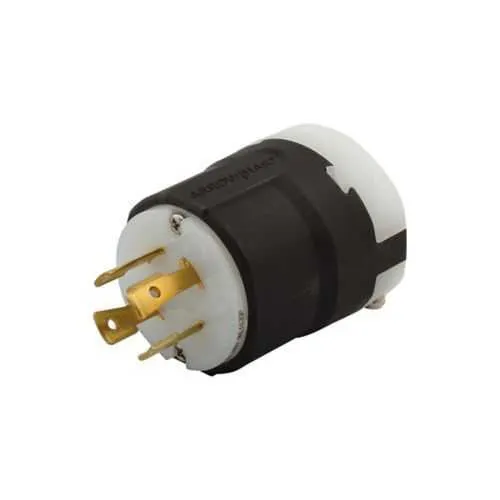

AHL1630P-GC1 Eaton: Eaton locking plug, #16-8 AWG, 30A, Industrial, 480V, Back wiring, Black, white, Ultra grip, L16-30, Three-pole, Four-wire, Nylon
Product Name
Eaton Arrow Hart ultra grip locking plug
Catalog Number
AHL1630P
Product Length/Depth
4.19 in
Product Height
2.31 in
Product Width
2.28 in
Product Weight
0.4 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Special features
Locking flanged outlet
Type
Locking plug
Amperage Rating
30A
Voltage rating
3Ø 480 V
Contact material
Brass
Application
Industrial
Device grade
Extra heavy-duty industrial specification grade
Wiring method
Back
Number of wires
4 Grounding
Number Of Poles
Three-pole
Color
Black White
Cord diameter
0.38-1.16 in (9.5-29.4 mm)
Material
Nylon
Operating temperature
-40 to 60 °C (-40 to 140 °F)
Allowable wire size
#16-8 AWG
NEMA configuration
L16-30
Design type
Ultra grip
Face/body material
Nylon
Arrow Hart - Connecting Safety to Reliability since 1890
Industrial grade L16-30 locking devices spec sheet
Industrial grade L16-30 locking devices spec sheet
Feature → Business Impact → Application: The AHL1630P uses a 30 A amperage rating and 480 V three-phase capability, delivering robust power delivery for industrial equipment while reducing voltage drop and overheating risks in demanding environments. Benefit: Improved system reliability and safer disconnections during maintenance; Application: plant floors, manufacturing lines, and heavy equipment enclosures. Feature → Business Impact → Application: Back wiring with four conductors (three power lines plus ground) enables faster, cleaner installations and minimizes field wiring errors. Benefit: Shorter commissioning times and lower labor costs; Application: panel terminations, retrofit projects, and OEM harnessing. Feature → Business Impact → Application: Ultra Grip locking mechanism and nylon body offer superior vibration resistance and long service life. Benefit: Fewer loosening incidents and extended equipment uptime; Application: conveyors, presses, and robotics. Feature → Business Impact → Application: NEMA L16-30 configuration and color options (Black/White) ensure correct mating and easy identification. Benefit: Safer, compliant connections with reduced mis-plugging; Application: 480 V industrial power outlets across sectors. Feature → Business Impact → Application: RoHS compliant and cULus Listed certification provide regulatory peace of mind and utility compatibility. Benefit: Compliance assurance for maintenance budgets and supplier audits; Application: facilities subject to RoHS and UL-wide safety requirements.
