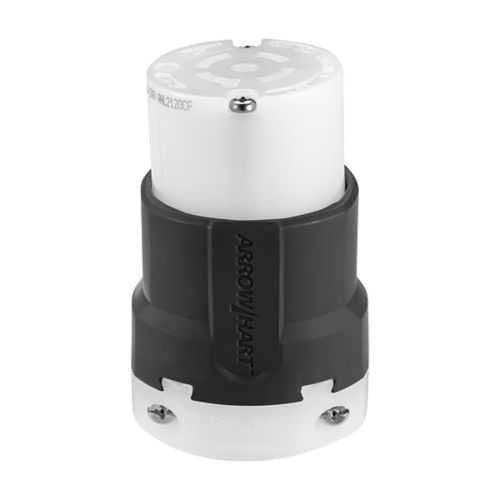

Eaton AHL2120CF Locking Connector - RoHS Compliant
Part Number: AHL2120CF
Quick Summary
The Eaton AHL2120CF locking connector is a secure, back-wired power solution designed for industrial control panels and rugged equipment housings. Designers and maintenance teams often struggle with reliable terminations and accidental disconnections in demanding environments, where a loosened connection can halt production. This device carries RoHS compliance and NOM cULus listing, reflecting its regulatory readiness and safety reliability, along with a NEMA L21-20 configuration for versatile three-phase power. With ultra grip technology and a robust nylon body, it supports back wiring and flat-cable installations, delivering consistent contact integrity. The combination of durability, regulatory alignment, and installation simplicity translates into reduced downtime and lower lifecycle costs for industrial facilities.
Product Information
Extended Description
AHL2120CF Eaton: Eaton Arrow Hart ultra grip locking connector, Flat cable, #16-8 AWG, 20A, Industrial, 120/208V, Back wiring, Black, white, Ultra grip, L21-20, Four-pole, Five-wire, Nylon
Product Name
Eaton Arrow Hart ultra grip Locking connector
Catalog Number
AHL2120CF
UPC
032664738692
Product Length/Depth
4.19 in
Product Height
2.31 in
Product Width
2.28 in
Product Weight
0.45 lb
Compliances
RoHS Compliant
Certifications
NOM cULus Listed
Special features
Flat cable
Type
Locking connector
Amperage Rating
20A
Voltage rating
3ØY 120/208 V
Contact material
Brass
Application
Industrial
Device grade
Extra heavy-duty industrial specification grade
Wiring method
Back
Number of wires
5 Grounding
Number Of Poles
Four-pole
Color
Black White
Cord diameter
Maximum 5-wire #10 AWG flat cable
Material
Nylon
Operating temperature
-40 to 60 °C (-40 to 140 °F)
Allowable wire size
#14-8 AWG
NEMA configuration
L21-20
Design type
Ultra grip
Face/body material
Nylon
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AHL2120CF
Eaton Specification Sheet - AHL2120CF
Ultra grip locking design provides a secure engagement that resists vibration and accidental pullouts, reducing unplanned downtime in motors, drives, and equipment housings. In real-world panels, this means fewer reseats after maintenance and longer service intervals, improving overall equipment effectiveness and uptime. Flat cable compatibility with back wiring streamlines terminations, enabling neat, reliable harnesses while cutting installation time and miswiring risks in tight control cabinets and machine enclosures. Four-pole five-wire configuration delivering 120/208V at 20A aligns with common industrial power distribution, supporting motor starters, drives, and feeders while enabling plug-and-play integration with existing L21-20 systems. The nylon housing and brass contacts deliver robust durability with corrosion resistance, allowing reliable operation from -40 to 60 C in harsh plants and outdoor-rated environments. RoHS compliance and NOM cULus listing reduce regulatory risk for global manufacturing, while back-wiring and flat-cable compatibility simplify field upgrades and panel retrofits. This device is designed for industrial duty, delivering predictable performance and lower maintenance costs through a proven locking mechanism and high-quality materials.
