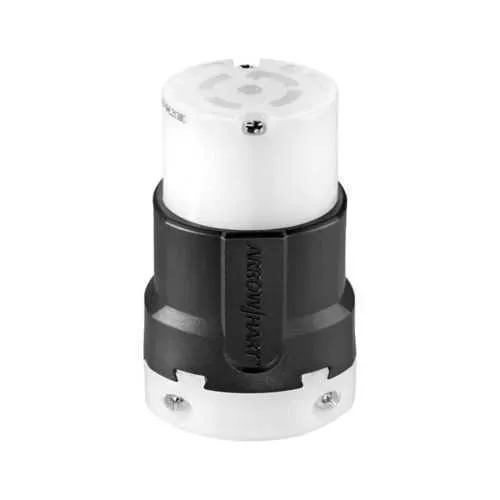

Eaton AHL2130C Locking Connector - Ultra Grip
Part Number: AHL2130C-GC1
Quick Summary
The Eaton AHL2130C locking connector delivers secure, high-current power connections for industrial equipment and control panels. In harsh environments, loose connections cause downtime and voltage drop, making reliability a top priority. RoHS compliant and NOM/cULus listed help ensure regulatory compliance and safer, reliable operation. Its ultra grip locking receptacle and 4-pole, L21-30 configuration support 3ØY 120/208 V service, while the nylon body stands up to demanding industrial use. Choosing this solution reduces inventory variety and speeds maintenance, enabling better uptime and total cost of ownership.
Product Information
Extended Description
AHL2130C-GC1 Eaton: Eaton Arrow Hart ultra grip locking connector, #16-8 AWG, 30A, Industrial, 120/208V, Back wiring, Black, white, Ultra grip, L21-30, Four-pole, Five-wire, Nylon
Product Name
Eaton Arrow Hart ultra grip Locking connector
Catalog Number
AHL2130C
Product Length/Depth
4.19 in
Product Height
2.31 in
Product Width
2.28 in
Product Weight
0.55 lb
Compliances
RoHS Compliant
Certifications
NOM cULus Listed
Special features
Locking receptacle
Type
Locking connector
Amperage Rating
30A
Voltage rating
3ØY 120/208 V
Contact material
Brass
Application
Industrial
Device grade
Extra heavy-duty industrial specification grade
Wiring method
Back
Number of wires
Grounding 5
Number Of Poles
Four-pole
Color
Black White
Cord diameter
0.38-1.16 in (9.5-29.4 mm)
Material
Nylon
Operating temperature
-40 to 60 °C (-40 to 140 °F)
Allowable wire size
#16-8 AWG
NEMA configuration
L21-30
Design type
Ultra grip
Face/body material
Nylon
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AHL2130C
Eaton Specification Sheet - AHL2130C
Feature: Ultra Grip locking receptacle provides a secure, vibration-resistant connection. Business Impact: Reduces unexpected disconnections, minimizing downtime and maintenance costs. Application: Ideal for motors, conveyors, and heavy equipment in manufacturing environments. Feature: Back wiring with generous conductor range (#16-8 AWG) and cord diameter tolerance (0.38-1.16 in) simplifies field terminations. Business Impact: Shortens installation time and lowers labor costs, while preserving terminations under dynamic loads. Application: Control panels and power distribution blocks where fast, reliable terminations are critical. Feature: Nylon housing rated for -40 to 60 °C and 30A, 120/208V operation provides durable service in harsh plants. Business Impact: Extended service life and reduced replacement cycles, improving uptime. Application: Industrial environments with wide temperature swings. Feature: Four-pole, L21-30 configuration supports safe 3ØY distribution with grounding. Business Impact: Enhances safety and compatibility across common industrial power standards. Application: Equipment hookups in OEM and retrofit projects. Feature: RoHS compliant and NOM/cULus listed certifications deliver regulatory confidence. Business Impact: Simplifies compliance workflows and risk management for procurement. Application: Panel builders and integrators targeting regulated environments.
Get a Quick Quote for a Eaton AHL2130C-GC1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AHL2130C-GC1?
Enquire Now
FAQs
The AHL2130C supports back wiring with a cord diameter range of 0.38-1.16 inches and accepts #16-8 AWG conductors. It is a four-pole, five-wire device with grounding, configured for L21-30 (NEMA) sockets. This design simplifies field terminations and reduces terminal crowding inside panels. Use compatible tools and follow the Eaton datasheet for torque and terminal guidelines.
The AHL2130C is rated for 30A and 120/208V, designed as a four-pole, locking device with back wiring capability. It supports 3ØY configurations and a grounding conductor, suitable for industrial power distribution in demanding environments. This combination delivers dependable current handling while maintaining a compact footprint in control panels.
Yes. With a nylon body rated from -40 to 60 °C, 30A electrical capacity, and a locking mechanism, the AHL2130C is well-suited for industrial control panels and equipment enclosures. Its L21-30 configuration and robust construction improve reliability in vibration-prone environments, while back-wiring simplifies panel assembly and reduces installation time.
The AHL2130C carries RoHS compliance and NOM/cULus listing, ensuring regulatory alignment for many global markets. These certifications support safer material content and electrical safety compliance, helping engineers meet end-user requirements and streamline procurement and installation in regulated facilities.
Ultra Grip locking connectors like the AHL2130C reduce unplanned downtime by securing connections in high-vibration applications. The combination of a locking mechanism, robust nylon housing, and back-wiring capability lowers maintenance labor, extends service life, and simplifies field terminations. In practice, this translates to faster startups, fewer rework cycles, and a lower total cost of ownership for industrial facilities.
