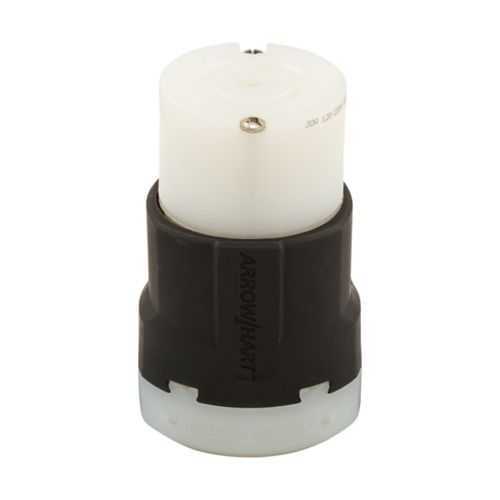

Eaton AHL2130CF Locking Connector - IP67
Part Number: AHL2130CF
Quick Summary
Eaton AHL2130CF locking connector delivers secure 30A, 120/208V three-phase power for industrial equipment. Installation downtime and miswiring are costly, so this rugged locking solution reduces the risk of accidental disconnections during operation. With IP67 sealing, RoHS compliance, and NOM cULus listing, it meets harsh industry standards while supporting L21-30 configurations. Designed for industrial panels and motor control centers, the ultra grip design improves mating reliability and field serviceability, helping shorten commissioning and lower lifecycle costs.
Product Information
Extended Description
AHL2130CF Eaton: Conn 30A120/208V3PH4P5W Lkg FlatCable GY - AHL2130CF
Product Name
Eaton Arrow Hart ultra grip Locking connector
Catalog Number
AHL2130CF
UPC
032664738715
Product Length/Depth
4.19 in
Product Height
2.31 in
Product Width
2.28 in
Product Weight
0.45 lb
Compliances
RoHS Compliant
Certifications
NOM cULus Listed
Degree of protection
IP67
Special features
Flat cable
Type
Locking connector
Amperage Rating
30A
Voltage rating
3ØY 120/208 V
Contact material
Brass
Application
Industrial
Device grade
Extra heavy-duty industrial specification grade
Wiring method
Back
Number of wires
5 Grounding
Number Of Poles
Four-pole
Color
White Black
Cord diameter
Maximum 5-wire #10 AWG flat cable
Material
Nylon
Operating temperature
-40 to 60 °C (-40 to 140 °F)
Allowable wire size
#14-8 AWG
NEMA configuration
L21-30
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Design type
Ultra grip
Face/body material
Nylon
Arrow Hart - Connecting Safety to Reliability since 1890
Industrial grade L21-30 locking devices spec sheet
Industrial grade L21-30 locking devices spec sheet
Feature: 30A amperage rating and 120/208V three-phase capability → Business Impact: Delivers required power with margin, reducing risk of overloading and outages → Application: Motors, drives, and automation panels in manufacturing environments. Feature: Back wiring with 5 conductors (including grounding) and compatibility with #14-8 AWG wires → Business Impact: Simplifies field termination, improves torque retention, lowers wiring errors → Application: Control cabinets and junction boxes in rugged facilities. Feature: IP67 protection and nylon body → Business Impact: Guards against dust and water ingress, extending service life in washdown areas → Application: Food & beverage, chemical processing, and outdoor installations. Feature: Flat cable compatibility up to maximum 5-wire #10 AWG → Business Impact: Frees up routing options and reduces cabling complexity → Application: Industrial automation harnesses and conveyor systems. Feature: NEMA L21-30 configuration and ultra grip design → Business Impact: Ensures secure mating under vibration, lowers maintenance downtime → Application: Heavy-duty power distribution and motor control centers. Feature: RoHS compliant and NOM cULus listed → Business Impact: Supports global regulatory compliance, enabling faster procurement → Application: OEM assemblies and retrofit projects in regulated industries.
