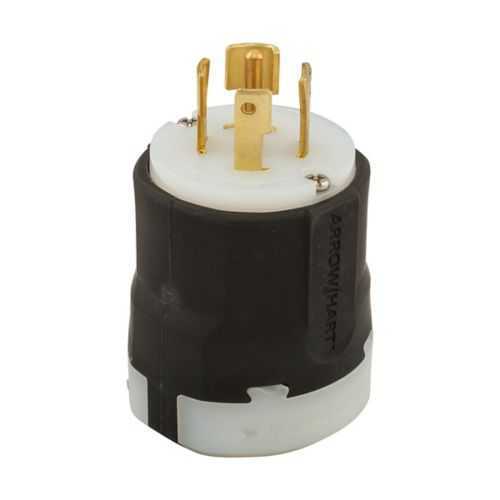

Eaton AHL2130PF Locking Plug - cULus Listed
Part Number: AHL2130PF
Quick Summary
The Eaton AHL2130PF locking plug is an industrial-grade connector engineered for 30A, four-pole L21-30 power distribution in demanding environments. This design addresses common installation pain points such as cramped wiring spaces and back-wiring limitations, delivering a reliable termination that reduces field downtime. It carries RoHS compliance and NOM cULus listing, reinforcing regulatory alignment while the nylon body and ultra grip mechanism enhance durability under vibration and frequent disconnect/reconnect cycles. By combining robust electrical performance with straightforward installation, this locking plug delivers measurable business value for panel builders, OEMs, and maintenance teams seeking consistent uptime and safer, compliant connections.
Product Information
Extended Description
AHL2130PF Eaton: Eaton locking plug, Flat cable, #16-8 AWG, 30A, Industrial, 120/208V, Back wiring, Black, white, Ultra grip, L21-30, Four-pole, Five-wire, Nylon
Product Name
Eaton Arrow Hart ultra grip locking plug
Catalog Number
AHL2130PF
UPC
032664738722
Product Length/Depth
4.19 in
Product Height
2.31 in
Product Width
2.28 in
Product Weight
0.45 lb
Compliances
RoHS Compliant
Certifications
NOM cULus Listed
Special features
Flat cable
Type
Locking plug
Amperage Rating
30A
Voltage rating
3ØY 120/208 V
Contact material
Brass
Application
Industrial
Device grade
Extra heavy-duty industrial specification grade
Wiring method
Back
Number of wires
5 Grounding
Number Of Poles
Four-pole
Color
White Black
Cord diameter
Maximum 5-wire #10 AWG flat cable
Material
Nylon
Operating temperature
-40 to 60 °C (-40 to 140 °F)
Allowable wire size
#14-8 AWG
NEMA configuration
L21-30
Design type
Ultra grip
Face/body material
Nylon
Arrow Hart - Connecting Safety to Reliability since 1890
Industrial grade L21-30 locking devices spec sheet
Industrial grade L21-30 locking devices spec sheet
Feature: Ultra grip locking design provides a secure, vibration-resistant connection. Business Impact: Reduces nuisance disconnections in motors and pumps, improving uptime metrics. Application: Suitable for high-vibration industrial equipment in manufacturing lines. Feature: Back wiring support with flat cable up to five conductors simplifies terminations. Business Impact: Cuts installation time and labor costs while ensuring consistent conductor seating. Application: Ideal for equipment with flat cable harnesses and multi-wire connections. Feature: Nylon body with two-tone color options (White/Black) for visibility and durability. Business Impact: Improves field identification and resistance to environmental exposure, lowering miswiring risk. Application: Control panels and outdoor installations where visibility matters. Feature: Operating range -40 to 60 °C (-40 to 140 °F) enables operation in (-) temperatures and hot environments. Business Impact: Extends serviceable life across diverse climates, reducing replacement cycles. Application: Industrial plants with wide ambient temperature swings. Feature: NEMA L21-30 configuration, four-pole, five-wire arrangement with back wiring. Business Impact: Enables standardized, plug-and-play power distribution across compatible equipment. Application: Industrial power distribution systems and machine tools. Feature: Compliance: RoHS, NOM, cULus Listed. Business Impact: Ensures regulatory alignment and audit readiness, lowering risk and potential downtime due to non-compliance. Application: OEM assemblies and repair operations in regulated facilities.
Get a Quick Quote for a Eaton AHL2130PF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AHL2130PF?
Enquire Now
FAQs
Yes. The AHL2130PF supports back wiring and is suitable for nominal wire sizes #14-8 AWG, including flat cable up to five conductors. For best results, route conductors cleanly, insert into the back-wire terminals as shown in the datasheet, and ensure secure seating to maintain the 30A, 120/208V performance. Confirm conductor insulation and diameter are within the specified limits before finalizing the connection.
The device is a four-pole, five-wire locking plug configured for L21-30 with a 30A current rating and a voltage rating of 120/208V. It uses brass contact material and nylon housing, supports back wiring, and accepts up to #14-8 AWG conductors. It is designed for industrial use and operates from -40 to 60 °C, providing robust performance in harsh environments.
This locking plug excels in industrial power distribution across manufacturing lines, equipment racks, and control panels requiring secure, high-current connections. Its L21-30, four-pole configuration is common in heavy machinery, pumps, and motors deployed in environments with vibration, dust, or wide temperature ranges, contributing to safer, more reliable electrical distributions.
The AHL2130PF carries RoHS compliance and NOM cULus Listed certification, signaling adherence to environmental and safety standards. These certifications support regulatory alignment for electrical assemblies in many regions and help with compliance verification during audits and maintenance cycles.
Ultra Grip locking reduces the likelihood of accidental disconnects in high-vibration environments, lowering downtime costs and improving equipment availability. Combined with back-wired flat cable terminations and a durable nylon body, it minimizes rework, speeds up servicing, and extends service life for power distribution assemblies in demanding facilities.
