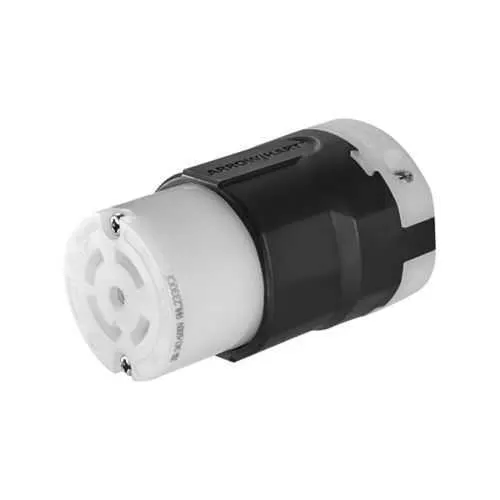

Eaton AHL2330CF Locking Connector - Ultra grip, RoHS
Part Number: AHL2330CF
Quick Summary
AHL2330CF locking connector from Eaton delivers secure, back-wiring connections for industrial power distribution. In demanding panels, loose terminations and mismatched cable sizes slow maintenance and raise failure risk. It's RoHS compliant and cULus listed, with a wide operating range of -40 to 60 °C, suitable for industrial motor control and harsh environments. Designed for four-pole, five-wire configurations with flat cable, this Ultra Grip device accepts #16-8 AWG cables and features back wiring for rapid field terminations, reducing install time and operator error. This combination of rugged performance and reliable safety certifications helps teams meet stringent compliance while maintaining uptime and efficiency across automation projects.
Product Information
Extended Description
AHL2330CF Eaton: Eaton Arrow Hart ultra grip locking connector, Flat cable, #16-8 AWG, 30A, Industrial, 347/600V, Back wiring, Black, white, Ultra grip, L23-30, Four-pole, Five-wire, Nylon
Product Name
Eaton Arrow Hart ultra grip Locking connector
Catalog Number
AHL2330CF
UPC
032664738753
Product Length/Depth
4.19 in
Product Height
2.31 in
Product Width
2.28 in
Product Weight
0.45 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Special features
Flat cable
Type
Locking connector
Amperage Rating
30A
Voltage rating
3ØY 347/600 V
Contact material
Brass
Application
Industrial
Device grade
Extra heavy-duty industrial specification grade
Wiring method
Back
Number of wires
Grounding 5
Number Of Poles
Four-pole
Color
Black White
Cord diameter
Maximum 5-wire #10 AWG flat cable
Material
Nylon
Operating temperature
-40 to 60 °C (-40 to 140 °F)
Allowable wire size
#14-8 AWG
NEMA configuration
L23-30
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Design type
Ultra grip
Face/body material
Nylon
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AHL2330CF
Eaton Specification Sheet - AHL2330CF
Feature → Ultra Grip locking mechanism provides high pull-out resistance and repeatable engagement. Business Impact → This reduces unexpected disconnections in vibration-heavy environments, improving safety and uptime. Application → Ideal for industrial panels and motor control centers that require reliable, rugged connections. Feature → Back wiring support with compatibility for #14-8 AWG and maximum 5-wire #10 AWG flat cable. Business Impact → Simplifies field terminations and speeds installation, reducing wiring errors and downtime. Application → Panel wiring in harsh factory environments where space is at a premium. Feature → Nylon housing with brass contacts delivers durability and corrosion resistance. Business Impact → Prolonged service life lowers maintenance costs and replacement frequency. Application → Outdoor or workshop environments with wide temperature and vibration exposure. Feature → RoHS compliant and cULus listed. Business Impact → Meets regulatory and safety requirements, reducing compliance risk and QA hurdles. Application → Compliance-critical automation projects across manufacturing facilities. Feature → NEMA configuration L23-30 with a 347/600 V rating. Business Impact → Ensures compatibility with standard industrial power distribution components, improving interchangeability. Application → Motor drives, power distribution panels, and three-phase systems in industrial automation. Feature → Compact footprint and clear cord-diameter guidance (maximum 5-wire #10 AWG flat cable). Business Impact → Easier panel packing and faster wiring checks, improving installation efficiency. Application → Space-constrained control panels and retrofit projects in manufacturing lines.
Get a Quick Quote for a Eaton AHL2330CF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AHL2330CF?
Enquire Now
FAQs
The AHL2330CF supports back wiring with compatibility for #14-8 AWG conductors and a maximum of five wires, including #10 AWG flat cable within the flat cable capability. This configuration simplifies field terminations, reduces installation time, and minimizes termination errors, making it well-suited for compact industrial panels and motor control centers.
Key specs include a 30 A amperage rating, 347/600 V voltage rating, four poles with five wires, and a NEMA L23-30 configuration. The device uses brass contacts and a nylon housing, with back wiring as the primary termination method. It is RoHS compliant and cULus listed, suitable for industrial environments.
Yes. The AHL2330CF is designed for industrial power distribution with a four-pole, five-wire layout, back wiring, and a 347/600 V rating. Its Ultra Grip locking mechanism provides high vibration resistance, which is critical in motor control centers and other demanding automation applications.
The AHL2330CF is RoHS compliant and cULus listed. RoHS ensures restricted use of hazardous substances, supporting environmental and workplace safety goals. cULus listing confirms electrical safety and compliance with applicable North American standards, reducing risk in regulated industrial environments.
The locking Ultra Grip design, brass contacts, and nylon housing contribute to durable mating force and corrosion resistance, which lowers maintenance frequency. Back wiring simplifies field terminations, reducing installation errors and downtime. Its rugged construction is well-suited for vibration and temperature fluctuations typical of industrial facilities.
