Eaton AHL2330PF Industrial Locking Plug - cULus Listed
Part Number: AHL2330PF
Quick Summary
Eaton AHL2330PF locking plug delivers secure, back-wired power connections for industrial equipment in demanding environments. In the field, vibration, heat, and loose terminations drive downtime and costly repairs unless the fit is robust and easy to install. This unit is RoHS compliant and cULus listed, helping you meet regulatory, safety, and quality requirements across plant floors. With ultra grip nylon housing and a four-pole, five-wire L23-30 configuration ready for flat cable, it simplifies wiring, reduces labor, and improves reliability for panel installations and machinery hookups.
Product Information
Extended Description
AHL2330PF Eaton: Eaton locking plug, Flat cable, #16-8 AWG, 30A, Industrial, 347/600V, Back wiring, Black, white, Ultra grip, L23-30, Four-pole, Five-wire, Nylon
Product Name

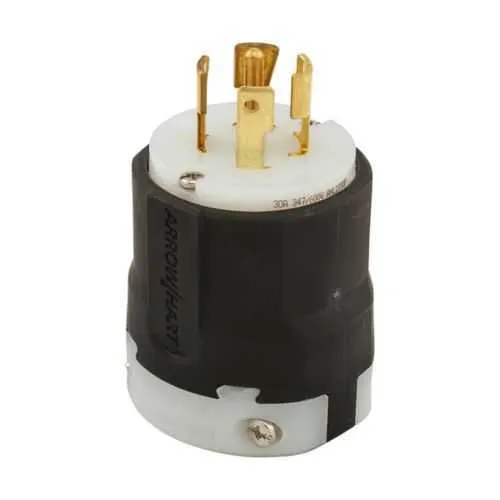

Eaton Arrow Hart ultra grip locking plug
Catalog Number
AHL2330PF
UPC
032664738760
Product Length/Depth
4.19 in
Product Height
2.31 in
Product Width
2.28 in
Product Weight
0.45 lb
Compliances
RoHS Compliant
Certifications
cULus Listed
Special features
Flat cable
Type
Locking plug
Amperage Rating
30A
Voltage rating
3ØY 347/600 V
Contact material
Brass
Application
Industrial
Device grade
Extra heavy-duty industrial specification grade
Wiring method
Back
Number of wires
5 Grounding
Number Of Poles
Four-pole
Color
Black White
Cord diameter
Maximum 5-wire #10 AWG flat cable
Material
Nylon
Operating temperature
-40 to 60 °C (-40 to 140 °F)
Allowable wire size
#14-8 AWG
NEMA configuration
L23-30
Design type
Ultra grip
Face/body material
Nylon
