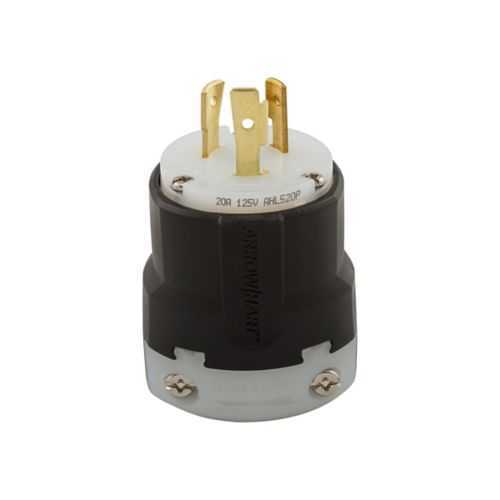

Eaton AHL520PBK Locking Plug - RoHS Compliant
Part Number: AHL520PBK
Quick Summary
An Eaton AHL520PBK locking plug is a rugged back-wiring connector designed for two-pole, three-wire industrial power applications. Engineers often struggle with secure, vibration-resistant connections that stay mated under heavy equipment cycles. This model is RoHS compliant and cULus listed, with NOM certification supporting regulatory compliance across North American markets. With a nylon Ultra Grip housing and a compact 2.38 inch footprint, it delivers reliable 20A, 125V performance in confined spaces and challenging environments. For procurement teams, the durable design reduces downtime and rework while supporting standard L5-20 configurations across industrial systems.
Product Information
Extended Description
AHL520PBK Eaton: Eaton locking plug, #14-8 AWG, 20A, Industrial, 125V, Back wiring, Black, Ultra grip, L5-20, Two-pole, Three-wire, Nylon
Product Name
Eaton Arrow Hart ultra grip locking plug
Catalog Number
AHL520PBK
UPC
032664739385
Product Length/Depth
2.38 in
Product Height
2.38 in
Product Width
2.38 in
Product Weight
0.33 lb
Compliances
RoHS Compliant
Certifications
cULus Listed NOM
Special features
Locking plug
Type
Locking plug
Amperage Rating
20A
Voltage rating
125 V
Contact material
Brass
Application
Industrial
Device grade
Extra heavy-duty industrial specification grade
Wiring method
Back
Number of wires
Grounding 3
Number Of Poles
Two-pole
Color
Black
Cord diameter
0.38-1 in (9.5 mm-25.4 mm)
Material
Nylon
Operating temperature
-40 to 60 °C (-40 to 140 °F)
Allowable wire size
#16-8 AWG
NEMA configuration
L5-20
Torque rating
For #10-14 AWG: 14-16 lbf-inch. For #8 AWG: 20 lbf-inch
Design type
Ultra grip
Face/body material
Nylon
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AHL520PBK
Eaton Specification Sheet - AHL520PBK
Feature: Ultra grip locking mechanism provides a positive, vibration-resistant connection. Benefit: Reduces unintentional disconnections and downtime in heavy-duty equipment. Application: Ideal for motors, pumps, and conveyor systems where secure power coupling is critical. Feature: Back wiring with a nylon housing enables quick, clean terminations. Benefit: Faster installation, improved insulation integrity, and easier maintenance in panel deployments. Application: Industrial control panels and field-installed power connectors. Feature: 20A, 125V rating with L5-20 configuration. Benefit: Ensures compatibility with standard industrial power circuits while delivering dependable performance. Application: Machines and tools requiring robust, secure power connections. Feature: Cord diameter range 0.38-1 in and compatibility with #16-8 AWG conductors. Benefit: Supports a wide range of cable sizes, reducing the need for multiple connector SKUs. Application: Wiring diverse equipment on the factory floor. Feature: Nylon face/body material and rugged construction. Benefit: Enhanced durability in heat, dust, and moisture-prone environments, lowering replacement costs. Application: Environments with moderate exposure to contaminants and temperature variation. Feature: Compliance with RoHS and cULus NOM certifications. Benefit: Regulatory alignment and safer, traceable procurement. Application: Purchasing for regulated facilities and international deployments.
