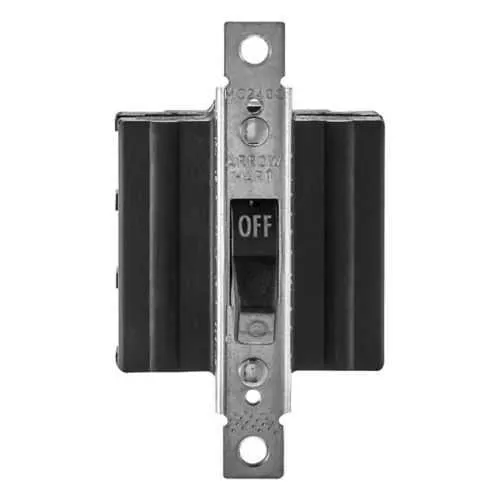

Eaton AHMC240C-1 Manual Motor Controller - cULus Listed
Part Number: AHMC240C-1
Quick Summary
The Eaton manual motor controller AHMC240C-1 safely starts and stops 2-pole, single-phase motors in industrial panels. Engineers often struggle with wiring compatibility and mounting within standard panel enclosures. It is RoHS compliant and cULus listed, with NAFTA-friendly procurement that supports global safety and cross-border sourcing. This combination delivers quick installation, predictable maintenance, and regulatory confidence, translating into reduced downtime and lower total cost of ownership for OEMs and maintenance teams.
Product Information
Extended Description
AHMC240C-1 Eaton: Eaton manual motor controller, #14-8 AWG, 40A, Industrial, Panel, 600V, Side wired screw and clamp, Maintained contact, Gray, NEMA Type 1,: SS, Two-pole, Single-phase, Toggle, Copper-alloy terminal, Single-throw, Glass-filled nylon
Product Name
Eaton manual motor controller
Catalog Number
AHMC240C-1
UPC
040893653983
Product Length/Depth
4.67 in
Product Height
4.42 in
Product Width
2.63 in
Product Weight
2.14 lb
Compliances
RoHS Compliant NAFTA
Certifications
cULus Listed
Enclosure
NEMA 1
Type
Manual motor controller
Amperage Rating
40A
Voltage rating
600 V
Number Of Poles
Two-pole
Phase
Single-phase
Enclosure material
Stainless steel
Application
Industrial
Device grade
Industrial
Wiring method
Side wired screw and clamp
Contact type
Maintained
NEMA Rating
1
Switch type
Toggle switch
Mounting method
Panel
Closure type
Maintained
Number of positions
2
Allowable wire size
#14-8 AWG
Material
Glass-filled nylon
Termination style
Side wired screw and clamp
Throw
Single-throw
Terminals
Copper-alloy, brass screw
Color
Gray
The unit is designed for panel-mounted control in industrial environments, providing a compact footprint that preserves valuable enclosure space while delivering reliable operation in NEMA 1 indoor settings. This translates to faster wiring, simpler approvals, and lower installation costs for new builds or upgrades. The 40A, 600V rating supports most standard small-motor applications, enabling scalable control across equipment lines and reducing the need for multiple controllers. Side wired screw and clamp terminals streamline field wiring and ensure secure, vibration-resistant connections, reducing the risk of loose terminations in harsh environments. The glass-filled nylon enclosure offers robust mechanical strength and chemical resistance, while copper-alloy terminals ensure durable conductors under load, contributing to longer service life and fewer field failures. Compliance to RoHS and cULus standards simplifies procurement and cross-border maintenance, while the 4.67 in length, 4.42 in height, and 2.63 in width footprint fits common control-panels without major redesigns. Overall, the AHMC240C-1 delivers efficient, code-compliant control with predictable lifecycle costs.
Get a Quick Quote for a Eaton AHMC240C-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AHMC240C-1?
Enquire Now
FAQs
AHMC240C-1 supports #14-8 AWG conductors with side wired screw and clamp terminations, enabling secure field wiring and straightforward panel integration in standard industrial enclosures.
The controller is rated for 40A and 600V, is two-pole and single-phase, with a maintained contact, suitable for panel-mounted motor control in industrial settings.
Yes, it is designed for indoor panel service in industrial environments, featuring a NEMA 1 enclosure and glass-filled nylon housing for durability and vibration resistance.
The unit is RoHS compliant and cULus listed, with NAFTA compatibility, which supports global safety standards, easier cross-border procurement, and regulatory compliance.
Maintained contact design reduces operating wear during cycling, copper-alloy terminals provide reliable connections under load, and compact dimensions simplify service access and future upgrades.
