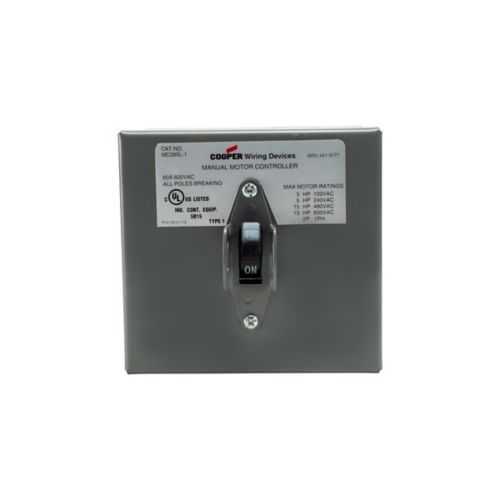

Eaton AHMC260L-1 Manual Motor Controller - cULus Listed
Part Number: AHMC260L-1
Quick Summary
Manual motor controller from Eaton enables reliable, panel-mounted motor control for industrial equipment and process lines. Installers often face limited panel space and wiring complexity that slow startups and increase wiring errors. Featuring a cULus Listed certification, NAFTA compliance, and a rugged NEMA 1 stainless steel enclosure, it balances safety and performance. With 60A at 600V and a side-wired, box-lug termination, it delivers dependable control in harsh environments, while reducing commissioning time and maintenance costs. This makes it a compelling choice for OEMs and industrial facilities pursuing reliability and cost control.
Product Information
Extended Description
AHMC260L-1 Eaton: Eaton manual motor controller, #14-4 AWG, 60A, Industrial, Panel, 600V, Side wired box lug, Maintained contact, Gray, NEMA Type 1, Enclosure: SS, Two-pole, Single-phase, Toggle, Copper-alloy terminal, Single-throw, Glass-filled nylon
Product Name
Eaton manual motor controller
Catalog Number
AHMC260L-1
UPC
040893653945
Product Length/Depth
4.67 in
Product Height
4.42 in
Product Width
2.63 in
Product Weight
1.23 lb
Compliances
NAFTA
Certifications
cULus Listed
Enclosure
NEMA 1
Type
Manual motor controller
Amperage Rating
60A
Voltage rating
600 V
Number Of Poles
Two-pole
Phase
Single-phase
Enclosure material
Stainless steel
Application
Industrial
Device grade
Industrial
Wiring method
Side wired box lug
Contact type
Maintained
NEMA Rating
1
Switch type
Toggle switch
Mounting method
Panel
Closure type
Maintained
Number of positions
2
Allowable wire size
#14-4 AWG
Material
Glass-filled nylon
Termination style
Side wired box lug
Throw
Single-throw
Terminals
Copper-alloy, brass screw
Color
Gray
Feature: The AHMC260L-1 delivers a 60A amperage rating with a 600 V maximum, configured as a two-pole, single-phase manual motor controller with a maintained contact and a toggle switch. Business impact: this combination provides decisive, reliable motor start/stop control with clear tactile feedback, reducing startup errors and unplanned stalls in critical lines. Application: ideal for panel-mounted starters on conveyors, pumps, and machine tools in industrial automation settings where consistent control is essential. Feature: NEMA 1 enclosure made from stainless steel with glass-filled nylon internal components and copper-alloy terminals. Business impact: protects sensitive circuitry from dust and grime while withstanding routine maintenance and vibrations common in manufacturing floors. Application: suitable for industrial control cabinets, service rooms, and environments where robust enclosure protection and long service life are required. Feature: Side wired box lug termination accepts #14-4 AWG conductors with copper-alloy/brass screws, simplifying field wiring and wiring harness integration. Business impact: reduces installation time, minimizes human error during terminations, and improves reliability in harsh environments. Application: ideal for retrofits and new builds where fast, secure connections are essential. Feature: Panel mounting with two-position, single-throw operation and maintained closure provides straightforward control integration and predictable startup sequences. Business impact: supports compact control panels and reduces space requirements while ensuring safety interlocks and clear state indication. Application: widely used in industrial machinery, conveyors, pumps, and line-start applications where minimal operator input is required. Feature: Global compliance and material consistency—cULus Listed, NAFTA-compliant, and industrial device grade construction—ensuring procurement efficiency and regulatory alignment. Business impact: streamlines sourcing for OEMs and integrators, reduces risk of non-compliant components, and supports maintenance planning across multi-site operations. Application: suitable for international projects and mixed-site facilities.
Get a Quick Quote for a Eaton AHMC260L-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AHMC260L-1?
Enquire Now
FAQs
AHMC260L-1 is designed for panel mounting with compact dimensions (4.67 in L, 4.42 in H, 2.63 in W) and a weight of 1.23 lb. It uses a two-pole, single-phase configuration with side-wired box lug terminations for #14-4 AWG conductors, making it a straightforward retrofit or new-build addition to common industrial panels.
The controller provides a 60A amperage rating at 600V, is two-pole and single-phase, with a maintained contact and a toggle switch. Terminations are side wired with copper-alloy terminals, compatible with #14-4 AWG conductors, enabling reliable field wiring and predictable switchgear behavior in industrial environments.
Yes. With its 60A/600V rating, two-pole single-phase design, and rugged NEMA 1 stainless steel enclosure, AHMC260L-1 is well-suited for starters and on/off control in conveyors, pumps, and other machinery in harsh factory settings, delivering dependable operation with minimal maintenance.
AHMC260L-1 carries a cULus Listed certification and NAFTA compliance, aligning with North American safety standards and cross-border trade requirements. This simplifies procurement for multi-site operations and reduces regulatory risk during installation and ongoing maintenance.
Maintenance requirements are minimal due to robust stainless steel enclosure and copper-alloy terminals. The unit’s durable construction supports longer service intervals, reducing downtime and labor costs. The improved reliability translates to a favorable return on investment for OEMs and facilities seeking consistent motor control with lower maintenance overhead.
