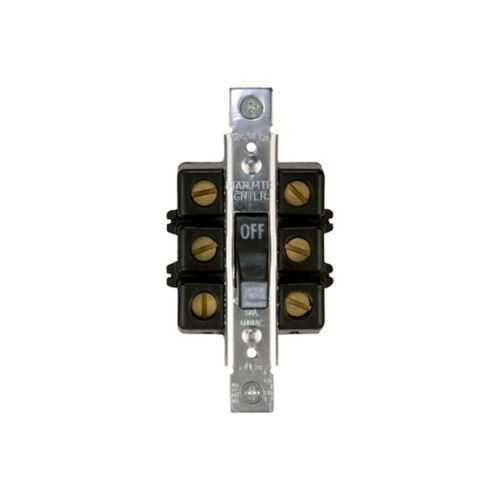

Eaton manual motor controller AHMC360L - cULus Listed
Part Number: AHMC360L
Quick Summary
Eaton manual motor controller AHMC360L is a compact switch for starting and stopping three-phase motors in industrial panels. Engineers often face wiring clutter and unreliable control in tight spaces. AHMC360L streamlines installation with a side-wired box lug design and a maintained contact mechanism. This product carries cULus Listed, RoHS Compliant, and NAFTA-ready certifications, ensuring compliance and traceability. Its panel-mount form, along with a 60A, 600V rating, supports reliable operation while reducing installation time and total cost of ownership in industrial automation projects.
Product Information
Extended Description
AHMC360L Eaton: Eaton manual motor controller, Switch only, #4 AWG, 60A, Industrial, Panel, 600V, Side wired box lug, Maintained contact, Black, Open, Three-pole, Three-phase, Toggle switch, Copper-alloy terminal, Single-throw, Glass-filled nylon
Product Name
Eaton manual motor controller
Catalog Number
AHMC360L
UPC
040893653853
Product Length/Depth
2.38 in
Product Height
4.38 in
Product Width
2.38 in
Product Weight
0.55 lb
Compliances
RoHS Compliant NAFTA
Certifications
cULus Listed
Enclosure
Open
Special features
Switch only
Type
Manual motor controller
Amperage Rating
60A
Voltage rating
600 V
Number Of Poles
Three-pole
Phase
Three-phase
Application
Industrial
Device grade
Industrial
Wiring method
Side wired box lug
Contact type
Maintained
Switch type
Toggle switch
Mounting method
Panel
Closure type
Maintained
Number of positions
2
Allowable wire size
#4 AWG
Material
Glass-filled nylon
Termination style
Side wired box lug
Throw
Single-throw
Terminals
Copper-alloy, brass screw
Color
Black
60A amperage rating handles full-load motor starts without oversizing, reducing the number of contactors and minimizing electrical stress during startup. This improves reliability and reduces downtime in high-cycle applications like conveyors and pumps. The 600V voltage rating ensures compatibility with common industrial power systems, enabling safer and more efficient motor control in many panel designs. The device’s three-pole, three-phase configuration delivers balanced switching for standard three-phase motors, reducing cross-wiring and ensuring predictable performance in automated lines. Side wired box lug terminations for #4 AWG wires simplify wiring schemes, shorten installation time, and improve connection quality in crowded control panels. The open enclosure and maintained-contact toggle switch provide straightforward, durable operation with quick manual control, supporting two-position control in panel-mounted configurations. Glass-filled nylon construction gives a robust yet lightweight housing, while copper-alloy terminals ensure solid electrical reliability and long-term resistance to vibration typical in industrial environments.
Get a Quick Quote for a Eaton AHMC360L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AHMC360L?
Enquire Now
FAQs
AHMC360L is designed for panel mounting with side wired box lug terminals that accept #4 AWG conductors. Plan your layout to keep the open enclosure accessible for maintenance and safe operation. Use copper-alloy terminals and the maintained contact style to ensure reliable on/off control in three-phase feeders up to 600 V and 60 A.
AHMC360L provides a 60A amperage rating and a 600V voltage rating for three-phase motor control. It features a three-pole, three-phase configuration, two positions, a single-throw switch, an open enclosure, maintained contact, and side wired box lug termination for #4 AWG conductors. It is built for industrial panel applications and RoHS-compliant materials.
Yes. AHMC360L is tailored for industrial control panels driving three-phase motors in equipment like conveyors and pumps. Its panel-mount design, 60A/600V ratings, and reliable maintained toggle control support frequent start/stop cycles while simplifying wiring and maintenance in crowded control enclosures.
AHMC360L carries cULus Listed certification, is RoHS Compliant, and NAFTA-ready. These certifications support safety, environmental compliance, and cross-border trade, helping manufacturers meet regulatory requirements for industrial control devices within North American markets.
The maintained contact and simple toggle operation reduce downtime during routine starts and stops, while side wired box lug terminations speed wiring and reduce installation labor. Its compact, lightweight construction saves panel space and supports longer service intervals, contributing to lower lifecycle costs and improved total cost of ownership for automated industrial systems.
