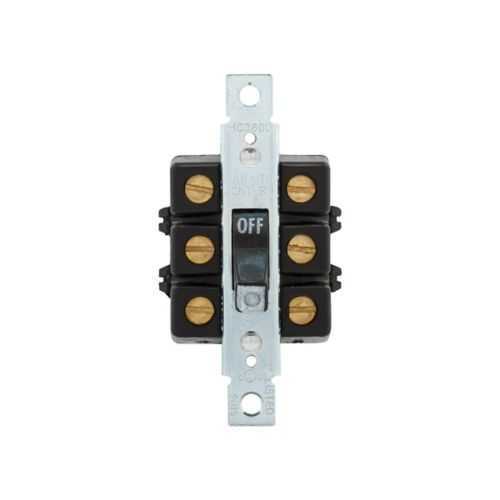

Eaton AHMC360L-1 Manual Motor Controller - cULus Listed
Part Number: AHMC360L-1
Quick Summary
Eaton manual motor controller AHMC360L-1 provides reliable motor control for industrial panel applications. This compact device is designed to start and stop three-phase motors with maintained contact, simplifying operation in critical manufacturing environments. cULus Listed safety certification, NAFTA compliance, and a NEMA 1 stainless enclosure offer robust, code-ready performance for indoor panel installations. By combining a rugged enclosure with straightforward wiring and durable materials, this controller delivers consistent operation, reduces panel wiring errors, and supports efficient maintenance workflows in production lines and processing facilities.
Product Information
Extended Description
AHMC360L-1 Eaton: Eaton manual motor controller, #4 AWG, 60A, Industrial, Panel, 600V, Side wired box lug, Maintained contact, Gray, NEMA Type 1, Enclosure: SS, Three-pole, Three-phase, Toggle switch, Copper-alloy terminal, Single-throw, Glass-filled nylon
Product Name
Eaton manual motor controller
Catalog Number
AHMC360L-1
UPC
040893653952
Product Length/Depth
4.67 in
Product Height
4.42 in
Product Width
2.63 in
Product Weight
1.63 lb
Compliances
NAFTA
Certifications
cULus Listed
Enclosure
NEMA 1
Type
Manual motor controller
Amperage Rating
60A
Voltage rating
600 V
Number Of Poles
Three-pole
Phase
Three-phase
Enclosure material
Stainless steel
Application
Industrial
Device grade
Industrial
Wiring method
Side wired box lug
Contact type
Maintained
NEMA Rating
1
Switch type
Toggle switch
Mounting method
Panel
Closure type
Maintained
Number of positions
2
Allowable wire size
#4 AWG
Material
Glass-filled nylon
Termination style
Side wired box lug
Throw
Single-throw
Terminals
Copper-alloy, brass screw
Color
Gray
Enclosure and build: The NEMA 1 stainless steel enclosure provides rugged protection against dust in indoor industrial spaces, enhancing longevity and reducing unscheduled downtime. Business impact: fewer warranty repairs and longer service intervals, translating to lower total cost of ownership. Application: ideal for panel-mounted motor control in manufacturing cells where environmental exposure is minimal but reliability is critical. Amperage and voltage: A 60A, 600V rating supports typical 3-phase motors, with a three-pole, three-phase configuration. Business impact: accommodates standard motor loads, improving uptime and reducing the need for interim solutions. Application: suitable for conveyors, pumps, and fans in process automation. Wiring and termination: Side wired box lug termination simplifies field wiring and terminal access, enabling quicker installation and easier maintenance. Business impact: reduces wiring errors and torque-related failures, speeding panel commissioning. Application: retrofit projects and new builds where space is constrained. Contact and closure: Maintained contact with a single-throw toggle switch ensures the selected position remains until actively changed, boosting operator confidence and safety. Business impact: lowers risk of unintentional restart and improves process control. Application: critical start/stop control in engineered systems. Material and compatibility: Glass-filled nylon with copper-alloy terminals delivers robust thermal performance and corrosion resistance, while compatibility with standard control wiring streamlines integration. Business impact: supports longer life in demanding environments and reduces replacement costs. Application: control panels in automated lines and heavy equipment. Certifications and compliance: cULus Listed and NAFTA compliant support cross-border procurement and regulatory alignment. Business impact: simplifies sourcing and compliance during audits and supplier qualification. Application: global manufacturing programs and multi-site deployments.
Get a Quick Quote for a Eaton AHMC360L-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AHMC360L-1?
Enquire Now
FAQs
AHMC360L-1 is designed for panel mounting with a NEMA 1 indoor enclosure and side-wired box lug termination. It supports 60A, 600V, three-phase motors and has a maintained contact arrangement, making it straightforward to integrate into existing control panels while preserving safe, positive actuation during operation.
Key specs include a 60A amperage rating, 600V maximum voltage, three-pole, three-phase operation, NEMA 1 enclosure in stainless steel, and a maintained, single-throw toggle switch with side-wired terminals. These specs ensure robust performance in typical industrial motor control tasks and compatibility with standard field wiring methods.
Yes. With a three-pole, three-phase configuration, 60A rating, and 600V capacity, AHMC360L-1 is well-suited for starting and stopping common industrial motors in conveyors, pumps, and fans. The maintained contact ensures the motor remains in the selected state until intentionally changed, improving process stability.
AHMC360L-1 is cULus Listed and NAFTA compliant, which matters for safety and cross-border procurement. These certifications simplify compliance during audits, facilitate multi-site sourcing, and reduce risk when integrating the controller into regulated industrial environments.
Side-wired box lug termination provides direct, accessible wiring points with copper-alloy terminals, which simplifies field wiring and improves torque reliability. This design reduces installation time, minimizes wiring mistakes, and supports quicker maintenance or replacement in busy panel environments.
