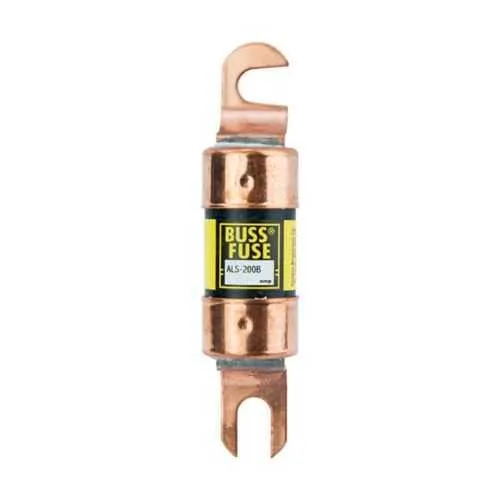

Eaton ALS-200B Fuse - 200 A, Non-indicating, 36 Vdc
Part Number: ALS-200B
Quick Summary
The ALS-200B fuse from Eaton provides non time-delay DC circuit protection for forklifts, battery chargers, and other 36 Vdc systems. Engineers often struggle with selecting the correct amp rating for high-current DC drives, risking nuisance blows or insufficient protection. While the unit is designed for demanding industrial environments, always verify the specific certifications in the official datasheet; common protections in the industry include SIL, CE, and IP-based approvals. With a 200 A rating and compact form, it integrates cleanly into standard Bussmann ALS fuse holders, reducing wiring complexity and maintenance overhead. By combining a robust 36 Vdc rating with silver-plated fuse caps for improved conductivity, Eaton delivers reliable protection that supports forklift powertrains and battery charging stations, delivering uptime and predictable maintenance costs.
Product Information
Extended Description
ALS-200B Eaton: Eaton Bussmann series ALS fuse, Non time-delay, DC circuits protection for fork lift truck and battery chargers, 200 A, Non-indicating, Standard, 36 Vdc
Product Name
Eaton Bussmann series ALS fuse
Catalog Number
ALS-200B
UPC
051712395557
Product Length/Depth
3.75 in
Product Height
1.63 in
Product Width
1.63 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
Not Applicable
Catalog Notes
Bulk
Amperage Rating
200 A
Voltage rating
36 Vdc
Packaging type
Standard
Fuse indicator
Non-indicating
Special features
Silver-plated fuse caps
ALS-200B~ONE TIME FUSE-125V-TYPE A
ALS-200B~ONE TIME FUSE-125V-TYPE A
Bussmann series Fuseology
Eaton Specification Sheet - ALS-200B
Feature Non-time-delay design → Business Impact Immediate overcurrent protection reduces arc risk and minimizes collateral damage in high-current DC circuits; Application Forklift traction and 36 Vdc battery charger circuits. Feature 200 A amperage rating → Business Impact Protects main power feeds without nuisance trips, lowering downtime and repair costs; Application Primary DC feeds in material handling equipment and charging systems. Feature 36 Vdc voltage rating → Business Impact Ensures compatibility with low-voltage DC systems while maintaining precise protection; Application Forklift battery packs and charger interfaces. Feature Silver-plated fuse caps → Business Impact Improves conductivity and corrosion resistance, extending contact life in demanding environments; Application Industrial workshops and dirty/oxidizing environments. Feature Non-indicating, standard packaging → Business Impact Simplifies replacement logistics and reduces monitoring requirements, enabling faster stocking and procurement; Application Bulk purchasing for maintenance teams and service providers. Feature Compatible form factor with Bussmann ALS holders → Business Impact Streamlines installation and enables retrofit in existing cabinets; Application Retrofit projects and new builds using ALS fuse footprints. Addressing typical objections such as non-indicating status, the design prioritizes robust protection with straightforward part replacement, while the data sheet confirms dimensions and packaging for easy planning. Industry practitioners benefit from predictable performance in forklift and battery-charger applications, with clear part identification and bulk availability for OEM and aftermarket deployments.
Get a Quick Quote for a Eaton ALS-200B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ALS-200B?
Enquire Now
FAQs
ALS-200B uses the standard Bussmann ALS fuse form factor and fits in common fuse holders used in material handling and power conversion systems. It is designed for easy replacement in existing 3.75 inch long assemblies, and the data sheet provides exact dimensional compatibility for mounting trays and clips. This minimizes retrofit time and supports quick field replacements.
The ALS-200B is a non time-delay DC fuse rated for 200 A with a 36 Vdc voltage rating. Its dimensions are 3.75 in length with 1.63 in height and width, and it has a light 0.15 lb weight. The fuse is non-indicating and packaged in standard bulk quantities, suitable for bulk procurement and service stock.
Yes. With a 200 A rating and a 36 Vdc rating, the ALS-200B is well matched for forklift battery charging circuits and similar DC power paths. Its non-time-delay characteristic provides immediate protection in fault conditions, helping to prevent damage to chargers, controllers, and traction components.
The product data provided lists not applicable for certain compliances, so verify required certifications in the Eaton datasheet or via Eaton support. In practice, customers should confirm CE, UL, IP, or SIL requirements directly with Eaton to ensure conformance for their specific region and application.
Using the ALS-200B reduces downtime by delivering reliable, immediate DC protection for high-current 36 Vdc systems such as forklifts and chargers. Its compact, bulk-packaged design lowers spares inventory costs, while silver-plated capacitive ends improve conductivity, contributing to longer component life and lower maintenance costs over the equipment lifecycle.
