Eaton AP-ABFD B-Line enclosure accessories - UL Listed
Part Number: AP-ABFD
Quick Summary
Eaton AP-ABFD B-Line enclosure accessories provide adapter plates and hardware to install Allen-Bradley 1494F and 1494D operators into B-Line enclosures. This kit reduces field installation guesswork and speeds up assembly by delivering a pre-engineered set of mounting components. The package is UL Listed and designed to meet NEMA, CSA C22.2, and UL 508A requirements, supporting safe and compliant electrical infrastructure. Built from steel for durability, it withstands industrial environments while preserving enclosure integrity. By standardizing installation, it lowers commissioning time and enables scalable configurations across multiple facilities, delivering hard-won reliability and cost efficiencies for electrical contractors and OEMs alike.
Product Information
Extended Description

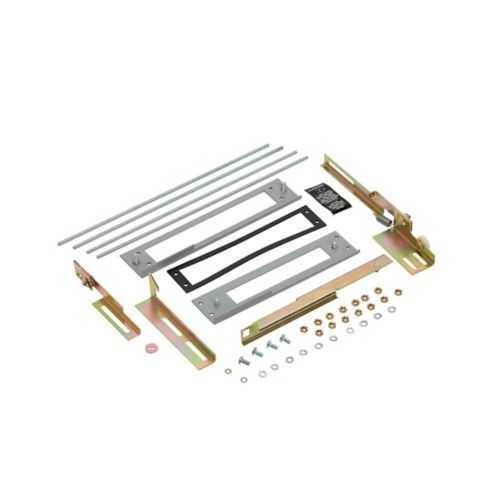

AP-ABFD Eaton: Eaton B-Line series other enclosure accessories, Includes an adapter plate and hardware for installation, Allen-Bradley†1494F and 1494D, Operator adaptor kits
Product Name
Eaton B-Line series other enclosure accessories
Catalog Number
AP-ABFD
UPC
782051085273
Product Length/Depth
4 in
Product Height
18 in
Product Width
4 in
Product Weight
4 lb
Certifications
UL Listed NEMA CSA C22.2. UL 508A
Application
Includes an adapter plate and hardware
Material
Steel
Style
Slotted cover screw
Type
Allen-Bradley†1494F and 1494D
Large ground mounted enclosure
Accessories section of Enclosure Catalog
Eaton Specification Sheet - AP-ABFD
Feature: Adapter plate and hardware are included for seamless integration of Allen-Bradley 1494F and 1494D operators. Business Impact: Reduces fieldPart number guesswork and minimizes installation errors, shortening project timelines and improving overall system reliability. Application: Suitable for Eaton B-Line enclosures where AC control interfaces rely on 1494F/1494D operator kits. Long-tail keywords: Allen-Bradley 1494F adapter, 1494D operator compatibility, B-Line enclosure accessories. Feature: UL Listed and compatible with NEMA, CSA C22.2, and UL 508A standards. Business Impact: Improves regulatory compliance, simplifies procurement, and lowers risk of non-conformance during audits. Application: Ideal for industrial environments demanding formal certification traceability. Long-tail keywords: UL Listed enclosure accessories, CSA C22.2 compliance, UL 508A safety. Feature: Steel construction for durability in harsh environments. Business Impact: Delivers long service life and reduced maintenance costs, protecting enclosure integrity and internal components. Application: Steel accessory to resist impact, corrosion, and wear in manufacturing floors. Long-tail keywords: steel enclosure components, durable enclosure accessories, rugged industrial hardware. Feature: Compact 4x4x18 inch footprint with 4 lb weight. Business Impact: Space-efficient installation enables vertical mounting in constrained control areas, optimizing panel layouts. Application: Suitable for tight electrical rooms or compact enclosures. Long-tail keywords: 4x4x18 in accessory, lightweight enclosure kit, space-saving mounting. Feature: Compatibility assurance with Allen-Bradley 1494F/1494D operator kits. Business Impact: Enables faster qualification and commissioning with pre-qualified components, reducing engineering time. Application: Recommended for OEMs integrating standard Allen-Bradley operator kits into Eaton B-Line systems. Long-tail keywords: 1494F compatibility, 1494D compatibility, OEM integration.
Get a Quick Quote for a Eaton AP-ABFD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AP-ABFD?
Enquire Now
FAQs
To install AP-ABFD, align the adapter plate with the enclosure mounting points, secure using included hardware, and attach the 1494F or 1494D operator kit to the adapter plate per the wiring diagram. Verify fit, tighten fasteners to spec, and re-check clearance around the control interfaces. This sequence minimizes misalignment and ensures a robust, compliant installation.
Yes, AP-ABFD is UL Listed. It is designed to meet and support compliance with NEMA requirements, CSA C22.2 standards, and UL 508A industrial control equipment criteria. These certifications help simplify procurement, reduce audit findings, and ensure safety and interoperability within Eaton B-Line enclosures and integrated control systems.
AP-ABFD is engineered for Eaton B-Line enclosures and for mounting Allen-Bradley 1494F/1494D operators. While the adapter plate and hardware are pre-engineered for these components, compatibility with non-B-Line enclosures is not guaranteed and may require alternate mounting solutions or adapters to maintain integrity and certifications.
The accessory measures 4 inches in length, 4 inches in width, and 18 inches in height, with an approximate weight of 4 pounds. These compact dimensions facilitate vertical or tight-panel installations, helping to optimize internal space without compromising operator access or enclosure integrity.
AP-ABFD requires only standard inspection during routine maintenance: check fasteners for torque, verify adapter plate alignment, and inspect for corrosion or wear on the steel plate. Replacement is straightforward with the same catalog number; ensure any replacements maintain UL Listed status and compatibility with 1494F/1494D operators.
