Eaton AP-SD Enclosure Accessories - UL Listed
Part Number: AP-SD
Quick Summary
AP-SD Enclosure Accessories by Eaton provide a ready-to-use adapter plate and mounting hardware for B-Line enclosures in industrial electrical installations. This solution addresses the common challenge of aligning plates and fittings across variable depth enclosures, reducing field adjustments and rework. The accessories meet UL Listed, NEMA, CSA C22.2, and UL 508A requirements, reinforcing safety and compliance across critical control panels. By standardizing the adapter plate with compatible Square D Class 9422 components, your team gains predictable assembly times and improved reliability. In practice, engineers and procurement professionals benefit from reduced inventory complexity and smoother installation workflows, while maintaining stringent electrical construction standards for industrial facilities.
Product Information
Extended Description

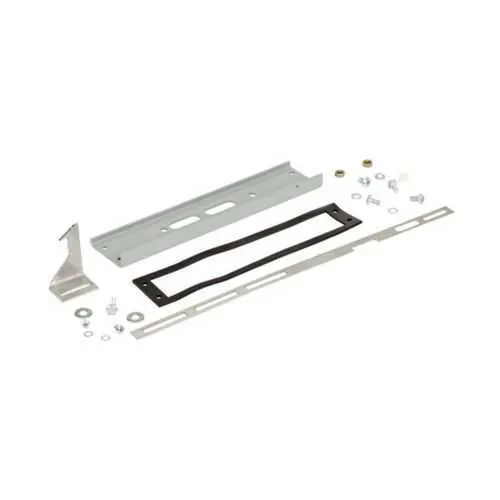

AP-SD Eaton: Eaton B-Line series other enclosure accessories, Includes an adapter plate and hardware for installation, Square D†Class 9422, (variable depth only), Operator adaptor kits
Product Name
Eaton B-Line series other enclosure accessories
Catalog Number
AP-SD
UPC
782051032413
Product Length/Depth
0.75 in
Product Height
16.5 in
Product Width
0.75 in
Product Weight
1.577 lb
Certifications
UL Listed NEMA CSA C22.2. UL 508A
Application
Includes an adapter plate and hardware
Material
Steel
Style
Terminal strap
Type
Square D†Class 9422, (variable depth only)
Large ground mounted enclosure
Accessories section of Enclosure Catalog
Eaton Specification Sheet - AP-SD
Adapter plate and hardware are included with AP-SD, enabling fast, tool-ready installation and reducing field sourcing costs. This directly lowers total installed cost while improving first-pass accuracy on B-Line series enclosures. Compatibility with Square D Class 9422, specifically variable depth configurations, ensures a precise fit and eliminates the need for custom adapters in most panel builds. By using steel construction and a terminal strap-oriented design, the solution delivers robust mechanical performance in harsh industrial environments, supporting long service life and consistent electrical performance. The model’s compact dimensions—16.5 in height with a shallow 0.75 in profile and 0.75 in width—facilitate installation in tight spaces without sacrificing strength. Weight of 1.577 lb aids handling during mid-assembly and field upgrades. These features collectively streamline procurement, standardize assemblies, and reduce audit risk through verified UL, NEMA, CSA C22.2, and UL 508A compliance. Industry practitioners appreciate the predictable, repeatable results when deploying Eaton B-Line enclosure accessories across multiple sites.
Get a Quick Quote for a Eaton AP-SD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AP-SD?
Enquire Now
FAQs
AP-SD is designed specifically for Square D Class 9422 enclosures with variable depth. It includes an adapter plate and hardware to ensure a precise, secure fit, minimizing the need for field modification and helping maintain enclosure integrity during installation.
AP-SD provides a ready-to-install adapter plate and hardware, eliminating the need to source separate components. Its compatibility with variable depth configurations reduces trial fittings, speeding up panel assembly and reducing labor costs on site.
Yes, AP-SD carries UL Listed certification and aligns with NEMA, CSA C22.2, and UL 508A standards. This certification suite supports compliance across industrial control panels and enhances audit readiness for electrical installations.
AP-SD features a 16.5 in height with a 0.75 in depth and 0.75 in width, and weighs 1.577 lb. These compact yet sturdy dimensions enable installation in tight spaces while preserving structural integrity and ease of handling during assembly and maintenance.
Using AP-SD standardizes adapter plate assemblies, reduces field errors, shortens installation times, and lowers total installed cost. The included hardware and compatibility with Square D 9422 ensure repeatable, compliant builds across multiple sites, supporting faster project delivery and easier maintenance.
