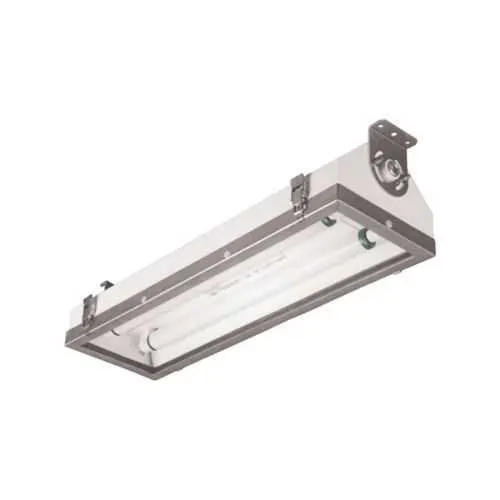

Eaton APA42670L Pauluhn AllPro Linear Fluorescent IP66
Part Number: APA42670L
Quick Summary
APA42670L is a hazardous-area, linear fluorescent light fixture designed for industrial facilities requiring safe, durable illumination. In challenging environments, downtime and maintenance costs spike with unreliable fixtures in classified locations—this unit minimizes risk with IP66 sealing and rugged aluminum construction. It aligns with NEC/CEC standards and hazardous-location ratings Class I Division 2, Class II Division 1, and Class III, alongside NEMA 4 and IP66 for weather and dust resistance. With 28W operation and a 4 ft two-lamp layout, you gain energy efficiency and easy installation for standard wall or ceiling mounting. Lamps are included to minimize field stocking and downtime. Its polycarbonate lens provides impact resistance in dusty environments.
Product Information
Extended Description
APA42670L Eaton: Eaton Crouse-Hinds series Pauluhn AllPro APA linear fluorescent light fixture,3/4" entry ,50/60 Hz,4 ft lamp,Fluorescent,Flat,Polycarbonate lens,T5 mini bi-pin,Aluminum,2-lamp,Lamps included,Standard wall/ceiling,120-277 Vac,28W
Product Name
Eaton Crouse-Hinds series Pauluhn AllPro APA linear fluorescent light fixture
Catalog Number
APA42670L
UPC
662276375147
Product Length/Depth
55.5 in
Product Height
6 in
Product Width
9.75 in
Product Weight
23 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lens type
Flat
Material
Aluminum
Lamp length
4 ft
Number of lamps
2-lamp
Light type
T5 mini bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Standard wall/ceiling
Entry size
3/4"
Wattage
28W
Lens material
Polycarbonate
Special features
Lamps included
Crouse-Hinds series Pauluhn AllPro Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn AllPro Hazardous Area Linear Fluorescent catalog page
IF LBL1518 - Pauluhn AllPro Linear Fluorescent - Flat Lens, Compact Fixture
IF LBL1518 - Pauluhn AllPro Linear Fluorescent - Flat Lens, Compact Fixture
Eaton Specification Sheet - APA42670L
Rugged corrosion-resistant construction combined with IP66 and NEMA 4 protection translates to reliable performance in dusty or wet industrial environments, reducing maintenance cycles and unexpected downtime. The 2-lamp, 4 ft layout delivers efficient illumination at a modest 28W, delivering observable energy savings over higher-wattage fixtures and lowering total cost of ownership. With standard wall/ceiling mounting and a 3/4" entry, installation is straightforward, enabling rapid retrofits in existing facilities. The polycarbonate flat lens complements an aluminum housing to resist impact and weathering, supporting longer service intervals in demanding plants. Lamping is built for T5 mini bi-pin fluorescent lamps, and lamps are included, simplifying onsite stocking and startup. The fixture is rated for hazardous locations, ensuring code compliance and safer operation in chemical, oil, or gas processing environments.
Get a Quick Quote for a Eaton APA42670L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton APA42670L?
Enquire Now
FAQs
APA42670L supports standard wall or ceiling mounting with a 3/4" entry, enabling straightforward retrofits and seamless integration into existing conduits and housings in hazardous environments.
The fixture operates at 120–277 VAC, 50/60 Hz, with a total wattage of 28W and a 2-lamp configuration using T5 mini bi-pin lamps, suitable for 4 ft lamp length.
Yes. The unit is rated for hazardous locations with NEC/CEC compliance, Class I Division 2, Class II Division 1, and Class III, plus a NEMA 4 enclosure and IP66 protection for harsh environments.
Official documentation includes the Eaton specification sheet APA42670L and installation sheets such as IF LBL1518, available on Eaton’s site for detailed mounting, wiring, and safety instructions.
Lamps are included, reducing field stocking time; the flat polycarbonate lens and aluminum housing provide durability against dust and impact; the IP66/NEMA 4 rating minimizes environmental ingress and maintenance frequency.
