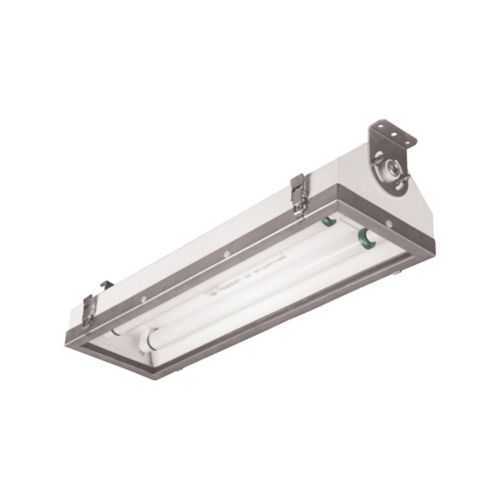

Eaton APA43172 Linear Fluorescent Light Fixture - IP66
Part Number: APA43172
Quick Summary
APA43172 Eaton linear fluorescent light fixture provides robust illumination for hazardous-location industrial environments. When plants operate in dusty, wet, or explosive zones, routine lighting downtime disrupts production. This fixture carries NEC/CEC compliance and is rated for Class I, Division 2; Class II, Division 1; and Class III, with IP66 protection and a NEMA 4 enclosure. Paired with pendant mounting, a 4 ft lamp length, 120-277 VAC, 50/60 Hz, and a 32 W draw, it helps lower maintenance costs while ensuring consistent hazardous-area illumination.
Product Information
Extended Description
APA43172 Eaton: Eaton Crouse-Hinds series Pauluhn AllPro APA linear fluorescent light fixture,3/4" entry ,50/60 Hz,4 ft lamp,Fluorescent,Flat,Polycarbonate lens,T8 bi-pin,Aluminum,3-lamp,Pendant,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn AllPro APA linear fluorescent light fixture
Catalog Number
APA43172
UPC
662276374478
Product Length/Depth
55.5 in
Product Height
6 in
Product Width
9.75 in
Product Weight
24 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III
NEMA Rating
4
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lens type
Flat
Material
Aluminum
Lamp length
4 ft
Number of lamps
3-lamp
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Pendant
Entry size
3/4"
Wattage
32W
Lens material
Polycarbonate
Crouse-Hinds series Pauluhn AllPro Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn AllPro Hazardous Area Linear Fluorescent catalog page
IF LBL1516 - Pauluhn AllPro Linear Fluorescent - Flat Lens
IF LBL1516 - Pauluhn AllPro Linear Fluorescent - Flat Lens
Eaton Specification Sheet - APA43172
Feature: 3-lamp, 4 ft fluorescent configuration. Business Impact: Higher lumen output and redundancy reduce dark zones in large hazardous areas, improving worker safety and productivity. Application: Chemical plants, refineries, and mining sites seeking reliable long-interval maintenance. Feature: IP66, NEMA 4 enclosure with hazardous-area classifications. Business Impact: Superior dust and water ingress protection translates to longer service life and lower repair costs in rugged environments. Application: Offshore platforms and food-processing facilities with challenging ambient conditions. Feature: Pendant mounting with 3/4" entry and durable aluminum housing. Business Impact: Flexible installation and corrosion resistance minimize installation time and maintenance tasks. Application: Ceiling-free or suspended layouts in harsh environments. Feature: 120-277 VAC, 50/60 Hz operation. Business Impact: Flexible power compatibility reduces wiring complexity and stock, accelerating project timelines. Application: Mixed-power facilities and retrofit projects. Feature: Polycarbonate lens and 32 W wattage. Business Impact: Lens durability plus energy-efficient operation lowers replacement frequency and energy costs. Application: Industrial workshops, chemical plants, and processing lines where clear, reliable illumination is essential. Feature: 55.5 in overall length with aluminum body. Business Impact: Large-format lighting reduces the number of fixtures needed for coverage, cutting total installed cost. Application: Long-span corridors, open-process areas, and hazard zones demanding uniform light.
Get a Quick Quote for a Eaton APA43172
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton APA43172?
Enquire Now
FAQs
APA43172 supports pendant mounting with a 3/4" entry, designed for 4 ft lamp configurations and T8 bi-pin lamps. It is compatible with 120-277 VAC mains at 50/60 Hz, enabling flexible installation in Class I, II, and III hazardous areas. This makes retrofits and new builds straightforward in plant floors, refineries, and offshore facilities.
The fixture is a 3-lamp, 4 ft fluorescent unit drawing 32 W with a T8 bi-pin lamp type. It features a polycarbonate flat lens, aluminum housing, and an ingress protection rating of IP66, along with a NEMA 4 enclosure. Operating at 120-277 VAC and 50/60 Hz, it delivers reliable illumination across broad hazardous-area applications.
Yes. APA43172 is designed for Hazardous/Classified Locations and carries NEC/CEC compliance with Class I, Division 2; Class II, Division 1; and Class III ratings, plus IP66 and NEMA 4 protection. These certifications ensure safe operation in industrial facilities with flammable vapors, dust, or chemical exposure.
With a rugged aluminum housing, polycarbonate lens, and IP66 enclosure, the fixture resists dust, water, and impacts, reducing unscheduled failures. The 4 ft, 55.5 in overall length provides broad coverage and fewer fixtures, lowering maintenance visits. The 32 W power draw also contributes to ongoing energy savings without sacrificing light quality.
The combination of durable construction, compliant hazardous-location ratings, and energy-efficient 32 W operation translates to lower maintenance costs, longer replacement intervals, and improved uptime. Flexible mounting and wide voltage compatibility simplify installation and retrofit projects, delivering faster time-to-light and reduced total cost of ownership in demanding facilities.
