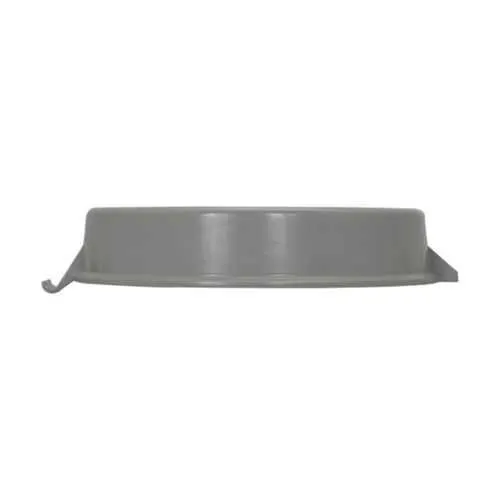

Eaton APM20 Champ mounting module - 20 mm trade size
Part Number: APM20
Quick Summary
The Eaton APM20 Champ mounting module provides pendant mounting for VMV luminaires in industrial environments. Installers often struggle with geometry, corrosion resistance, and quick-field mounting, which this copper-free aluminum module helps address. While specific CE/SIL/IP certifications are not listed in the provided data, the product is rated for Ordinary/Non-Hazardous Locations, offering clear compliance context for many facilities. This mounting module supports easy installation, reduces weight, and aligns with Eaton's Champ family for reliable, scalable lighting deployments. For procurement and integration teams, the APM20 streamlines stocking and compatibility across VMV luminaire families, improving project timelines and on-site certainty.
Product Information
Extended Description
APM20 Eaton: Eaton Crouse-Hinds series Champ mounting module, Copper-free aluminum, Pendant mount, 20 mm trade size, Used with VMV and VMV high wattage series luminaires
Product Name
Eaton Crouse-Hinds series Champ mounting module
Catalog Number
APM20
UPC
662276458291
Product Length/Depth
13 in
Product Height
3.5 in
Product Width
11.3 in
Product Weight
2.2 lb
Area classification
Ordinary/Non-Hazardous Locations
Used with
VMV and VMV high wattage series luminaires
Mounting Method
Pendant
Material
Copper-free aluminum
Trade size
20 mm
Crouse-Hinds series Champ VMV HID catalog page - 200W-400W
Crouse-Hinds series Champ VMV HID catalog page - 200W-400W
Eaton Specification Sheet - APM20
Copper-free aluminum construction reduces weight and corrosion risk, delivering a durable, easy-to-handle mounting solution that lowers lifecycle costs and simplifies field installation for VMV luminaires in rugged environments. Feature → Business Impact → Application: The reduction in material weight translates to easier handling during ceiling or pendant installations, speeding up commissioning and reducing worker fatigue on lift-heavy projects. Application: Ideal for VMV HID high-wattage systems where reliable support and long-term corrosion resistance matter. Feature → Business Impact → Application: 20 mm trade size and pendant mounting enable direct compatibility with Champ VMV hardware, minimizing adapter kits and inventory complexity. Application: Suitable for standard industrial ceilings and suspended layouts in non-hazardous areas. Feature → Business Impact → Application: Copper-free aluminum resists corrosion in humid or dusty environments, delivering lower maintenance requirements and fewer service interruptions. Application: Cost-effective for long-term facility operations. Feature → Business Impact → Application: Dimensions of 13 in length, 11.3 in width, 3.5 in height and weight of 2.2 lb support predictable mounting envelopes and safer load distribution. Application: Helps engineers plan support structures and ensure code-compliant installations. Feature → Business Impact → Application: Area classification Ordinary/Non-Hazardous Locations provides clear suitability for general industrial spaces, reducing the need for specialized enclosures. Application: Quick deployment across multiple bays with VMV luminaires. Feature → Business Impact → Application: Documentation references, including VMV catalog pages and Eaton spec sheet, streamline procurement and field referencing. Application: Accelerates project timelines and reduces misconfigurations during asset creation.
Get a Quick Quote for a Eaton APM20
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton APM20?
Enquire Now
FAQs
Yes. The APM20 Champ mounting module is designed as a pendant mounting accessory for Eaton Crouse-Hinds Champ VMV HID luminaires. It uses copper-free aluminum, supports a 20 mm trade size, and aligns with the VMV high-wattage series. Dimensions and weight are compatible with standard mounting envelopes, and installation is streamlined for field teams.
Key specs include 20 mm trade size, pendant mounting method, copper-free aluminum construction, and a 13 inch length, 11.3 inch width, 3.5 inch height profile. Product weight is 2.2 pounds. It’s intended for ordinary/non-hazardous locations and is used with VMV and VMV high-wattage luminaires, providing a compact, durable mounting solution.
The data lists Ordinary/Non-Hazardous Locations as the area classification, indicating suitability for general industrial spaces that do not present hazardous atmospheres. It should be installed in environments where VMV HID luminaires require a robust pendant mount and corrosion resistance, without specialized IP or IEC hazard certifications noted in the provided specs.
The provided data specifies area classification as Ordinary/Non-Hazardous Locations. Specific certifications such as CE, IP, or SIL are not listed in the supplied data. Users should verify local codes and request Eaton documentation or product sheets for any additional compliance markings relevant to their installation site.
Begin by confirming VMV luminaire compatibility and verifying pendant mounting compatibility with the Champ system. Install the APM20 mounting module to the mounting surface using the appropriate hardware, align with the VMV high-wattage luminaire, and secure the luminaire assembly. Finally, perform functional tests and inspect for alignment, weight distribution, and clearance to ensure safe operation.
