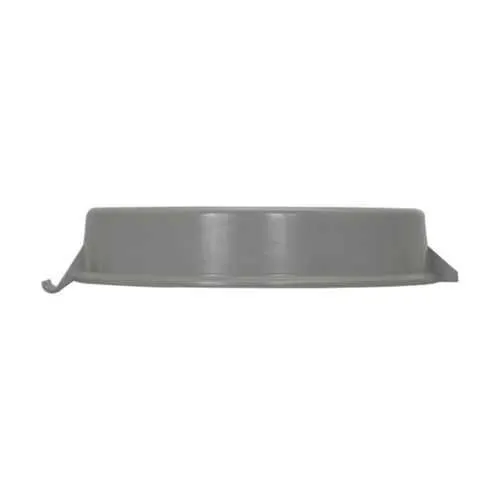

Eaton APM25 Mounting Module - Copper-free aluminum
Part Number: APM25
Quick Summary
APM25 mounting module from Eaton provides pendant mounting for VMV and VMV high-wattage luminaires in industrial settings. Field install times and mounting compatibility are common pain points that delay projects. This solution supports ordinary/non-hazardous locations and copper-free aluminum construction, streamlining procurement and reducing field risk. Secondary benefits include VMV high wattage compatibility and pendant mounting versatility for constrained spaces. With a 25 mm trade size and pendant mounting, it simplifies field assembly and reduces hoist-time for installation crews. Engineers benefit from clear compatibility with VMV luminaires and documented install standards, helping procurement align with project specs. In fast-paced environments, having a single, reliable mounting solution reduces regressions and supports on-time delivery.
Product Information
Extended Description
APM25 Eaton: Eaton Crouse-Hinds series Champ mounting module, Copper-free aluminum, Pendant mount, 25 mm trade size, Used with VMV and VMV high wattage series luminaires
Product Name
Eaton Crouse-Hinds series Champ mounting module
Catalog Number
APM25
UPC
662276458314
Product Length/Depth
13 in
Product Height
3.5 in
Product Width
11.3 in
Product Weight
2.2 lb
Area classification
Ordinary/Non-Hazardous Locations
Used with
VMV and VMV high wattage series luminaires
Mounting Method
Pendant
Material
Copper-free aluminum
Trade size
25 mm
Crouse-Hinds series Champ VMV HID catalog page - 50W-175W
Crouse-Hinds series Champ VMV HID catalog page - 50W-175W
Eaton Specification Sheet - APM25
Pendant mounting with a 25 mm trade size standardizes attachment points across VMV luminaires, reducing part mismatch and field rework. This translates to faster install times and fewer callbacks. In practice, installers appreciate the predictable interface when wiring and mounting align with VMV fixtures in tight spaces. Copper-free aluminum construction offers corrosion resistance and lighter weight, reducing maintenance needs and easing handling during installation. This combination translates to longer service life and lower lifecycle costs for end users. Compatibility with VMV and VMV high wattage luminaires ensures procurement consistency and eliminates misfits, simplifying project planning and reducing stock variety. The mounting module is well suited for ordinary locations, decreasing the need for specialized equipment in typical industrial environments. Detailed dimensions and weight support accurate space planning and safer installations, while the pendant design minimizes interference with other building systems and cabling. Overall, APM25 enables predictable installation, improved workflow efficiency, and measurable cost savings across multiple projects.
Get a Quick Quote for a Eaton APM25
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton APM25?
Enquire Now
FAQs
To install the APM25, position the pendant mounting module to align with the VMV luminaire interface, secure with standard mounting hardware, and ensure the 25 mm trade size interface is fully seated. Check that the aluminum body is clean and free of debris, then route cabling before final fixture orientation. Always follow Eaton installation sheets for torque specs and safety clearance.
Key specifications include a 25 mm trade size, pendant mounting, copper-free aluminum construction, 13 in length, 11.3 in width, 3.5 in height, and a weight of 2.2 lb. It is used with VMV and VMV high wattage luminaires and carries an ordinary/non-hazardous area classification. UPC is 662276458314 and catalog number is APM25.
APM25 is specified for Ordinary/Non-Hazardous Locations. There is no listed certification for use in hazardous or classified locations, so it should be deployed only in non-hazardous industrial environments in accordance with the provided area classification.
APM25 is designed for VMV and VMV high wattage series luminaires. This ensures a standardized mounting interface across these luminaires, reducing procurement complexity and installation errors when upgrading or expanding VMV HID lighting in a facility.
By standardizing pendant mounting for VMV luminaires, APM25 reduces field tuning and rework, shortening install times and lowering labor costs. Copper-free aluminum offers corrosion resistance, potentially extending service life and reducing maintenance intervals. Standardization also simplifies procurement, inventory management, and project planning across multiple sites.
