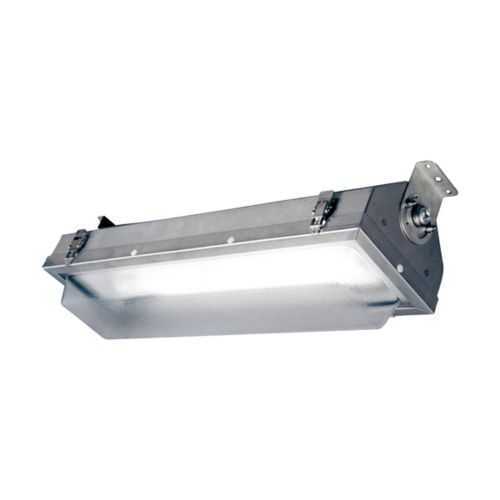

Eaton APS22270L Linear Fluorescent Light Fixture - IP66
Part Number: APS22270L
Quick Summary
APS22270L is a hazardous-area linear fluorescent light fixture designed for industrial facilities. In harsh environments, maintenance or failed lighting can halt operations and escalate safety risks. It carries IP66, NEMA 4X ratings and NEC/CEC compliance for Hazardous/Classified Locations, providing reliable illumination in challenging conditions. With a 2-lamp 40W configuration and standard wall/ceiling mounting, it minimizes downtime and simplifies procurement. This combination delivers durable, compliant industrial lighting that helps reduce total cost of ownership while supporting safer, better-controlled work environments.
Product Information
Extended Description
APS22270L Eaton: Eaton’s Crouse-Hinds series Pauluhn AllPro APS linear fluorescent light fixture,3/4" entry ,50/60 Hz,2 ft lamp,Fluorescent,Flat,Polycarbonate lens,CF 2G11,304 stainless steel,2-lamp,Lamps included,Standard wall/ceiling,120-277 Vac,40W
Product Name
Eaton Crouse-Hinds series Pauluhn AllPro APS linear fluorescent light fixture
Catalog Number
APS22270L
UPC
662276613256
Product Length/Depth
31.5 in
Product Height
6 in
Product Width
9.75 in
Product Weight
21 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lens type
Flat
Material
304 stainless steel
Lamp length
2 ft
Number of lamps
2-lamp
Light type
CF 2G11
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Standard wall/ceiling
Entry size
3/4"
Wattage
40W
Lens material
Polycarbonate
Special features
Lamps included
Crouse-Hinds series Pauluhn AllPro Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn AllPro Hazardous Area Linear Fluorescent catalog page
IF LBL1516 - Pauluhn AllPro Linear Fluorescent - Flat Lens
IF LBL1516 - Pauluhn AllPro Linear Fluorescent - Flat Lens
Eaton Specification Sheet - APS22270L
IP66/NEMA 4X protection delivers reliable performance in wet, dusty, and corrosive environments, reducing maintenance cycles and downtime in hazardous locations. The 304 stainless steel housing provides superior corrosion resistance, extending service life in chemical and outdoor industrial settings and lowering replacement costs. The 2-lamp CF 2G11 fluorescent setup delivers efficient illumination with predictable lumen maintenance, supporting productivity in long-shift operations and lowering energy consumption per fixture. A flat polycarbonate lens offers impact resistance and easy cleaning, improving fit-and-forget reliability in dirty facilities and washdown areas. Operating on 120-277 VAC at 50/60 Hz, APS22270L enables universal installation across facilities, reducing the need for multiple part numbers and simplifying stocking. Standard wall/ceiling mounting and a 3/4" entry streamline retrofit projects, enabling faster installation and reduced field labor. Lamps are included, further shortening project timelines and ensuring immediate readiness.
Get a Quick Quote for a Eaton APS22270L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton APS22270L?
Enquire Now
FAQs
Yes. APS22270L is rated for Hazardous/Classified Locations with NEC/CEC compliance, IP66 protection, and a NEMA 4X rating, making it appropriate for wet, dusty, and challenging industrial environments.
The fixture uses a 2-lamp fluorescent configuration (CF 2G11), rated at 40W total, and operates on 120-277 Vac at 50/60 Hz, with lamps included for immediate use.
The unit measures 31.5 in in length, 9.75 in in width, and 6 in in height, with a weight of 21 lb, making it suitable for standard mounting footprints.
Industries with chemical exposure, washdown needs, and hazardous locations—such as oil & gas, chemical processing, mining, and manufacturing—benefit from its corrosion resistance (304 stainless steel) and robust IP66/NEMA 4X protection.
It features standard wall/ceiling mounting, a 3/4" entry, a polycarbonate flat lens, and lamps included, enabling faster retrofit or new-install projects with reduced field labor.
