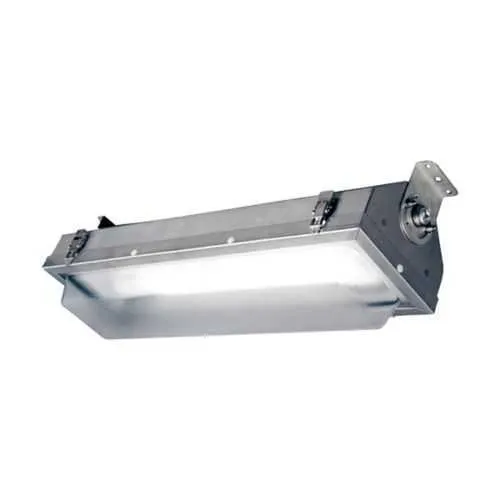

Eaton APS42570LTGWZT Linear Fluorescent Light - IP66
Part Number: APS42570LTGWZT
Quick Summary
Eaton APS42570LTGWZT is a hazardous-area linear fluorescent light fixture for industrial facilities. Maintenance downtime and unreliable protection in harsh environments plague many sites, driving higher labor costs and safety risk. It meets NEC/CEC standards, IP66 protection, and a NEMA 4X rating to help ensure regulatory compliance and rugged performance in demanding locations. With 120–277 Vac operation and a 4 ft, 2-lamp configuration, it delivers consistent illumination while simplifying wiring and service. Lamps are included, and the fixture features dual safety cable attachment points and a multi-point terminal block to support quick, safe retrofits and ongoing maintenance.
Product Information
Extended Description
APS42570LTGWZT Eaton: Eaton Crouse-Hinds series Pauluhn AllPro APS linear fluorescent,3/4" entry,4 ft,Flat,Tempered glass lens,T5HO mini bi-pin,316 SS,2-lamp,Lamps,dual safety cable attachment,multi-point terminal block,Standard wall/ceiling,120-277 Vac,54W
Product Name
Eaton Crouse-Hinds series Pauluhn AllPro APS linear fluorescent light fixture
Catalog Number
APS42570LTGWZT
UPC
662276388925
Product Length/Depth
55.5 in
Product Height
6 in
Product Width
9.75 in
Product Weight
34 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lens type
Flat
Material
316 stainless steel
Lamp length
4 ft
Number of lamps
2-lamp
Light type
T5HO mini bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Standard wall/ceiling
Entry size
3/4"
Wattage
54W
Lens material
Tempered glass
Special features
Lamps included, dual safety cable attachment points, multi-point terminal block
Crouse-Hinds series Pauluhn AllPro Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn AllPro Hazardous Area Linear Fluorescent catalog page
IF LBL1518 - Pauluhn AllPro Linear Fluorescent - Flat Lens, Compact Fixture
IF LBL1518 - Pauluhn AllPro Linear Fluorescent - Flat Lens, Compact Fixture
Eaton Specification Sheet - APS42570LTGWZT
Feature: Hazardous-area rating and area classification aligned with NEC/CEC. Business Impact: Inherent safety and regulatory compliance reduce risk and documentation effort for audits. Application: Chemical plants and oil/gas facilities require robust protection and clear standards adherence. Feature: IP66 ingress protection, NEMA 4X enclosure, and 316 stainless steel housing. Business Impact: Exceptional durability in washdown and corrosive environments, extending service life and lowering replacement cycles. Application: Marine terminals, chemical processing, and other harsh industrial sites demand resilient construction. Feature: 54W, 2-lamp, 4 ft configuration with T5HO mini bi-pin lamps. Business Impact: Efficient illumination with reduced energy use and simplified stocking due to dual-lamp design. Application: Linear runs in manufacturing bays and service corridors benefit from dependable output. Feature: Flat tempered glass lens and 3/4" entry with standard wall/ceiling mounting. Business Impact: Easy cleaning, impact resistance, and flexible installation across spaces. Application: Retrofit projects and new builds in constrained environments. Feature: Dual safety cable attachment points and multi-point terminal block. Business Impact: Enhanced installation safety and straightforward wiring, minimizing field errors. Application: Hazardous locations where safety and reliability are non-negotiable.
Get a Quick Quote for a Eaton APS42570LTGWZT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton APS42570LTGWZT?
Enquire Now
FAQs
For hazardous locations, use the 3/4" entry to route wiring into the standard wall/ceiling mounting. The fixture includes dual safety cable attachment points and a multi-point terminal block to simplify wiring and secure mounting. Ensure power is within the 120–277 Vac range and follow NEC/CEC guidelines during retrofit or new-install projects.
The fixture operates at 120–277 Vac with 50/60 Hz frequency and uses a 4 ft, 2-lamp configuration with 54W total wattage. It employs T5HO mini bi-pin lamps and provides a flat tempered glass lens with a 55.5 in overall length. This design supports efficient, dependable lighting for long runs in industrial settings.
Yes. The product is rated for Hazardous/Classified Locations and carries NEC hazardous ratings including Class I, Division 2, Class II, Division 1, and Class III, along with a NEMA 4X rating. This makes it appropriate for many restricted areas in chemical and petrochemical environments when installed per the standard guidelines.
Industries such as chemical processing, oil and gas, water treatment, and heavy manufacturing benefit from its IP66 protection, 316 stainless construction, and 4X NEMA rating. Compliance with NEC/CEC standards and hazardous-location classifications supports regulatory audits and safe, durable operation in washdown or high-dirt environments.
The fixture’s 316 stainless steel housing, tempered glass lens, and IP66/NEMA 4X protection reduce corrosion and maintenance cycles in harsh spaces. With lamps included and a robust installation design, downtime is minimized during retrofits, contributing to lower total cost of ownership through longer service life and fewer field-rework efforts.
