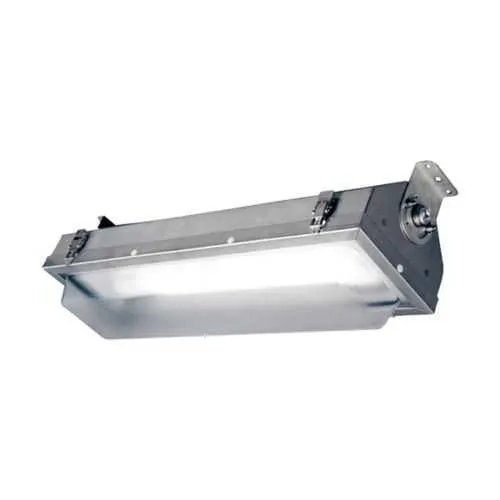

Eaton APS42870 Linear Fluorescent Light Fixture - IP66
Part Number: APS42870
Quick Summary
Eaton APS42870 Linear Fluorescent Light Fixture provides reliable hazardous-area illumination for industrial facilities. In harsh environments, conventional lighting often fails due to moisture, dust, or corrosion, driving maintenance costs upward. This unit carries IP66 protection, NEMA 4X enclosure ratings, and NEC hazardous-location certifications (Class I, Division 2; Class II, Division 1; Class III) to safeguard operations. Designed for 120–277 VAC input and 50/60 Hz operation, it integrates with standard power systems and supports compliant, low-maintenance hazardous-area lighting across plant floors and processing lines.
Product Information
Extended Description
APS42870 Eaton: Eaton’s Crouse-Hinds series Pauluhn AllPro APS linear fluorescent light fixture,3/4" entry ,50/60 Hz,4 ft lamp,Fluorescent,Flat,Polycarbonate lens,T12HO RDC,304 stainless steel,2-lamp,Standard wall/ceiling,120-277 Vac,48W
Product Name
Eaton Crouse-Hinds series Pauluhn AllPro APS linear fluorescent light fixture
Catalog Number
APS42870
UPC
662276388949
Product Length/Depth
55.5 in
Product Height
6 in
Product Width
9.75 in
Product Weight
34 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lens type
Flat
Material
304 stainless steel
Lamp length
4 ft
Number of lamps
2-lamp
Light type
T12HO RDC
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Standard wall/ceiling
Entry size
3/4"
Wattage
48W
Lens material
Polycarbonate
Crouse-Hinds series Pauluhn AllPro Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn AllPro Hazardous Area Linear Fluorescent catalog page
IF LBL1516 - Pauluhn AllPro Linear Fluorescent - Flat Lens
IF LBL1516 - Pauluhn AllPro Linear Fluorescent - Flat Lens
Eaton Specification Sheet - APS42870
Feature: 4 ft, 2-lamp, 48W configuration; Business Impact: delivers ample illumination with relatively low energy consumption, reducing operating costs while maintaining code-compliant visibility; Application: ideal for long runs in factory lanes and service corridors. Feature: IP66 and NEMA 4X-rated enclosure; Business Impact: protects against water, dust, and corrosion, lowering maintenance frequency and downtime in washdown or chemical environments; Application: kitchens, chemical plants, and outdoor-rated indoor spaces. Feature: 304 stainless steel construction; Business Impact: exceptional corrosion resistance extends fixture life in harsh atmospheres; Application: offshore, marine, and chemical processing facilities. Feature: Flat polycarbonate lens; Business Impact: resists impact and cracking, enhancing safety and reducing replacement cycles; Application: high-traffic production zones. Feature: Standard wall/ceiling mounting; Business Impact: simplifies retrofit and new installations, enabling faster project delivery; Application: plant retrofits and new builds.
Get a Quick Quote for a Eaton APS42870
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton APS42870?
Enquire Now
FAQs
Yes. The APS42870 is designed for standard wall or ceiling mounting and is certified for hazardous locations, including Class I, Division 2, Class II, Division 1, and Class III. Its rugged 4 ft, 2-lamp configuration fits typical retrofit or new-install projects, and the 3/4 inch entry simplifies wiring while maintaining enclosure integrity.
APS42870 operates at 120–277 VAC with a 50/60 Hz supply. It uses a 4 ft, 2-lamp fluorescent setup with a total wattage of 48W and employs T12HO RDC lamps. This combination supports reliable performance across a wide voltage range and common building power systems without special transformers.
Yes. The fixture conforms to NEC/CEC standards and provides hazardous-location ratings including Class I, Division 2, Class II, Division 1, and Class III, along with IP66 ingress protection and a NEMA 4X-rated enclosure. These certifications ensure safe operation in wet, dusty, and corrosive environments typical of processing facilities.
APS42870 is ideal for chemical plants, oil and gas facilities, water/wastewater treatment, mining environments, and other hazardous or classified locations. Its 304 stainless steel construction, polycarbonate lens, and robust sealing provide durable lighting for washdowns, splash zones, and corrosive atmospheres while meeting strict safety codes.
The fixture’s corrosion-resistant 304 stainless steel build, IP66/NEMA 4X protection, and shatter-resistant polycarbonate lens reduce replacement cycles and maintenance downtime. Coupled with a compact 48W consumption and a 4 ft two-lamp design, it lowers energy use and inventory complexity, delivering faster payback through improved reliability and safer, compliant illumination.
