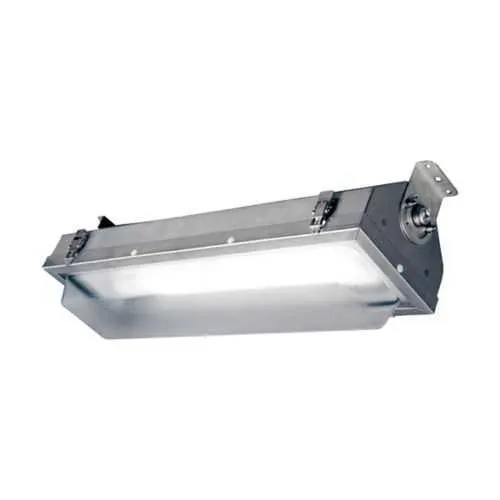

Eaton APS42870EM1L Light Fixture - IP66 Hazardous Locations
Part Number: APS42870EM1L
Quick Summary
The Eaton APS42870EM1L is a hazardous-location linear fluorescent light fixture for harsh industrial spaces. Maintenance downtime, corrosion, and safety concerns in chemical plants, refineries, or offshore facilities slow production and drive up costs. This luminaire carries IP66 protection, NEMA 4X enclosure, and NEC/CEC compliance to meet stringent industry standards in Class I, Division 2 environments. Its robust 304 stainless steel body and polycarbonate lens resist chemicals and impact while delivering dependable illumination. With a standard 2-lamp 4 ft configuration and 120–277 VAC operation plus emergency back-up, it supports reliable operation and easier upgrades. The AllPro APS series combines durability with easy installation for durable, cost-efficient hazardous location lighting in demanding facilities.
Product Information
Extended Description
APS42870EM1L Eaton: Eaton Crouse-Hinds series Pauluhn AllPro APS linear fluorescent,3/4" entry,4 ft,Flat,Polycarbonate lens,T12HO RDC,304 SS,2-lamp,Emergency battery back-up,one lamp,277V max,lamps included,Standard wall/ceiling,120-277 Vac,48W
Product Name
Eaton Crouse-Hinds series Pauluhn AllPro APS linear fluorescent light fixture
Catalog Number
APS42870EM1L
UPC
662276373952
Product Length/Depth
55.5 in
Product Height
6 in
Product Width
9.75 in
Product Weight
34 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lens type
Flat
Material
304 stainless steel
Lamp length
4 ft
Number of lamps
2-lamp
Light type
T12HO RDC
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Standard wall/ceiling
Entry size
3/4"
Wattage
48W
Lens material
Polycarbonate
Special features
Emergency battery back-up ballast, one lamp, 277V maximum, lamps included
Crouse-Hinds series Pauluhn AllPro Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn AllPro Hazardous Area Linear Fluorescent catalog page
IF LBL1518 - Pauluhn AllPro Linear Fluorescent - Flat Lens, Compact Fixture
IF LBL1518 - Pauluhn AllPro Linear Fluorescent - Flat Lens, Compact Fixture
Eaton Specification Sheet - APS42870EM1L
304 stainless steel construction provides excellent corrosion resistance, extending fixture life in chemical and coastal environments, reducing maintenance frequency and total cost of ownership. The flat polycarbonate lens offers impact resistance while maintaining clear illumination, improving worker safety and visibility in harsh plants. A 4 ft, 2-lamp configuration with T12HO RDC ballast delivers reliable light output with familiar ballast technology, enabling easier replacement and compatibility with existing systems. The fixture operates on 120–277 VAC and includes emergency battery back-up, ensuring critical areas remain illuminated during outages and supporting code compliance for safety-critical zones. IP66 ingress protection and NEMA 4X enclosure shield components from dust, water spray, and corrosive atmospheres, enabling installation in exposed locations without enclosure degradation. Standard wall/ceiling mounting and a 3/4" entry simplify retrofits and new installs, reducing installation time and cost while delivering robust hazardous-location performance.
Get a Quick Quote for a Eaton APS42870EM1L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton APS42870EM1L?
Enquire Now
FAQs
The APS42870EM1L supports standard wall/ceiling mounting with a 3/4" entry, simplifying retrofits and new installations in hazardous areas. Its 55.5" length and 34 lb weight help with alignment and handling, while the 304 stainless steel body resists corrosive environments. Ensure wiring to 120–277 VAC and follow NEC/CEC guidelines for Class I, Division 2 installations.
This fixture carries IP66 ingress protection and a NEMA 4X enclosure, along with NEC/CEC compliance and hazardous-location ratings including Class I, Division 2 (and related classifications). These certifications support safe operation in chemical plants, refineries, and other harsh locations.
Yes, the APS42870EM1L includes an emergency battery back-up ballast with one lamp and supports up to 277V maximum. Lamps are included, enabling quick deployment in safety-critical areas where emergency illumination is required during power outages.
Ideal for hazardous/classified locations in chemical plants, oil and gas facilities, and offshore environments, the fixture combines corrosion-resistant 304 stainless steel, polycarbonate lens, IP66/NEMA 4X protection, and a durable 4 ft, 2-lamp configuration. These features deliver reliable illumination, longer service life, and reduced maintenance in demanding applications.
The combination of stainless steel durability, protective enclosure, and emergency back-up reduces downtime and replacement costs while improving safety compliance. The 4 ft two-lamp setup delivers solid lumen output per fixture, enabling fewer units to cover required area, ultimately lowering energy and maintenance expenses in harsh environments.
