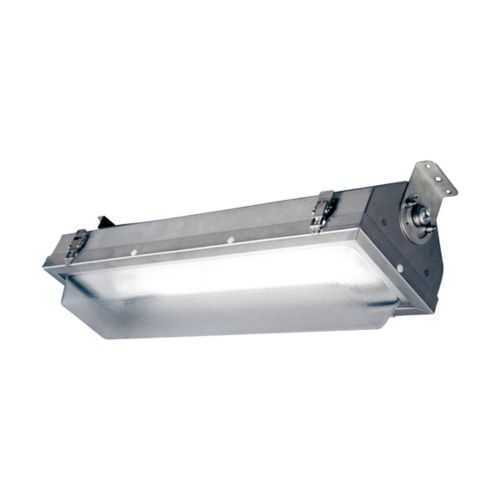

Eaton APS42870EM1WZ Linear Fluorescent Light - IP66
Part Number: APS42870EM1WZ
Quick Summary
Eaton APS42870EM1WZ linear fluorescent light fixture provides reliable illumination for hazardous industrial spaces. In demanding environments, maintenance access and fixture durability become pain points, and downtime can cost safety and productivity. It carries NEC/CEC compliance, IP66 ingress protection, and NEMA 4X ruggedness for Class I, Division 2 and related hazardous locations, ensuring safe operation in harsh conditions. With 2 lamps, 48W, and emergency battery back-up, it delivers energy efficiency, uptime, and code-compliant performance for critical plant areas, while remaining compatible with standard wall and ceiling mounting and a broad 120-277 VAC supply. This translates to lower maintenance cycles and improved safety margins for industrial facilities.
Product Information
Extended Description
APS42870EM1WZ Eaton: Eaton Crouse-Hinds series Pauluhn AllPro APS linear fluorescent,3/4" entry,4 ft,Flat,Polycarbonate lens,T12HO RDC,316 SS,2-lamp,Emergency battery back-up,one lamp,277V max,dual safety cable attachment,Standard wall/ceiling,120-277 Vac,48W
Product Name
Eaton Crouse-Hinds series Pauluhn AllPro APS linear fluorescent light fixture
Catalog Number
APS42870EM1WZ
UPC
662276388994
Product Length/Depth
55.5 in
Product Height
6 in
Product Width
9.75 in
Product Weight
34 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lens type
Flat
Material
316 stainless steel
Lamp length
4 ft
Number of lamps
2-lamp
Light type
T12HO RDC
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Standard wall/ceiling
Entry size
3/4"
Wattage
48W
Lens material
Polycarbonate
Special features
Emergency battery back-up ballast, one lamp, 277V maximum, dual safety cable attachment points
Crouse-Hinds series Pauluhn AllPro Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn AllPro Hazardous Area Linear Fluorescent catalog page
IF LBL1516 - Pauluhn AllPro Linear Fluorescent - Flat Lens
IF LBL1516 - Pauluhn AllPro Linear Fluorescent - Flat Lens
Eaton Specification Sheet - APS42870EM1WZ
Feature: Hazardous location rating and rugged enclosure. Business impact: NEC/CEC compliance with IP66 and NEMA 4X protection reduces risk of noncompliance, outages, and maintenance costs in Class I, Division 2 environments. Application: Petrochemical plants, refineries, and chemical processing areas requiring dependable illumination in harsh conditions. Feature: 4 ft long, 2-lamp 48W design. Business impact: Energy efficiency and lower total cost of ownership through reduced wattage per lumen and easier installation in long runs. Application: Assembly lines, washdown corridors, and large work spaces needing uniform coverage. Feature: Emergency battery back-up ballast (one lamp, 277V max). Business impact: Maintains critical lighting during power loss, improving safety and egress readiness. Application: Safety corridors and exit paths in industrial facilities. Feature: 316 stainless steel housing with flat polycarbonate lens. Business impact: Superior corrosion resistance and impact durability, extending service life in washdown and chemical environments. Application: Food processing, pharmaceutical manufacturing, and marine facilities. Feature: Flexible power and mounting compatibility (120-277 VAC, 50/60 Hz, standard wall/ceiling entry 3/4 inch). Business impact: Simplifies retrofits and reduces installation time across facilities. Application: Facility upgrades and retrofits to meet evolving codes and space constraints.
Get a Quick Quote for a Eaton APS42870EM1WZ
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton APS42870EM1WZ?
Enquire Now
FAQs
This unit is 4 ft long with a 3/4 inch entry and standard wall or ceiling mounting. It uses a flat polycarbonate lens and 316 stainless steel housing, suitable for Class I, Division 2 locations. It operates on 120-277 VAC and supports a two-lamp arrangement, making retrofit fits straightforward in constrained spaces while meeting NEC/CEC requirements.
The APS42870EM1WZ includes an emergency battery back-up ballast designed to sustain illumination during power interruptions. It supports one lamp at up to 277V, ensuring critical pathways remain lit for safety and compliance. This feature reduces downtime during outages and supports safe evacuation in emergency scenarios.
Yes. The fixture is certified for Hazardous/Classified Locations with NEC/CEC standards, and it carries an IP66 ingress protection rating and a NEMA 4X enclosure. It is suitable for Class I, Division 2 installations, providing the reliability required in petrochemical, pharmaceutical, and other demanding environments.
Ideal for petrochemical plants, refineries, water treatment, washdown zones, and other hazardous locations, the APS42870EM1WZ delivers durable corrosion resistance with 316 stainless steel housing and a flat polycarbonate lens. Its 4 ft 2-lamp design provides uniform illumination across long corridors, work cells, and maintenance areas while meeting strict safety and compliance standards.
With a robust 34 lb housing and a 4 ft, 2-lamp configuration, the fixture minimizes replacement cycles in demanding environments. Its emergency back-up reduces downtime during outages, while the broad 120-277 VAC range simplifies integration across facilities. Overall, expect lower maintenance costs, improved safety, and faster uptime in hazardous-area lighting applications.
