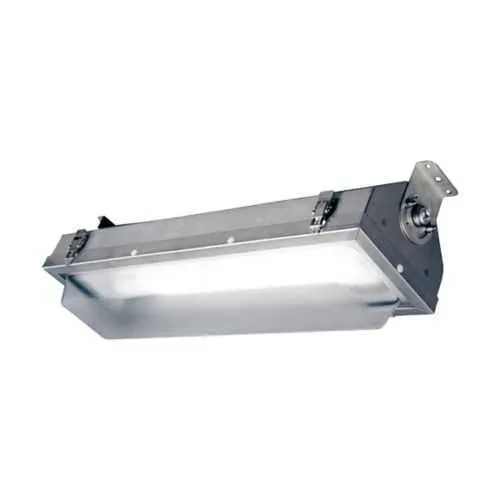

Eaton APS43170SM Linear Fluorescent Light Fixture - IP66
Part Number: APS43170SM
Quick Summary
The Eaton APS43170SM is a hazardous-location linear fluorescent light fixture for industrial facilities. Keeping lighting reliable in harsh environments is a persistent challenge, causing downtime and costly maintenance. It meets IP66 and NEMA 4X ruggedness and NEC/CEC compliance for hazardous/classified locations, providing confidence for code-ready installations. With a 32W, 4 ft lamp length, three lamps, and 120–277 VAC operation, the unit reduces spare parts needs and simplifies procurement while delivering consistent illumination. In addition, its 304 stainless steel body and shock-mount design stand up to corrosion and vibration in demanding industries such as oil and gas, chemical processing, and manufacturing.
Product Information
Extended Description
APS43170SM Eaton: Eaton Crouse-Hinds series Pauluhn AllPro APS linear fluorescent light fixture,3/4" entry,50/60 Hz,4 ft lamp,Flat,Polycarbonate lens,T8 bi-pin,304 stainless steel,3-lamp,Shock mount,Standard wall/ceiling,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn AllPro APS linear fluorescent light fixture
Catalog Number
APS43170SM
UPC
662276420649
Product Length/Depth
55.5 in
Product Height
6 in
Product Width
9.75 in
Product Weight
29.3 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lens type
Flat
Material
304 stainless steel
Lamp length
4 ft
Number of lamps
3-lamp
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Standard wall/ceiling
Entry size
3/4"
Wattage
32W
Lens material
Polycarbonate
Special features
Shock mount
Crouse-Hinds series Pauluhn AllPro Hazardous Area Linear Fluorescent brochure
Crouse-Hinds series Pauluhn AllPro Hazardous Area Linear Fluorescent catalog page
IF LBL1516 - Pauluhn AllPro Linear Fluorescent - Flat Lens
IF LBL1516 - Pauluhn AllPro Linear Fluorescent - Flat Lens
Eaton Specification Sheet - APS43170SM
Feature: 3-lamp, 4 ft fluorescent fixture with T8 bi-pin lamps and 32W power. Business Impact: Delivers reliable, high-quality illumination with energy efficiency, reducing operating costs and the need for frequent lamp replacements. Application: Hazardous-location work areas, long production lines, and maintenance corridors demanding consistent light levels. Long-tail keywords: hazardous location lighting, 4 ft fluorescent fixture, T8 bi-pin, energy-efficient lighting. Feature: 304 stainless steel housing with flat polycarbonate lens. Business Impact: Provides excellent corrosion resistance and durable washdown capability, lowering maintenance cycles and downtime. Application: Chemical plants, offshore platforms, and equipment rooms exposed to moisture and chemicals. Long-tail keywords: IP66 fluorescent fixture, NEMA 4X housing, corrosion-resistant lighting. Feature: IP66 and NEMA 4X ratings with NEC/CEC compliance. Business Impact: Ensures code-compliant installation in Class I, Division 2 and other hazardous locations, reducing risk and project delays. Application: Refineries, loading docks, and process areas requiring rugged enclosures. Long-tail keywords: hazardous locations compliance, NEC/CEC certified lighting, Class I Division 2 lighting. Feature: Wide voltage operation 120–277 VAC and 50/60 Hz. Business Impact: Minimizes inventory needs and enables flexible sourcing across sites with different power standards. Application: Multi-site manufacturing and maintenance facilities. Long-tail keywords: broad voltage range fixtures, 120-277 Vac lighting. Feature: Standard wall/ceiling mounting, 3/4" entry, shock-mount. Business Impact: Simple, secure installation with adaptable mounting options and vibration resistance, reducing commissioning time. Application: Retrofit and new-build environments in harsh spaces. Long-tail keywords: wall/ceiling mount lighting, shock-mounted fixtures, electrical installation efficiency.
Get a Quick Quote for a Eaton APS43170SM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton APS43170SM?
Enquire Now
FAQs
APS43170SM supports standard wall or ceiling mounting and includes a shock-mount option for vibration-prone environments. With a 3/4" entry, it accommodates typical conduit configurations found in process plants, ensuring straightforward integration with existing electrical boxes and raceways while maintaining its hazardous-location integrity.
The unit uses a 32W, 4 ft lamp configuration across three lamps with T8 bi-pin lamps. It operates on a wide voltage range of 120–277 VAC and supports 50/60 Hz, enabling flexible supply across international sites and reducing the need for multiple stockKeeping units for different power standards.
Yes. The fixture is rated for Hazardous/Classified Locations, including Class I, Division 2, and Class II, Division 1, with Class III compatibility as documented. This makes it appropriate for areas with flammable atmospheres, ensuring safety while meeting NEC/CEC requirements.
Key certifications include IP66 ingress protection, NEMA 4X enclosure rating, and NEC/CEC standards compliance. It also specifies hazardous-area area classifications and a robust stainless steel enclosure, all of which support reliable operation in washdown environments and regulated facilities.
The 304 stainless steel housing, flat polycarbonate lens, and shock-mounted design resist corrosion and vibrations, extending service life. With a 32W, 4 ft, 3-lamp configuration and wide voltage compatibility, you gain lower energy and replacement costs, simplified spares management, and predictable maintenance budgeting in harsh industrial settings.
